Top Quality Cemented Carbide Plates for Cutting Tools

Get top quality cemented carbide plates for cutting tools directly from our factory. We offer durable and reliable products for all your cutting needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
carbide plates
Type
Wear Part
Material
Tungsten Carbide
Certification
ISO 9001:2008, SGS
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Main Using Purpose
Metal Machining and Wear Parts
Advantage
Stable Performance and Reasonable Price
Features
Excellent Wear Resistant and High Hardness
Color
Iron Grey
Delivery Time
5~15 Days
Trial Order
Accepted
Business Type
Manufacturer and Trading
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
None
Origin
Zhuzhou City, Hunan, China

Product Description

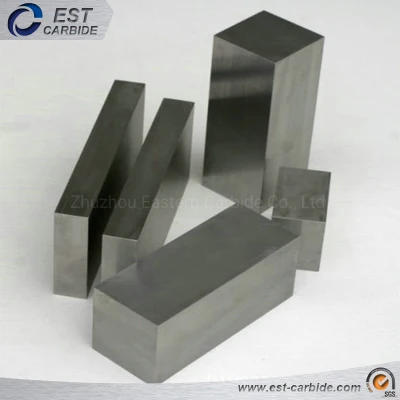

Top Quality Cemented Carbide Plates for Cutting Tools

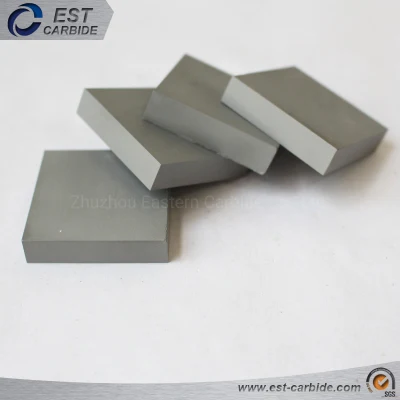

Tungsten Carbide plates for wear parts:
Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.

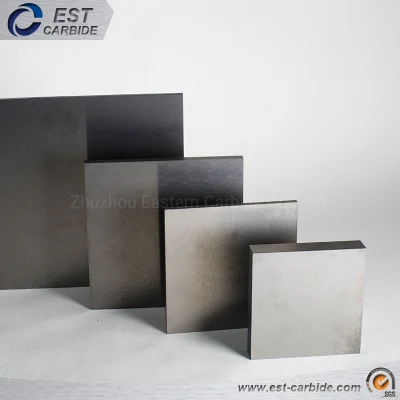

Some size of tungsten carbide plates in K10, K20, K30, K40
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.

Top Quality Cemented Carbide Plates for Cutting Tools

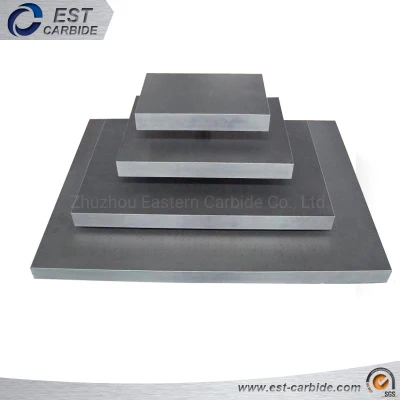

We provide a wide range of tungsten carbide plates in different dimensions, also have other shapes, like plates with shape cutting angles.


Grade list for tungsten carbide plates:
ISO Grade Co% Density(g/cm3) Hardness Bending Strength(N/mm2) Compression Strength(N/mm2) Grain Size(μm)
HRA
(ISO3738)
E10S
6 14.8 90.5 2900 5100 4.0
E20S 13.5 14.0 90 3600 5200 1.5
E30 12 14.25 90 3500 4900 1.8
E40 12.5 14.1 89.5 3600 4600 2.0
E50 14.0 14..0 88.5 3700 4500 2.0
E60 15 13.9 87.5 3500 4200 <0.5
We also have the normal grades for carbide plates, like K10, K20, K30, K40.

How to select the grade for tungsten carbide plates:
Top Quality Cemented Carbide Plates for Cutting Tools

We also can produce the customized carbide plates, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.

Top Quality Cemented Carbide Plates for Cutting Tools


Top Quality Cemented Carbide Plates for Cutting Tools
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Top Quality Cemented Carbide Plates for Cutting Tools
Top Quality Cemented Carbide Plates for Cutting Tools
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.



Top Quality Cemented Carbide Plates for Cutting Tools


Packing:
A. Standard packing
    1).Plastic boxes with foam inside and carton outside.
    2).Paper boxes with foam inside and carton outside.
    3).Inner boxes/packing material inside and plywood box outside (for heavy product).

B. Customized packing available: We can do special packing based on client's requirements..
