Tungsten Carbide Bushing for High Pressure Water Pumps

Tungsten Carbide Bushing for High Pressure Water Pumps - We are a factory specializing in manufacturing high-quality tungsten carbide bushings for water pumps.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Quick Information
  • Our Advantages
  • Detailed Photos
  • Quality Grade
  • Suitable for
  • Quality Control
  • About Oston Carbide
Overview

Basic Info.

Origin
Zhuzhou, China
Production Capacity
20 Metric Tons Per Month

Product Description



Quick Information


Product Name Mirror Finish Surface Carbide Bushings
Material  Tungsten Carbide
Place of origin Zhuzhou,China
Grade YG8, YG15, YN10, YN13
Surface treatment    Blank,ground,polished as requirement
MOQ 10 PCS
Trade Terms FOB,CNF,CIF,CPT,DDU,DDP
Payment terms 30% in advance, balance paide before shipment.


Our Advantages

1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process.
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.

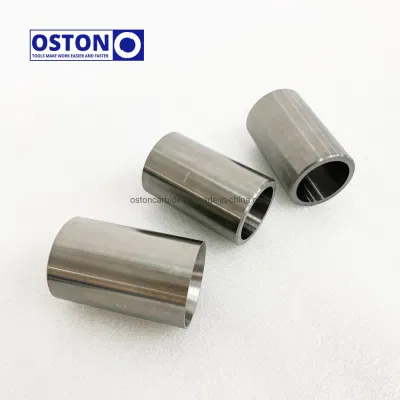

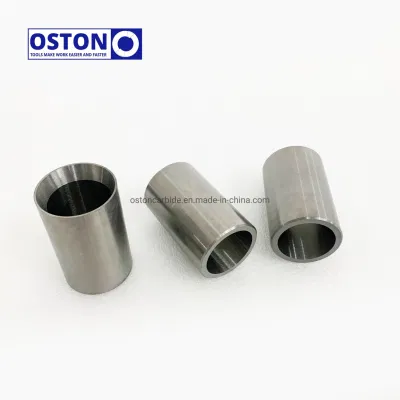

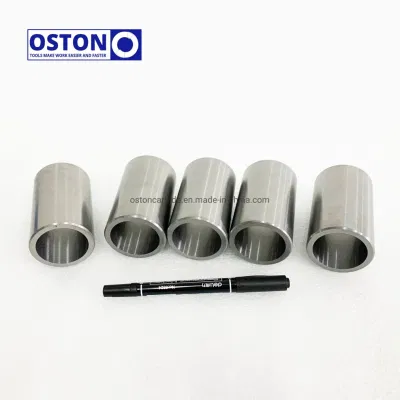

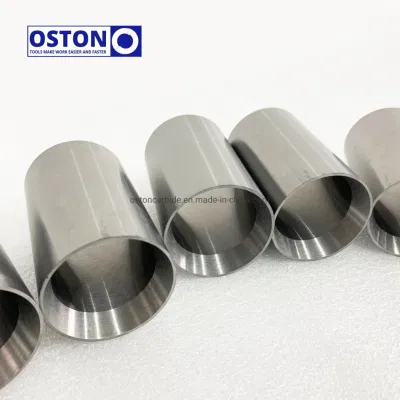

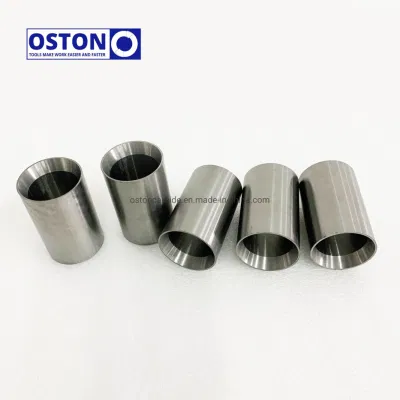

Detailed Photos

Tungsten Carbide Bushing for High Pressure Water Pumps
Tungsten Carbide Bushing for High Pressure Water Pumps
Tungsten Carbide Bushing for High Pressure Water Pumps

Tungsten Carbide Bushing for High Pressure Water Pumps
Tungsten Carbide Bushing for High Pressure Water Pumps
Tungsten Carbide Bushing for High Pressure Water Pumps



Quality Grade

In order to achieve the best possible performance, it's very important to choose the suitable carbide grade for your application, our experienced engineers can assist you with your design and material selection ensuring the best wear for your particular need.


Grade Density T.R.S. MPa Performance & application recommended
YG6A 14.95 1800

 Fine grain alloy, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals alloys,

 semi-finishing and finishing of hardened steel, alloy steel.

YG8 14.8 2020

 High strength in use, impact and shock resistance higher than YG6, but wear resistance

 and cutting speed comparatively lower

YN13 14.2 2800  Corrossion Resistant, widle used in chemical and petrol oil pumps
YG12   14.7 2580

 High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed

comparatively lower.Roughing of cast irons, nonferrous metals and their alloys as well as non metallic

 materials at low cutting speed.

YG15 14.2 2900  Conventional wear resistance, high bending strength,used for steel alloy etc.





Suitable for



Tungsten carbide bushing is a part to protect important components.they are widly used on wear parts,such as sealing parts within valve,carbide bushings are installed in the valve stem cap trap in order to reduce the valve leakage, sealing bearing sleeves as protecting parts to undertake wear between the bearing and the shaft seat to avoid the friction between the shaft and the hole increases and so on.



Tungsten carbide bushing can withstand prolonged load with high chemical stability, it is resistance to alkali, alcohol,hydrocarbons, acid, oil, detergent, water (sea water), and they are absolutly non-toxic, tasteless, non-rust characteristics,which widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.

Quality Control

1. Material Milling and Desiccation
Dust-Free Workshop: All staff must wear specified uniforms before entering the workshop.

2. Isostatic Suppressing for carbide rods
Machinery Automation:Automatic manipulators are installed for all of our TPA suppressing facilites,which is more accurate on weight controlling and reduces production cost.

3. HIP Sintering
Strict rules of operation: All operation need be conducted strictly as process rules.

4. Quality checking of trial production.
New testing piece: Testing piece must be produced before a new batch of material is used for mass production to ensure the stable
quality.

5. Grinding and Machining
We own all facilitess for the whole carbide machining system to ensure the delivery in time,including surface grinding lathe,external grinding lathe,centerless grinding lathe,wire cutting machine,EDM sparkling machine.

6. quality checking of finished products.
Double Quality Checking: Inspection for semi-finished and finished products are both essential,products with defects will never be shipped.

7. Packing and delivery
Safe package and delivery: Kraft paper for the first layer,bubble plastic for the second layer,gaps are filled with sponge,We focus on every package detail to ensure that clients receive our goods with good looks and good quality.
Tungsten Carbide Bushing for High Pressure Water Pumps



About Oston Carbide

Q:Is OSTON CARBIDE producer ?
A:OSTON CARBIDE is a exporting subsidiary for our parent company,which is a manufacturer of tungsten carbide and diamond wheels since 1998,you will get both manufacturing prices and good services here.

Q:What kind of products and service could OSTON supply ?
A:OSTON has been specializing in carbide solutions for clints more than 20 countries,which includes design and manufacturing of various carbide parts.

Q: Is there any certification for products of OSTON ?
A: Yes,All products from OSTON have been endorsed with the ISO9001:2015 certification.

Q:Can a drawing be supplied to OSTON for further design ?
A: Yes,we encourage sending as more information as possible,drawing and sketch are welcome for specific quotation,even a sample could be sent to OSTON for further design.

Q:When can I get the offer after sending inquiry ?
A:Our sales operates between 9:00 am to 6:00 pm Monday to Friday,Offer is usually supplied within 24 hours after we got your inquiry,if you are urgent to get the price,please call us or send email so that we'll take it as priority.

Q:How long time I need spend on waiting for my goods ?
A:Usual delivery time is 15-18 days after 30% down payment is received,please confirm with us before placing the order if you need urgent turnaround delivery.
