Basic Info.
Keywords
Tungsten Carbide Bushings and Sleeve
Shape
Sleeve, Flanged, Spacer
Grade
Yg8 Yg6 Yg10X Yn6 Yn8 Yn9
Size
Customized Size
Chemical Composition
Wc and Co
Bush Types
Washer
Transport Package
Standard or Customized
Specification
ISO9001 SGS
Trademark
LIHUA
Origin
Zhuzhou, China (Mainland)
Product Description

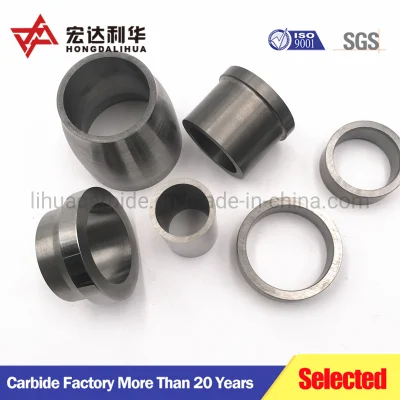

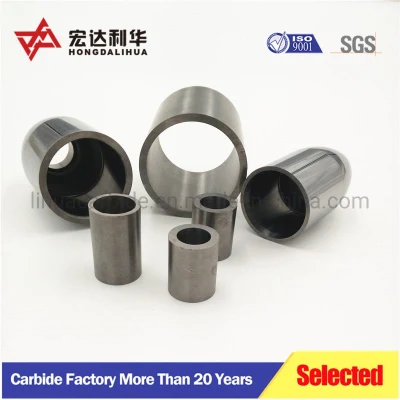

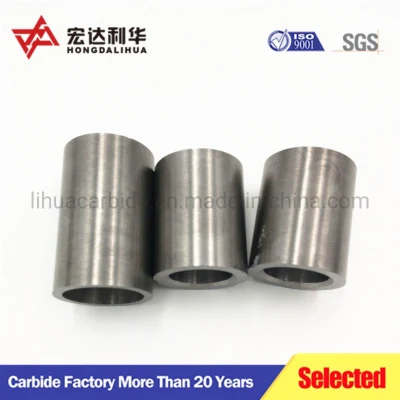

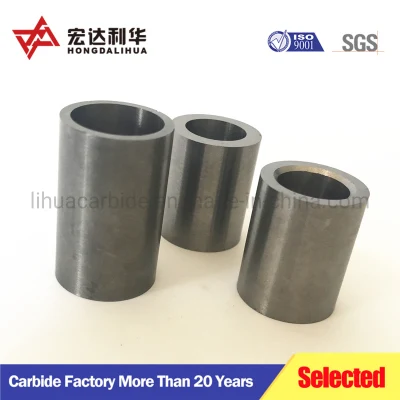

tungsten carbide bushing sleeves Product and WC+Co Product Material cemented carbide grinding roll
Advantages :
(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;
(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;
(3). No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;
The grade information for sintered carbide shaft sleeves
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (over N/mm2) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Zhuzhou Lihua Cemented Carbide Co.,Ltd
About Lihua Cemented Carbide
Established in 1996, specialized in production carbide products more than 20 years and located in Zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide ,has been build a long term relationship with our customers from Italy , Portugal, German ,Turkey ,USA ,Mexico ,India , Austrilia ,South Africa etc .
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter :woodworking tool ,V-cutter , textile cutter , shoes cutter ects , Any kinds of customized carbide products .
Daily capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15Ton per day. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
