Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30

Looking for Tungsten Carbide Button Rock Drilling Bits M10, M20, K05, K10, K20, K30? We are a factory specializing in producing high-quality rock drilling bits.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
M10 M20 K05 K10 K20 K30
Drill Hole Depth
>300m
Bit Type
Drag Bit
Chemical Composition
Wc+Co
Lead Time
Within 15 Days
Application
High Pressure Grinding Rolls
Advantage
High Hardness Good Wear Resistant
Transport Package
10PCS in Plastic Box Then Into Cartons
Specification
20x15x10cm
Origin
China
HS Code
8208101100
Production Capacity
500 Tons

Product Description


tungsten carbide  button hard alloy ball teeth for geological and mining drilling

Product Description
Product name
Tungsten carbide button
Material
WC+CO tungsten carbide
Grade
YK05/YK10/YK20/YK25/YK40/YG6C/YG8C/YG11C/YG13C/YG15C etc
Certification
ISO9001
Tolerance
Customer's request
Usage
petroleum drilling and snow removal
Size
Customer's request/accept customized

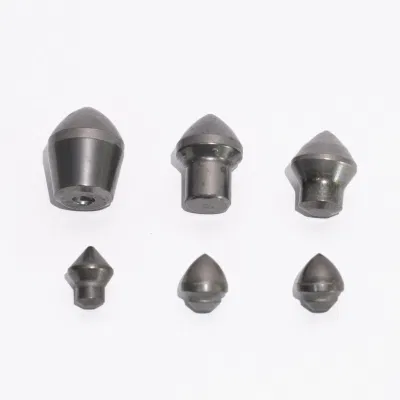

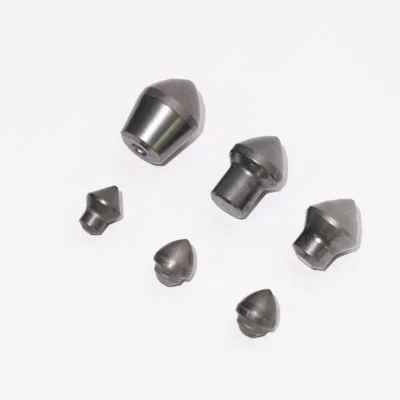

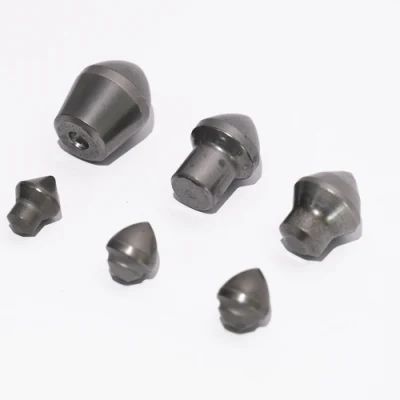

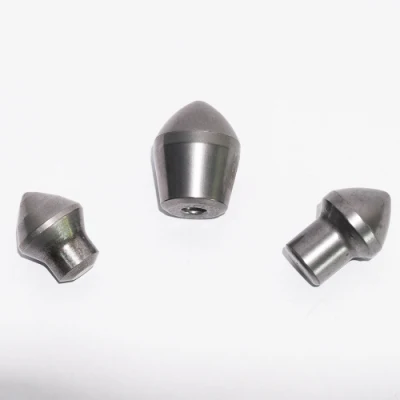

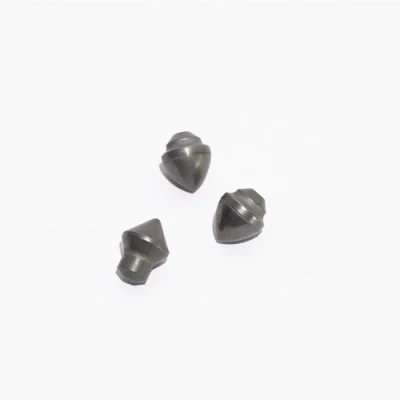

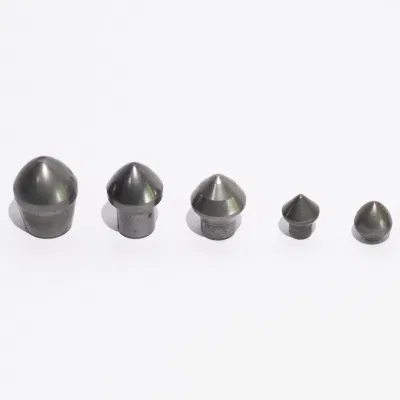

Detailed Photos

Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30

Grade
 Density
g/cm3
 TRS
Mpa
 Hardness
HRA

Performance & application recommendations
YG4C
15.10
1800
90.0
mainly used as a small button for hammer drill, which is used for cutting soft and medium hard strata.
YG6
14.95
1900
90.5
For coring crowns, electric coal bits, coal pickaxes, oil cone bits and scraper bits for geological zeros
YG8
14.80
2200
89.5
For coring crowns, electric coal bits, coal pickaxes, oil cone bits and scraper bits for geological zeros
YG8C
14.80
2400
88.5

YK15
14.60
2450
87.6
For coring crowns, electric coal bits, coal pickaxes, oil cone bits and scraper bits for geological zeros
YK20
14.40
2500
86.8
The buttons and blades are mainly used to rotate the drill bit for cutting medium and hard formations.
YK25
14.40
2550
87.2
 mainly used to rotate the buttons and blades of the drill bit to cut medium-hard and hard rock formations
YG11C
14.40
2700
86.5
mainly used to strike the blades and buttons of drill bits and tricone bits to cut medium, hard and very hard formations
YG13C
14.20
2850
86.0
Push-button and rotary blade strike drill for cutting hard and very hard formations
YG15C
14.0
3000
85.5
Suitable for oil cone drill bit, suitable for medium soft, medium hard drill
bit rock


Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30
Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30
Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30


Certifications




Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30

Packaging & Shipping



Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30
Company Profile



Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30 Tungsten Carbide Button Rock Drilling Bits M10 M20 K05 K10 K20 K30
FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 25 years of production experience.
Q2: Where is your factory located ?
We are located in HeBei province.
Q3: Is the price of Carbide tips K20 Competitive?
We have our own Factory. Thanks to strong production and distribution system,
we promise to offer our customers the most competitive price.
Q4: Are the Carbide tips K20 High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for
ensuring qualified products before shipping.
Q5: How to place an order of Carbide tips K20?
1. Fill your Order List in our online Inquiry System.
(Also you can directly contact our salesperson by E-mail / Skype / Whats App)
2. We will make a feedback to you ASAP after receive your order list.
Q6: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality protection, 100% on-
time shipment protection, 100% payment protection for your covered amount.
Q7: What's your delivery time of Carbide tips K20?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment.
For the non-standard which we do not have mold it takes
15-35 days after receiving the advance payment.
