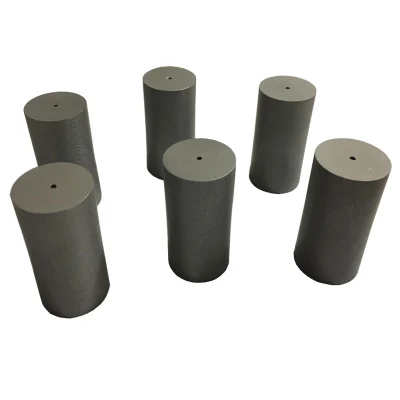

Tungsten Carbide Cold Heading Dies and Punch Dies for Electronic Industry, Punch &Die Tooling

Get high-quality Tungsten Carbide Cold Heading Dies and Punch Dies for Electronic Industry at Punch & Die Tooling. We are a leading factory producing top-notch tooling solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
YG15 YG25 YG30
Manufacturing Technology
Automation Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Geometric Detection
After-sales Service
Available at Any Time
Chemical
Wc+Co
Lead Time
7-15days
Density
19/Cm3
Usage
for Aluminum, Copper, Steel Wire
Hardness
89.5hra
Size
30-200mm
Transport Package
Carton
Specification
Various Size
Trademark
OWN, OEM, ODM
Origin
China
HS Code
8207909000
Production Capacity
500tons

Product Description

Product Description



Application of Long life time hard metal cemented tungsten carbide wire drawing die

1. Various kinds of grades are available.
2. ISO quality control system.
3. Precision Ground and high polishing process
4. High wear resistance, high hardness and high impact toughness
5. 7x24 online support.

Cemented carbide wire drawing die as a tool material has been increasingly used for cutting tools, wear-resistant tools, impact-resistant tools, and other products with special purpose. Cemented carbide was first used in stretching mold area and has gone though cast iron mold, alloy steel mold, diamond dies, cemented carbide dies, polycrystalline module die and other developmental stages. With the property of high wear resistance, good polishing performance, low friction coefficient, etc., cemented carbide drawing die has been a substitute of steel mould which is used to stretching steel and non-ferrous metal.

Tungsten carbide cold heading dies has high impact resistance, high toughness, good wear resistance, and quality consistency. The are different grade with different properties and applications, which have been proved to be ideal in making non-ferrous metal, ferrous metal and their alloys. our professional carbide grades for cold heading &punching die nibs, under our engineer's professional suggestion.

Grade Density g/cm3 Hardness HRA T.R.S MPa Performance & application recommended ISO
YG6X 14.85 91.5 2300 good wear resistance,suitable for drawing steel wires,nonferrous metal wires and alloy wires or bars less than OD6mm under low stress K10
YG6 14.9 90.5 2400 good wear resistance,suitable for drawing steel,nonferrous metal and alloy wires or bars less than OD20mm under low stress,also for drawing tubes less than OD10MM
YG8X 14.65 91.5 2900 good wear resistance and strength,suitable for drawing all kinds of wires and bars K20
YG8 14.7 89.8 2800 good wear resistance and strength,suitable for drawing steel,nonferrous metal and alloy bars less than OD50mm under high stress,also for drawing tubes less than OD35mm
YG15 14 87 3000 suitable for drawing steel bars and tubes under very high stress K40
Other grades may be offered by customers'requirement
Tungsten Carbide Cold Heading Dies and Punch Dies for Electronic Industry, Punch &Die Tooling
Company Profile


Winway Group is a professional manufacture of cemented carbide factory based on hebei China Since 1989. We specialize in researching, designing and manufacture of Tungsten carbide products. Such as tungsten carbide tips, tungsten carbide rods, tungsten carbide bar, tungsten carbide strips, tungsten carbide buttons, CNC inserts, mineral tools, wear resistance products and other non-standard carbide products.

With up-to-date production line, advanced equipment from Switzerland, strict quality control system from raw material to qualified products. Which made our products Stability, Practicality, Reliability. Our products are welcomed by customers from over 30 countries in Europe, North America, South America, Australia, Africa and south Asia,

OEM Service: Helping to create your own brand with Customized package.

Steady quality, good price, prompt shipment and professional service

Sample are available.

Faithfully desire to develop mutual benefit business relation with all customers from all over the world.



Tungsten Carbide Cold Heading Dies and Punch Dies for Electronic Industry, Punch &Die Tooling
Certifications



Tungsten Carbide Cold Heading Dies and Punch Dies for Electronic Industry, Punch &Die Tooling
Packaging & Shipping



Tungsten Carbide Cold Heading Dies and Punch Dies for Electronic Industry, Punch &Die Tooling
FAQ

Q1 : Are you Factory or trading company ?
 We are Factory with 25 years of production experience.

Q2: Is the price of tungsten carbide rod/round bar Competitive?
We have our own Factory. Thanks to strong production and distribution system,
we promise to offer our customers the most competitive price.

Q3: Are the tungsten carbide rod/round bar High Quality?
  Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: How to place an order of tungsten carbide rod\round bar?
 1. Fill your Order List in our online Inquiry System.
       (Also you can directly contact our salesperson by E-mail / Skype / Whats App)

2. We will make a feedback to you ASAP after receive your order list.


Q5: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality protection, 100% ontime shipment protection, 100%paymen protection for your covere amount.

Q6: What's your delivery time of tungsten carbide rod/round bar ?
For the normal type which we have mold it takes 7-15  days after receiving the advance payment.
For the non-standard which we do not have mold it takes
15-35 days after receiving the advance payment.
