Basic Info.
Model NO.
Tungsten carbide die nibs for nail making
Driving Motor Type
Hybrid
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
Product Name
Tungsten Carbide Die Nibs for Nail Making
Other Name
Tungsten Carbide Forging Dies
Key Words
Carbide Dies, Carbide Mold
Applciation 1
to Be Used as Wear Parts
Applciation 2
to Be Used as Mold to Make Nails
Field Can Be Used 1
Fastener Industry
Field Can Be Used 2
Auto Industry
Field Can Be Used 3
Where High Enduribity Requried
Transport Package
in Carton
Specification
customized
Trademark
UBT
Origin
China
Production Capacity
40tons/Month
Product Description

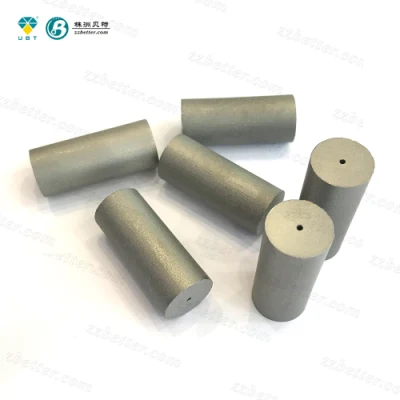

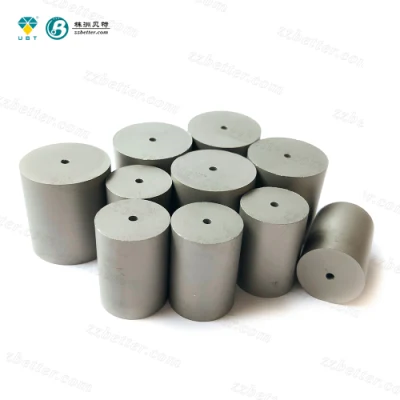

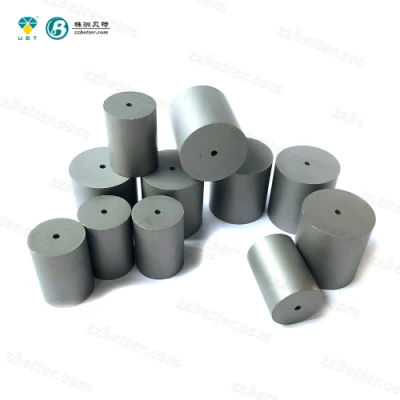

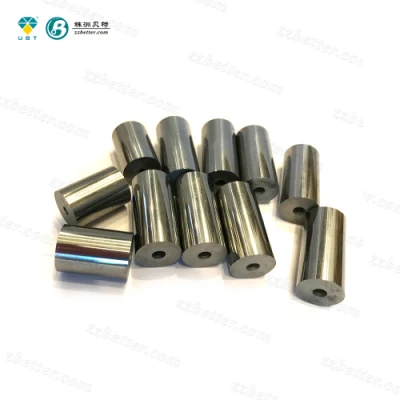

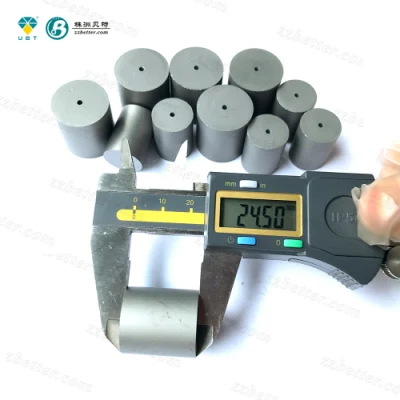

Tungsten carbide die nibs for nail making
Commonly Grades used for tungsten carbide heading dies
| Carbide punching and impacting dies | |||||||
| Grade | Performance | Performance&application recommended | |||||
| Density | Hardness | Bend Strength | |||||
| G/Cm3 | HRA | N/mm2 | |||||
| YG11 | 14.4 | 88.5 | 2600 | Forming or stamping dies for metal powders and nonmental powders. | |||
| YG15 | 14 | 87.5 | 2800 | For fabricating drawing dies of steel tubesand rods under high | |||
| compressibility ratio;punching,stamping,forging tools under large stress. | |||||||
| YG20 | 13.5 | 85.5 | 3200 | For fabricating of stamping dies for watch parts, spring plates of musical | |||
| instruments, battery jars,small sized steel balls,screws,screw caps. | |||||||
| YG16C | 13.9 | 85.5 | 2900 | Impact resistance, hot&forging dies etc. | |||
| YG18C | 13.7 | 84.5 | 3100 | Impact resistance forging dies,hot-press forging dies and rollers. | |||
| YG20C | 13.5 | 83.5 | 3300 | Dies for wear resistant or impact resistant application. | |||
| YG22C | 13.3 | 83 | 3500 | Nut forming dies and high impact resistance forging dies. | |||
| YG25C | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers. | |||
Also we can produce the carbide die as your required.
