Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted

Looking for customized Tungsten Carbide Dies Core for Mould Yg6X? Our factory accepts custom orders and guarantees high quality. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • Production Process
  • FAQ
Overview

Basic Info.

Model NO.
15.88x19.08x0.8
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Milling Speed
High Speed
Parts Detection Method
Geometric Detection
Certfication
ISO 9001
Transport Package
Plastic Box, Standard Export Carton
Trademark
RV
Origin
Zhuzhou, China
Production Capacity
50000pieces/Month

Product Description

Product Description

Cemented carbide is an alloy material made of refractory metal powder (tungsten carbide, titanium carbide, tantalum carbide, niobium carbide) and bonded metal (cobalt, nickel, iron) by powder metallurgy process. Cemented carbide has a high hardness and bending strength. Hardness is up to 86-95HRA and strength is up to 3000MPa. Red-hardness is good(up to 900-1000ºC, maintains 60HRC); It has many advantages such as excellent wear resistance and corrosion resistance, large elastic modulus and low thermal expansion coefficient. Cemented carbide is known as "industrial teeth". And it is mainly used as cutting tools, geological mining tools, molds, structural parts, wear-resistant parts, high pressure and high temperature resistance cavity etc., widely used in aerospace, mechanical processing, metallurgy, oil drilling, mining drilling, construction tunnel engineering, electronic communications, measuring and other fields.

Product Parameters


Grade Density
(g/cm3)
TRS
(N/mm²)
Hardness
(HRA)
Application recommended
YG11 14.4 2600 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14.0  2800 87.5 For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small size steel balls, screws, screw caps.
YG16C 13.9 2900 85.5 Impact resistance forging dies.
G18C 13.7 3100 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83.0  Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.

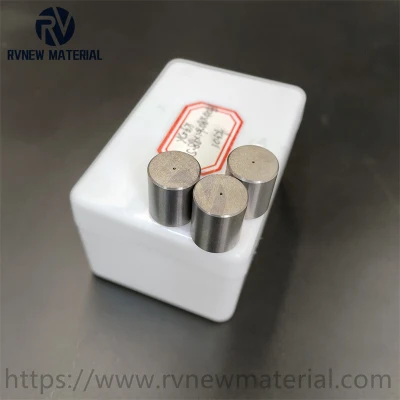

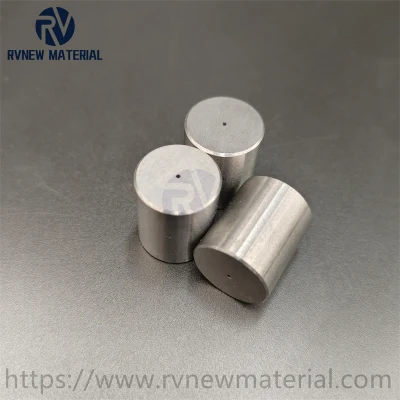

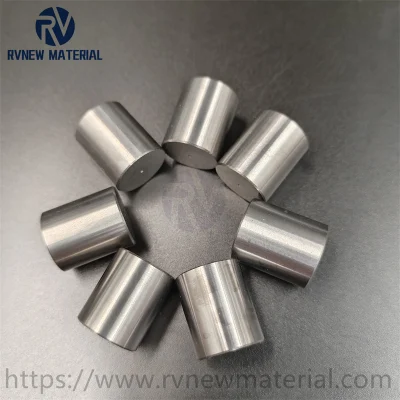

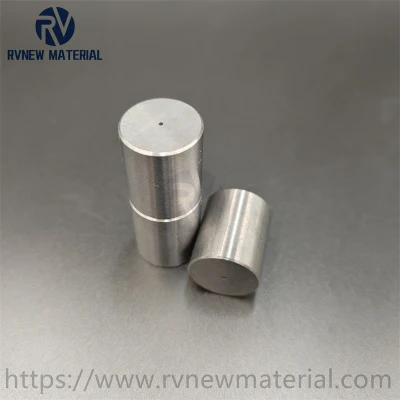

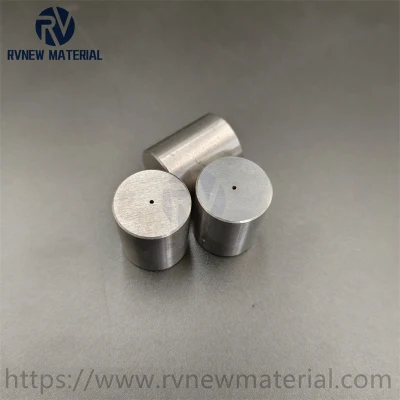

Detailed Photos

Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted
Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted
Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted
Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted
Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted



Company Profile

Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted
Zhuzhou Rivictory New Material Co.,Ltd. is located in Zhuzhou, Hunan, which is Chinese industrial base.The main products are Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, we have our own research and development team, which can customize products according to customer's requests.

Production Process

Tungsten Carbide Dies Core for Mould Yg6X Customized Accepted

FAQ

1. Who are we?
Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou, Hunan, which is China's industrial base. The company's main products are tungsten carbide blanks, milling cutters, carbide rods,HSS drill bits, HSS bar, carbide burrs, CNC inserts and epoxy resign insulators, all of which have passed ISO quality certification. At the same time, the company has its own research and development team, which can customize products according to customer needs.
The company is committed to providing customers with the most suitable products and the best quality services and strives to promote our products to all parts of the world.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?

Tungsten carbide blanks, carbide rods, carbide rotary burrs, milling cutters, HSS drill bits, HSS bar, CNC inserts and epoxy resign insulators.

4. Why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.


5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency:USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY;
Accepted Payment Type: T/T, Money Gram, Credit Card, PayPal, Western Union, Cash, Escrow
.
