Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

Our Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material is made in our factory. Experience superior quality and performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-11764
Service
OEM/Customization
Surface Treatment
Polishing, Sand Blast
Performance
The Ultra-High Hardness and Strength
Features
Wear-Resistance Long Life
Transport Package
Carton or Wooden Case.
Specification
Customized service
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
1000PCS Per Month

Product Description

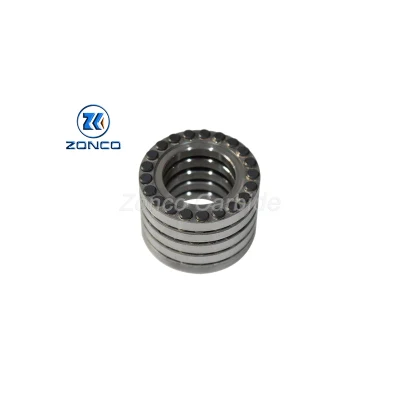

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

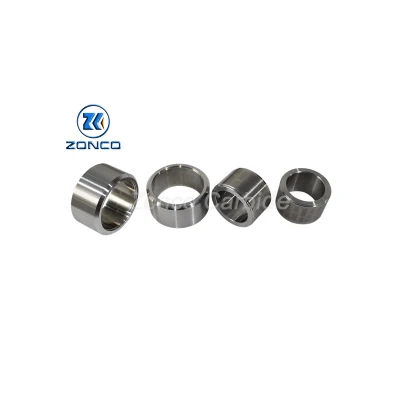

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

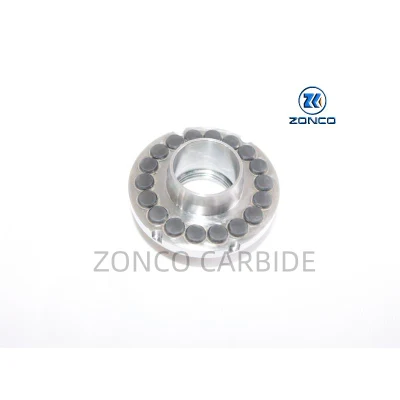

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

Basic info:

Standard: ISO9001:2015 Transport Package

Carton or Wooden Case. Also Can Be Customized as per client's requirements

Application: Oil&Gas,Mining,Machine, Drilling equipment Product′s Size As Per Drawing
Material: Tungsten Carbide Trademark

ZONCO

Service OEM available Origin

Zhuzhou,China

Features Anti-Erosion/Corrosion/Abrasion Production Capacity

800-1000PCS Per Month



Company Profile:

Zonco has been specialized in customizable cemented carbide parts industry since 2014,and able to manufacture varied tungsten carbide parts and alloy wear resisting parts based on customer's drawings and material specification requirements.We are Producing and Machining Various Non-standard or Customized Tungsten Carbide Product which widely applied in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.


Welcome to contact us for more details if you have demand for cemented carbide parts applied in oil exploration and drilling,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery and so on.Introudction

Zonco has been specialized in manufacturing cemented carbide parts by offering drawings-based customization,and have rich experiences in varied wear resistance combined with tungsten carbide and stainless steel materials based on customer's drawings and specific requirements.

Welcome to contact us for more details if you have demand for hard alloy parts applied in oil&gas wellhead&downhole,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery,etc.


Description:

Mud motor is one of the most widely used equipments in directional drilling,in which TC Bearing is the most important parts.
ZONCO adopt advanced vacuum sintering process and HIP sintering process to perfectly combine sintered cemented carbide layer and steel body of Tc bearing ,significantly enhance its resistance to abrasion,erosion and corrosion from mud fluid in drilling mutor,thus ensure that downhole motor could stably work in directional drilling.
Compare to TC bearing,PDC bearing is a more innovative design which ZONCO could also supply and welcome to consult!


Polycrystalline Diamond (PCD) radial bearings are comprised of a series of PCD inserts assembled (usually by brazing) in carrier rings. A typical PCD radial bearing set includes a rotating and stationary bearing ring. These two rings oppose each other with the PCD surface on the inside diameter of one ring in direct contact with the PCD surface on the outside diameter of the mating ring.

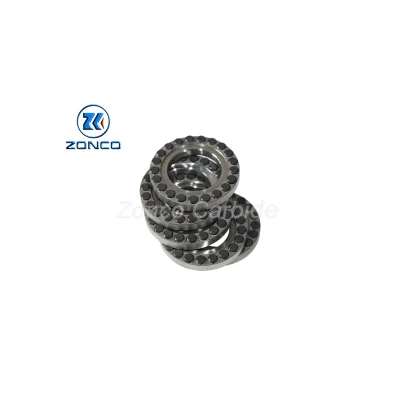

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

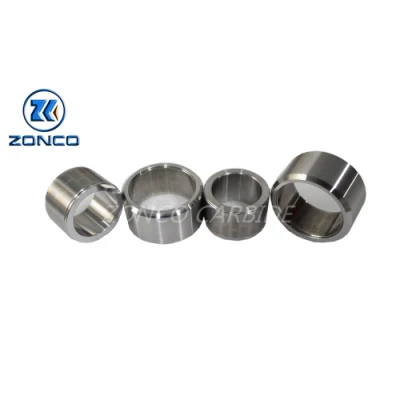

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

Customized PDC&Tungsten Carbide Bearing,Thrust&Radial Bearing:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw MaterialTungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material
Our Advantages:

1)Choose different types of raw materials according to different working conditions

2)Customize products as per customer's drawings to meet the special needs

3) Various kinds of material grades are available based on customer's application

4) We have a strict quality process based on ISO9001-2015 and professional inspection tools  such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.

5) Advanced technology with precision ground and high polishing process

6) High wear resistance, high hardness and impact toughness

7) Excellent after-sales service


Main Products lines:

1.Radial Thrust Bearing & PDC,TC Bearing

2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)


Customizable Products Display:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

Tungsten Carbide Grades,Properties and Application:


Grade

WC%

Co/Ni%
Physical and mechanical properties
Grain size
μm



Recommended application

Density
g/cm3

TRS
N/mm2

Hardness
HRA
YG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
YG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
YG06 94 6 14.8-15.1 2500 90.0 1.2
Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
YG06X 94 6 14.8-15.1 2400 91.5 1.0
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
YG10.2 90 10 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
YG10X 90 10 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance

YG11

89

11

14.3-14.7

2800

88.5

1.2-1.6
Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6

YG15X

85

15

13.8-14.2

4500

89.0

0.7
Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
YG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
YN06 94 6 14.5-14.9 2000 90.0 1.2
Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
YN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
YN11 89 11 14.0-14.3 2600 88.0 1.2


Why choose us:

1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.

2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.


What is surface treatment and its advantages?

Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.

Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.


Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

International Quality Certification ISO9001 of Cemented Tungsten Carbide:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material


Production Plant/Factory:

Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material
The department of raw virgin preparation and compression:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material
The department of HIP sintering:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material
The factory's interior:

Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material
Technological process of cemented carbide:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material

FAQ:

1.Q:What's your common incoterms used?
A:EXW, FOB, CIF, FCA.

2.Q:What is your payment terms ?
A:T/T 100% in advance Or 60% deposit, 40% before shipment. Negotiable based on customers' credibility and order amount.

3.Q:What is the lead time for carbide parts ?
A:Usually it is 35-45 calendar days based on order qty.

4.Q:How do you ensure products quality?
A:We have a strict quality process based on ISO9001-2015 and professional inspection tools  such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.

5.Q:Which countries do you trade with?
A:Our products are exported to USA, UK, Russia, India, Singapore, UAE, Iraq, Pakistan, Norway, Hungary, etc.


Corporation Main Gate:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material


Conference/Meeting room:
Tungsten Carbide Radial PDC Bearing with Customized Top Grade Raw Material
