Tungsten Carbide Saw Tips K05 K10 K20 K30 K40

Get high-quality Tungsten Carbide Saw Tips K05 K10 K20 K30 K40 at our factory. Durable and reliable cutting tools for all your needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide saw tips
Type
Tool Parts
Material
Tungsten Carbide
Certification
ISO 9001:2008, SGS
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 20% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Nickel Coating
Main Using Purpose
Carbide Saw Blade Tips
Installation
High Frequency Welding or Laser Welding
Application
for Wood, Aluminum & Steel Cuting
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Done by laser mark
Origin
Zhuzhou City, Hunan, China
HS Code
8209003000
Production Capacity
30000000 Pieces

Packaging & Delivery

Package Size
13.00cm * 5.00cm * 2.00cm
Package Gross Weight
0.500kg

Product Description

Tungsten Carbide Saw Tips K05 K10 K20 K30 K40

Zhuhou Eastern Carbide, a professional manufacture which make different types of tungsten carbide saw tips. Our production team have more than 10 years experience and currently we are selling our product to over 23 countries.
Tungsten Carbide Saw Tips K05 K10 K20 K30 K40
Carbide saw tips brazed on the teeh of the metal blades, it can be done by normal brazing procss and also laser brazing process. The blade with carbide saw tips normally used for machining wood (nature wood, plywood, MDF, etc.) and also used for machining metal, like cast iron, Stainless steel, aluminum.
Besides the standard types of saw tips, it also have many
customized saw tips which done by clients' design for special using purpose.
Grade range "K" is the normal grades for carbide saw tips, but also have other grade like range "P" for stainless steel,
aluminum and some other material.
Tungsten Carbide Saw Tips K05 K10 K20 K30 K40

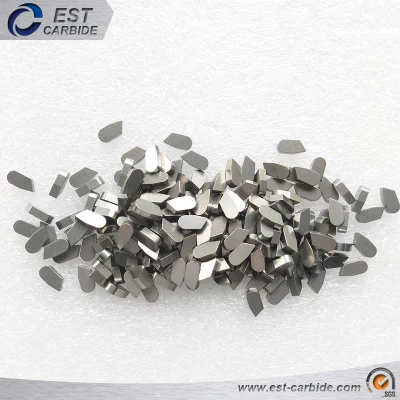

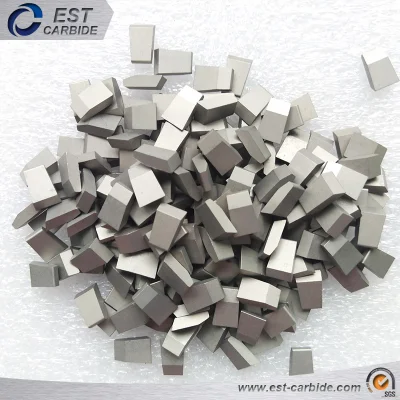

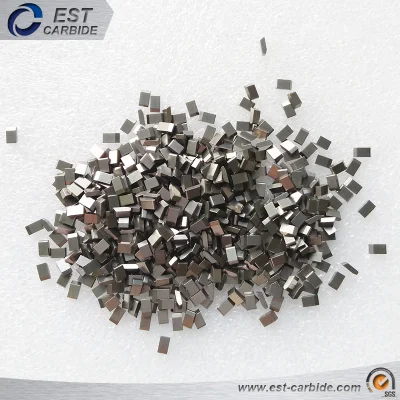

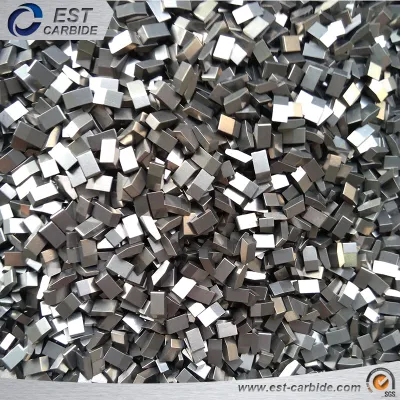

Regular types of tungsten carbide saw tips

Tungsten Carbide Saw Tips K05 K10 K20 K30 K40*Standard tolerance: ISO-2768-m.


We provide a wide range of tungsten saw tips in different types and different dimensions, also we have many successful projects for our clients for the
customized types.

Tungsten Carbide Saw Tips K05 K10 K20 K30 K40
Basic grades of tungsten carbide saw tips
ISO Grade Co% Density(g/cm3) Hardness Bending Strength(N/mm2) Grain Size(μm) Suitable for
HRA
(ISO3738)
K01 3 15 94.2 2750 0.6 Shaving board, density board, brass & aluminum alloy
K05
6 14.9 93.3 3200 0.6 Solid hard wood, plywood boar, MDF
K10 6 14.8 92 3200 0.8 Hard wood(excelent performance grade)
K20 7 14.9 91 2600 1.2 Ordinary wood and plasticmaterial
K30 8 14.8 90 2700 1.2 For ordinary aluminum
M30 12 13.0 91 2400 0.8 For angle steel, stainless steel and normal steel, like C45
M40 12 13 90 2400 1.4
Metallurgical saw blade only

About us
Tungsten Carbide Saw Tips K05 K10 K20 K30 K40
Our advantages:
  • Professional team for production: Have more than 10 years experience for production on carbide filed.
  • Fast delivery based on high production capability.
  • Strict quality control system: Ensure our product in good and stable quality.
  • Rich experience on customized products.
  • Technical support: Help you get the best solution.

Quality Control System:
We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Tungsten Carbide Saw Tips K05 K10 K20 K30 K40

Tungsten Carbide Saw Tips K05 K10 K20 K30 K40

Packing:
A. Standard packing
    1).Plastic boxes with foam inside and carton outside.
    2).Paper boxes with foam inside and carton outside.
    3).Inner boxes/packing material inside and plywood box outside (for heavy product).

B. Customized packing available: We can do special packing based on client's requirements..



FAQ:
Q. Are you manufacturer or trading company ?
A. We are the manufacturer with our own workshop and production teams.
Q. How to ensure the good quality from you?
A: All product will go through inspection at least by 3 times:
Material checking: Use the same batch of material, to make carbide pieces to test the compositions and mechanical properties, like density, hardness, bending strength, Cobalt Magnetism, etc.
Semi product checking: Main checking the
Final product checking: Check all data and compare to the target sample we made.
Also check all dimensions and surface finishing.


Q:How long is the delivery time?
A: Stock product: We have stock for some regular product, we can send them immediately once order confirmed.
For Non-stock product: Within 15-20 days


Q:Is your product customized or standard?
A: We have the regular product and also have rich experience for customized parts.
We have many success projects that make the product based on your own designs.


Q:What are the payment terms?
   Regular payment term: 30% deposit and balance paid before delivery
   Other options:
Full payment before delivery
Full payment after receiving the goods
    O/A 30 days
