Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver

Get high-quality unground, finished ground, or polished carbide solid rods for end mill, reamer, and graver manufacturing from our factory.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Appearance
Polishing, Sintering
Process Engineer
Adopt Advanced Technology
Model Number
Any Types
Place of Origin
Zhuzhou, China(Mainland)
Transport Package
Standard or Customized
Specification
SGS, ISO9001
Trademark
LIHUA
Origin
Zhuzhou, China (Mainland)
Production Capacity
2000kg/Mon

Product Description

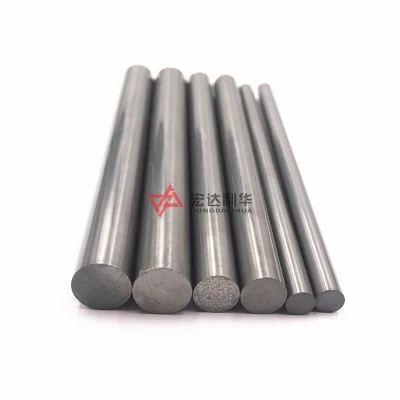

Unground  finished ground polished Carbide Solid Rods for End Mill Reamer Graver

Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver Applications:

It is suitable for the production of various types electrical machine & electronic progressive dies and punches. And widely used in ceramics, printing machine, plastic, rubber, leather industry and cutting machines, CNC machine, CNC, PCB micro drill bits, etc.

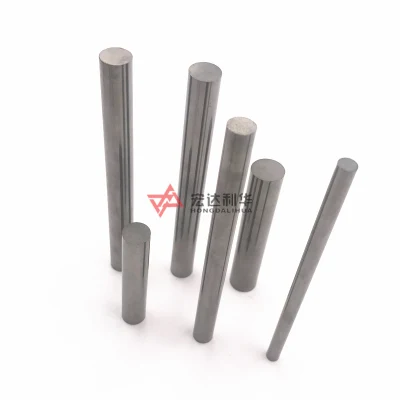

Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver

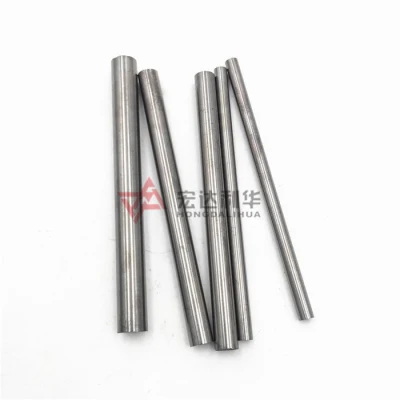

Details of Tungsten Solid Carbide Rods

Product name Solid carbide Rod / Bar / Stick
OD tolerance 0.5um
Surface fineness Ra0.025a
Sizes Diamter:Φ0.5-Φ0.35mm,Length:100-330mm(diameter is Φ1.0-Φ6.0mm,lenght can up 700mm)
Type Round(solid,hollow)

Grade

YL10.2, K20,K30 ,YL50,YU06A,YU06R,YF06,YH6F,YG11 etc.
Material 100% Tungsten Raw Materials

Physical performance

High Precision , hardness,strength, wear resistance .

Application

For production various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines.

Non-standard or Tolerance

Can be customized

1)Solid tungsten carbide rod/bar/stick

Diameter(D)

Tolerance

Standard length

Φ0.5~5.5

+0.30~+0.45

330 (+5.0/0)

Φ6.0~40.0

+0.20~+0.60

330(+5.0/0)

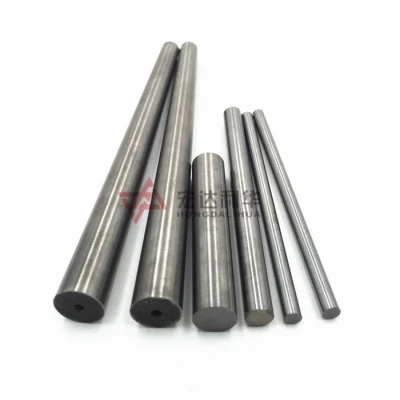

 2)Hollow tungsten carbide rod/bar/stick

Outer Diameter

Tolerance of Outer Diameter

Diameter of Hole

Tolerance of Hole

Standard Length

Φ2.5~8.0

+0.2~+0.5

0.3~1.5

+/-0.15

330 (+5.0/0)

Φ10.0~30.0

+0.3~+0.8

2.0~5.0

+/-0.30



330 (+5.0/0)

 Dimensions of Tungsten Carbide Rods

Dimensions of Tungsten Carbide Rods

Dimensions

Dimensions

Type

Tolerance of diameter(mm)

Tolerance of length(mm)

Type

Tolerance of diameter(mm)

Tolerance of length(mm)

Φ3.0×320

±0.5/0.6

0/+5.0

φ8.0×45

±0.5/0.6 0/+5.00

Φ3.5×320

±0.5/0.6

0/+5.0

φ8.0×50

±0.5/0.6 0/+5.0

Φ4.0×320

±0.5/0.6

0/+5.0

Φ8.0×320

±0.5/0.6 0/+5.0

φ4.5×320

±0.5/0.6

0/+5.0

φ8.6×320

±0.5/0.6 0/+5.0

φ4.0×150

±0.5/0.6

0/+5.0

φ8.0×150

±0.5/0.6 0/+5.0

φ5.0×36

±0.5/0.6

0/+5.0

Φ9.0×320

±0.5/0.6 0/+5.0

φ5.0×80

±0.5/0.6

0/+5.0

φ10.6×320

±0.5/0.6 0/+5.0

φ5.0×40

±0.5/0.6 0/+5.0

φ10.0×65

±0.5/0.6  0/+5.0
φ5.0×100 ±0.5/0.6  0/+5.0

φ10.0×60

±0.5/0.6  0/+5.0

Φ5.0×320

±0.5/0.6 0/+5.0

φ10.0×55

±0.5/0.6  0/+5.0

Φ5.5×320

±0.5/0.6  0/+5.0

φ12.0×78

±0.5/0.6  0/+5.0

Φ6.0×100

±0.5/0.6  0/+5.0

φ12.0×150

±0.5/0.6  0/+5.0
Φ6.0×320 ±0.5/0.6  0/+5.0

φ12.0×130

±0.5/0.6  0/+5.0

Φ6.6×320

±0.5/0.6  0/+5.0

φ12.6×320

±0.5/0.6  0/+5.0

Φ7.0×320

±0.5/0.6  0/+5.0

φ15.6×320

±0.5/0.6  0/+5.0

φ7.0×60

±0.5/0.6  0/+5.0

φ16.0×100

±0.5/0.6  0/+5.0

φ7.6×320

±0.5/0.6  0/+5.0

φ16.6×320

±0.5/0.6  0/+5.0

φ8.0×80

±0.5/0.6  0/+5.0

φ18.6×320

±0.5/0.6  0/+5.0

φ8.0×40

±0.5/0.6 0/+5.0

φ25.0×320

±0.5/0.6 0/+5.0



Tungsten Carbide Grade Information

Grade

Density g/cm3

Hardness HRA(hv)

T.R.S(M Pa)

Performances &applications recommended

YG6

14.9

89.5

2150

Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.

YG8

14.6 89 2320

Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

YG11

14.4 87.5 2260

Medium grain, for wear parts and mining tools

YG15

14.1 86.5 2400

Medium grain, for mining tools, cold heading and punching dies

YS2T

14.45 92.5 2800

Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools

YL10.2

14.5 92.5 3400

Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.

YNi8

14.6 88.5 1710

This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.



Grade

ISO Grade

g/cm3

Density g/cm3

Hardness HRA>

T.R.S>N/mm²

TRS >

Performances or recommended applications.

Conventional grades

YG3

K05 15.20-15.40 91.5 1400

Medium grain, for finishing machining of cast iron and non-ferrous metals.

YG3X

K05 15.20-15.40 92.0 1300

Fine grain, for finishing machining of cast iron and non-ferrous metals.

YG4C

  15.05-15.25 90 1620

Coarse grain, for percussion drill bits and mining inserts.

YG6

K20 14.85-15.05 90.5 1860

Medium grain, for rough machining of non-ferrous metals.

YG6A

K10 14.85-15.05 92.0 1600

Fine grain, for drawing dies and woodworking tools.

YG6X

K10 14.85-15.0 91.7 1800

Fine grain, for cutting of non-ferrous metals.

YL10.1

K12-K25

M10-M30

14.9 91.5 1900

with good wear-resistance and good impact- resistance,Suitable for general drill tool wear parts.

YG8

K30 14.60-14.85 89.7 2060


Medium grain, for drawing dies.

YG8A

K30 14.6-14.85  90.0  2000

Medium grain, for the drawing dies and wood-working.

YG8X

K30 14.60-14.85  90.5  2000

Fine grain, high hardness and oxidation resistance at high temperatures and good impact toughness.

YG8C

  14.55-14.75  88.0  2160

Coarse grain, for button drill bits and the mining inserts.



YG10

 K40 14.25-14.55  88.0  2160

Medium grain, for machining gray cast iron with a low hardness.

YG11

K40  14.30-14.50  87.5  2260

Medium grain, for wear parts and mining tools.

YG11C

  14.20-14.40  87  2260

Coarse grain, for mining inserts.



YGL10.2

M25-M40

K25-K35

 14.5 91.5  2200

It is suitable for machining common steel,cast iron,stainless steel,nickel based alloys and titanium alloys,etc.It is recommended for making conventional tools,such as twist drill,end mills,screw taps,gun drill,ect.

 YG15    13.95-14.15 86.5  2400

Medium grain, for mining tools, cold heading and punching dies.



YG20

   13.45-13.65 84.0  2480

Medium grain, for non-standard dies and moulds, cold heading and punching dies.

YG20C

   13.40-13.60 82.5  2480

Coarse grain, for die and moulds making screws.

YG22

  13.15-13.55 83.0 2480

Medium grain, for non-standard dies and moulds, cold heading and punching dies.



High-performance grade

YD40

   13.10-13.55 82.5  2480


High impact resistance, for cold heading and punching dies and hot heading and punching dies.

YD45

   13.25-13.65 83.0  2480

High impact resistance, a special grade for hot heading dies.

YD05

  14.90-15.20 93

Used for glass cutting



YD15

   14.80-15.10 91  1900

Used in the manufacture of heavy duty cutting tool for castings and forgings and all kinds of steel skin coarse car or get a good effect, is widely applied in cutting blade.

YD201

K05 14.65-14.95 93.0  1760
Ultra-fine grain, for finishing machining of non-ferrous metals and for wood-working tools.

YC45

P40,P45 12.60-12.90 90 2026

Used in the manufacture of heavy duty cutting tool for castings and forgings and all kinds of steel skin epidermislathe or have a good effect.

YS series grades

YS2T

 K30 14.40-14.60  91.5 2200

It is belong with ultrafine grain alloy  , suitable for low-speed roughturning, milling, heat-resistant alloy and titanium alloy for the cutters and tap, saw blade milling cutter is best .

YS4

  13.40-14.40  91.5  2260

Suitable for iron-based, nickel-based high-temperature alloy, rough machining of high strength steel, is also suitable for cold hard cast iron, heat-resistant stainless steel, high manganese steel, rough machining of hardened steel.

YS8

M05,K10 13.9  92.5 1720
 Suitable for high, stainless steel, high manganese steel and high temperature alloy, silicon steel sheet, and cutting all kinds of coating materials, also suitable for high hardness cast iron and  glass and so on work pieces of rough machining, finish machining.

YS10

M05,K10 14.30-14.50  91.5  2650

Suitable for high nickel iron, ball mill infinite chilled cast iron and white iron rough and finish machining, also used in rough machining and finish machining of cast iron.



YS25

P20,P40 12.80-13.20  91.0  2000

Suitable for carbon steel, cast steel, high manganese steel, high strength steel and alloy steel rough turning, milling and planing.

YS30

P25,P30 12.45  91  1800

Alloy ultra fine particles, suitable for large feeding high efficiency milling all kinds of steel, especially the alloy steel milling.



YS5


  13.95-14.25  92  2000


It is belong ultra fine grain alloy, suitable for high speed car, milling, heat-resistant alloy and titanium alloy for the cutters and tap, saw blade milling cutter is best

Cutting steel class grade

YT5

 P30 11.50-13.20 90.0  1750

Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions.

YT14

P20 11.20-11.80 91.0  1550

Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate.

YT15

 P10 11.10-11.60  91.5  1500

Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended.

YC40

P40 13.00-13.40  89.5  1860

Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.

YW1

M10 12.85-13.40  92.0  1380

Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel.

YW2

 M20 12.65-13.35  91.0  1680

Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs.

YW3

M10 12.85-13.10  92.0  1420

It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel.



Company Introduction

About Lihua Cemented Carbide Factory

Established in 1990, specialized in production carbide products more than 20 years and located in Zhuzhou city which is the hometown of tungsten carbide in China.
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc.
Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver



Main Products

Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter woodworking tool, V-cutter, Shoes cutter ects.  Any kinds of customized carbide products can be made. Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver
Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver


Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver

Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver
Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver




Monthly Capacity of 15 Tons

We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity has up to 15 Tons per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver

Strictly QC

We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.

Our Exhibitions & Qualifications Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver

Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver

Unground Finished Ground Polished Carbide Solid Rods for End Mill Reamer Graver
