Basic Info.
Model NO.
205*205*12mm
PCD
100mm
ET
15mm
Hole
5
Co
20%
Wc
80%
Hardness
84.5hra
Density
13.5g/cm3
T.R.S
2860MPa
Surface
Rough Grinding 6 Sides
Transport Package
25kg. Carton
Specification
YG20
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Product Description
100% virgin material HIP tungsten carbide blocks,tungsten carbide plates,tungsten carbide strips
100% virgin material HIP tungsten carbide blocks,tungsten carbide plates,tungsten carbide strips
Specifications
100% virgin material HIP tungsten carbide blocks,tungsten carbide plates,tungsten carbide strips
Specifications
The tungsten carbide strip has the characteristics of high red hardness, good weldability, high hardness and high wear resistance. It is mainly used in the production of solid wood, MDF, gray cast iron, non-ferrous materials, chilled cast iron, hardened steel, PCB, brake material. When using, select the appropriate material of the carbide strip according to the purpose.
1. Grade: YG8 8% Co,92% WC
2. YG8,YG6,YG10,YG15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize sizes and shape.

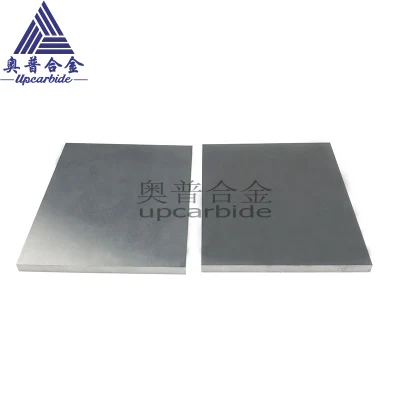

Products Show
![100% Virgin Material Hip Tungsten Carbide Blocks, Tungsten Carbide Plates, Tungsten Carbide Strips](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00abEQfmvnhcuF/100-Virgin-Material-Hip-Tungsten-Carbide-Blocks-Tungsten-Carbide-Plates-Tungsten-Carbide-Strips.webp)
Grades choosing
Grade | Density g/cm3 | Hardnes HRA | T.R.S Mpa | Performance&application recommended |
YG6A | 14.85 | 92.5 | 2000 | Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc. |
YG8 | 14.7 | 89.8 | 2800 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
YG11 | 14.4 | 88.5 | 2900 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
YG15 | 14.0 | 87.0 | 3000 | Suitable for manufacturing punching dies, wear-resistant parts. |
YG20 | 13.5 | 85.5 | 2800 | High bending strength,suitable for manufacturing progressive dies and other punching dies. |
YG25 | 13.1 | 81.5 | 2950 | High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
YS2T | 14.25 | 92.0 | 2500 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc. |
Other grades and sizes can be offered as per customers' requirements
Sizes choosing
L(mm) | W(mm) | H(mm) | | W(mm) | T(mm) | L(mm) |
800 | 800 | 10~80 | | 100 | 100 | 6~80 |
600 | 600 | 10~80 | | 100 | 50 | 6~80 |
300 | 200 | 10~80 | | 100 | 45 | 6~80 |
200 | 200 | 10~80 | | 80 | 55 | 6~80 |
200 | 20 | 10~80 | | 80 | 40 | 6~80 |
150 | 150 | 6~80 | | 70 | 35 | 6~80 |
150 | 130 | 6~80 | | 45 | 25 | 6~80 |
150 | 100 | 6~80 | | 35 | 19 | 6~80 |
150 | 80 | 6~80 | | 20 | 20 | 6~80 |
120 | 120 | 6~80 | | 18 | 12 | 6~80 |
105 | 105 | 6~80 | | .... | .... | .... |
1. Advising HIP sintered for the plate which the thickness more than 10mm.
2. Before delivery to you,all plates were detected by no damage ultrasonice,Keeping the plates all are no blister,no pore,high density & strength,impact resistance and long working life. 3.We can rough grinding and grinding the board surfaces.
2. Before delivery to you,all plates were detected by no damage ultrasonice,Keeping the plates all are no blister,no pore,high density & strength,impact resistance and long working life. 3.We can rough grinding and grinding the board surfaces.

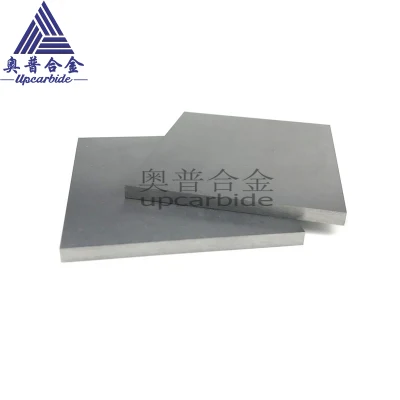

Packing details
![100% Virgin Material Hip Tungsten Carbide Blocks, Tungsten Carbide Plates, Tungsten Carbide Strips](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00vLItAdRyGJcn/100-Virgin-Material-Hip-Tungsten-Carbide-Blocks-Tungsten-Carbide-Plates-Tungsten-Carbide-Strips.webp)

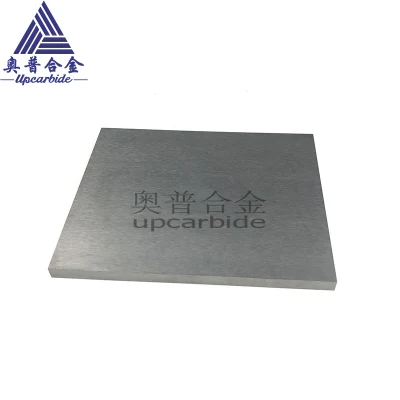

Shipping ways
![100% Virgin Material Hip Tungsten Carbide Blocks, Tungsten Carbide Plates, Tungsten Carbide Strips](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00KDLEwQRFLAoN/100-Virgin-Material-Hip-Tungsten-Carbide-Blocks-Tungsten-Carbide-Plates-Tungsten-Carbide-Strips.webp)

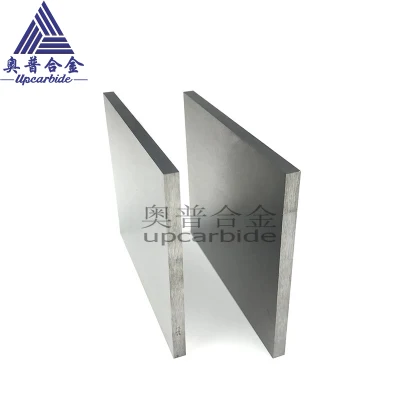

Production process
