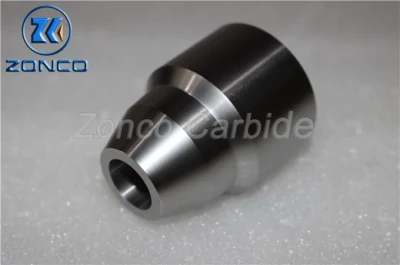

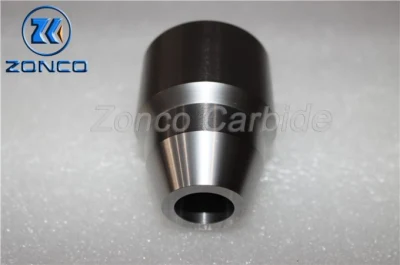

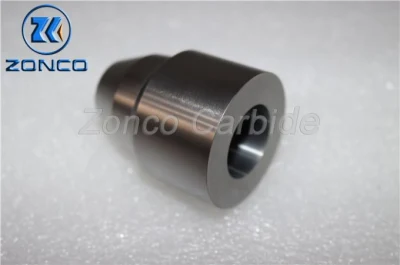

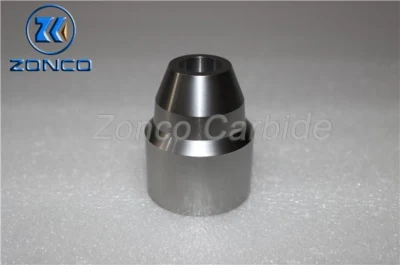

OEM&ODM wear-resistance corrosion resistance tungsten carbide valve core valve seat
Detailed Product Description:
Tungsten carbide is an important raw material in valve seat. Valve seat is wearing part. The important point is: it in the pipe. The medium will crushing the inner place. If the valve seat were not maintained properly, it would get rusty as time passes. Tungsten carbide features: High hardness, corrosion and wear resistance etc. It's high hardness and wear resistance to ensure valve seat guarantee quality. The advantage is tungsten carbide is washing-out resistance. When the liquid into valve, it will washing-out valve seat. The raw material is more important. When parts or machine rubbing against each other, we always using tungsten carbide for valve seat raw material. This way is most quickly, easily way to solve work piece corrosion problem. It's versatility and flexibility in various work piece. It's mainly used in Oil, Gas industry and so on. After accurate grinding and polishing, the frictional factor of surface is very low. We accept customized service. If you have other specification, you can contact us. TDC is your partner in Tungsten carbide industry. For tungsten carbide material grade, we suggest: YG8, YG11, YG15, YS2T, YL10.2, YN8 other grade can be offered by customers' request.
Advantages:
Zonco has been specialized in the cemented carbide industry for many years. It is particularly good at the production and processing of special-shaped non-standard parts. Zonco has not only a full set of processing equipment, but also unique processing technology as well. Zonco offers innovative solutions to meet the extreme complex and severe working conditions (high temperature, strong corrosion and wear) in energy, chemical industry and other industries.The company is dedicated to addressing production concerns to deliver productivity to customers seeking peak performance and providing products with high performance price ratio.
Main product line:
Cemented carbide valve core
Hard alloy valve seat
Cemented carbide porous sleeve
Carbide labyrinth valve
The features:
1. Good wear and corrosion resistance
2. Long lifetime
3. Good working performance
4. One stop customized service
5. Standard export package
Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
