Product Description

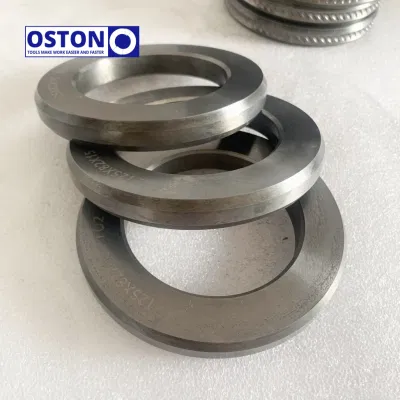

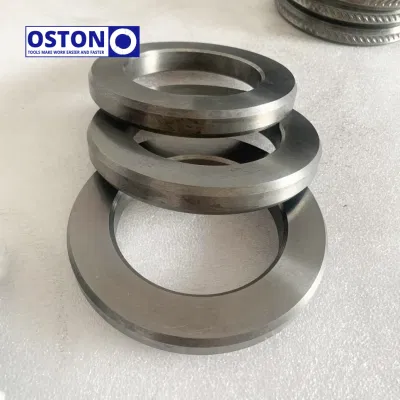

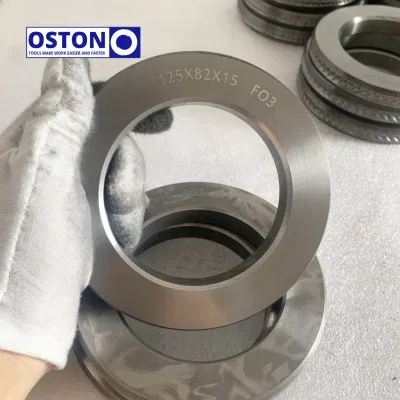

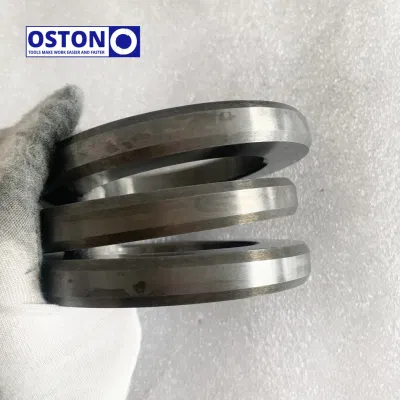

125x82x20mm Tungsten Carbide Rollers for Argentina Market as INTI Argentinian Institut of Industrial Technology
Tungsten carbide rollers,also called as tungsten carbide wire mesh rolls,is applied in reinforcement wire cold rolling and forming mills in construction industry,thread steel bars are with the durability 10 to 20 times higher compared to common steel roller,and the surface quality and the steel bar size accuracy are greatly improved.
Oston tungsten carbide rollers are produced by isostatic suppressing and HIP sintering,which are the most advanced facilities to ensure the stable properties,which reduces the production cost and improves the rebars quality with high precision on dimension,clear ribs and beautiful surface.
| Item name | Tungsten carbide indented roller |
| Dim. | As dimension table below. |
| Types | RO,RT,FO,CA,FR,customization |
| Place of origin | Zhuzhou,Hunan |
| Delivery time | 22-25 days for one batch |
T.C roll is one of Oston leading carbide products, we owned molds of all standard carbide roller dimensions including:
Φ123*Φ82*15mm-RO/RT/FO/CA/PRΦ125*Φ82*15/20mm-RO/RT/FO/CA/PR
Φ145*Φ95*16/18mm-RO/RT/FO/CA/PR
Φ150*Φ95*15/16/18/22mm-RO/RT/FO/CA/PR
Φ150*Φ90*15/16/20/22mm-RO/RT/FO/CA/PR
Φ180*Φ125*15/16/18mm-RO/RT/FO/CA/PR
Φ200*Φ90*15/16/20/22mm-RO/RT/FO/CA/PR
| Blank size with the tolerance(mm): | |||||
| Dimension and Tolerance mm | |||||
| D | Tolerance | d | Tolerance | H | Tolerance |
| <=125 | +0.5~+1.8 | <=90 | -1.5~-0.5 | <=20 | +0.5~+1.5 |
| >125~180 | +0.5~+2.5 | >90~95 | -1.5~-0.5 | >20 | +0.5~+2.0 |
| >180~250 | +0.5~+2.8 | >95 | -2.0~-0.5 | --- | |
| >250 | +0.5~+3.5 | ---- | --- | --- | |
| Finished size with the tolerance(mm): | |||||
| Dimension and Tolerance mm | |||||
| OD | Tolerance | ID | Tolerance | H | Tolerance |
| <=125 | +/- 0.015 | <=90 | 0.0/+0.02 | <=20 | +/- 0.01 |
| >125~180 | >90~95 | >20 | |||
| >180~250 | >95 | --- | |||
| >250 | ---- | ---
| |||
| Finished size (mm): | |||||
| Radial run-out of groove | Radial run-out of periphery | End face runout | Surface parallelism | Inner hole cylindricity | |
| 0.013 | 0.013 | 0.01 | 0.01 | 0.01 | |
| Wire RangeΦ (mm) | OutsideΦ (mm) | InsideΦ (mm) | Thickness (mm) | ||
| 4-8.5 | 123 | 82 | 15 | ||
| 9-12 | 123 | 82 | 20 | ||
| 4-8.5 | 125 | 90 | 15 | ||
| 9-12 | 125 | 90 | 20 | ||
| 4-8.5 | 140 | 90 | 15 | ||
| 9-12 | 140 | 90 | 20 | ||
| 4-8.5 | 150 | 90 | 15 | ||
| 9-12 | 150 | 90 | 20 | ||
| 4-8.5 | 160 | 90 | 15 | ||
| 9-12 | 160 | 90 | 20 | ||
| 4-8.5 | 220 | 130 | 15 | ||
| 9-12 | 220 | 130 | 20 | ||
Customized dimensions are also more than welcome here with even 1 PC testing quantity,please feel free to contact us if you have any need on carbide products.
Q:What kind of products and service could OSTON supply ?
A:OSTON has been specializing in carbide solutions for clints more than 20 countries,which includes design and manufacturing of various carbide parts.
Q: Is there any certification for products of OSTON ?
A: Yes,All products from OSTON have been endorsed with the ISO9001:2015 certification.
Q:Can a drawing be supplied to OSTON for further design ?
A: Yes,we encourage sending as more information as possible,drawing and sketch are welcome for specific quotation,even a sample could be sent to OSTON for further design.
Q:When can I get the offer after sending inquiry ?
A:Our sales operates between 9:00 am to 6:00 pm Monday to Friday,Offer is usually supplied within 24 hours after we got your inquiry,if you are urgent to get the price,please call us or send email so that we'll take it as priority.
Q:How long time I need spend on waiting for my goods ?
A:Usual delivery time is 15-18 days after 30% down payment is received,please confirm with us before placing the order if you need urgent turnaround delivery.
