Basic Info.
Model NO.
OD266*ID250*31mm
Customized
Customized
Material
Tungsten Carbide
Application
Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Grade
Yg8
Hardness
89.5hra
Density
14.8g/cm3
T.R.S
2600MPa
Usage
as Milling Roller
Outdiameter
266mm
Inner Diameter
250mm
Thickness
31mm
Groove
out Wall with Groove
Surface
Grinding and Polished
Transport Package
25kg. Carton
Specification
OD266*ID250*31mm
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Product Description

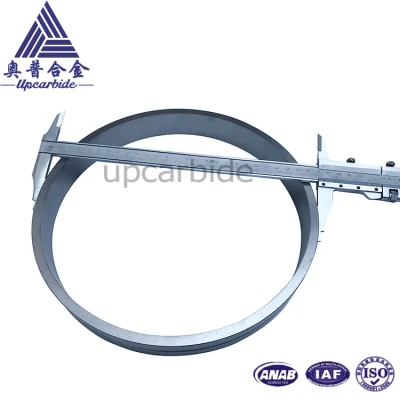

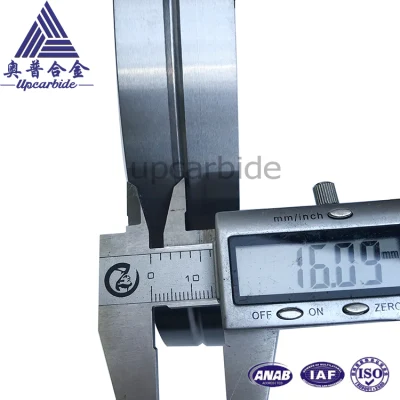

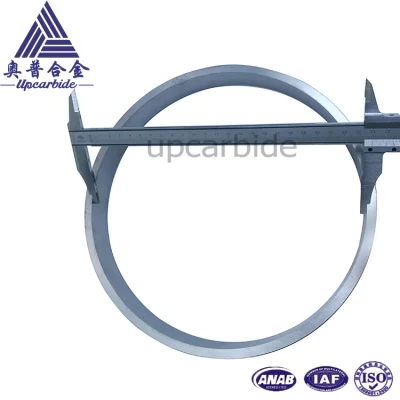

YG8 OD266*ID250*31mm 90 degree V groove tungsten carbide mill rings roller
YG8 OD266*ID250*31mm 90 degree V groove tungsten carbide mill rings roller
Specifications
1. Grade: YG8 , Density 14.8g/cm3,
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.
YG8 OD266*ID250*31mm 90 degree V groove tungsten carbide mill rings roller
Specifications
1. Grade: YG8 , Density 14.8g/cm3,
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.

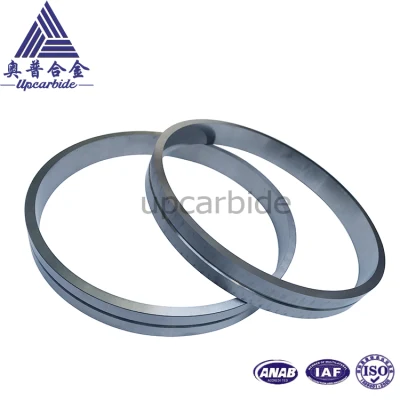

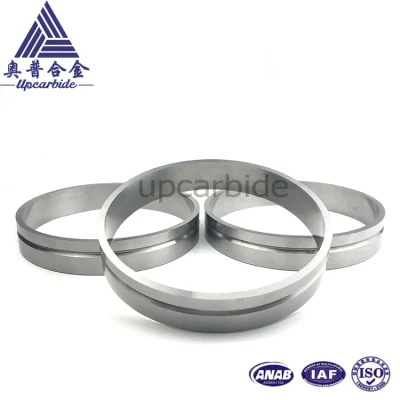

Products Show
Grades choosing
Common grades for all kinds metal
Grades for cold mill roll or hot mill roll steel
Common grades for all kinds metal
| Grade | Density g/cm3 | Hardnes HRA | T.R.S Mpa | Performance&application recommended |
| YG6A | 14.85 | 92.5 | 2000 | Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc. |
| YG8 | 14.7 | 89.8 | 2800 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YG11 | 14.4 | 88.5 | 2900 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YG15 | 14.0 | 87.0 | 3000 | Suitable for manufacturing punching dies, wear-resistant parts. |
| YG20 | 13.5 | 85.5 | 2800 | High bending strength,suitable for manufacturing progressive dies and other punching dies. |
| YG25 | 13.1 | 81.5 | 2950 | High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YS2T | 14.25 | 92.0 | 2500 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc. |
Grades for cold mill roll or hot mill roll steel
| Grade | Wc (%) | Co (%) | Ni (%) | Cr (%) | Density g/cm3 | Hardness ≥HRA | T.R.S ≥Nmm2 | Compression Strength ≥Nmm2 | Thermal Expansivity 10-6/K | Thermal Conductivity W/cm.k | Young's Elastic Modulus KN/mm2 |
| YGR60 | 70 | 30 | 12.8 | 78 | 2200 | 2900 | 7 | ||||
| YGR55 | 76 | 24 | 13.1 | 80 | 2400 | 3000 | 6.8 | 0.17 | 420 | ||
| YGR45 | 80 | 20 | 13.5 | 81 | 2500 | 3100 | 6.4 | 0.14 | 480 | ||
| YGR40 | 82 | 18 | 13.7 | 82.5 | 2600 | 3200 | 6.2 | 0.2 | 530 | ||
| YGR30 | 85 | 15 | 14.2 | 84.8 | 2700 | 3300 | 6.1 | 0.2 | 530 | ||
| YGR25 | 88 | 12 | 14.3 | 85 | 2600 | 3400 | 6 | 0.2 | 550 | ||
| YGH55 | 74 | 26 | 12.9 | 80 | 2200 | 3000 | 7 | 0.17 | 450 | ||
| YGH45 | 75 | 25 | 13.4 | 82 | 2400 | 3100 | 6.5 | 0.18 | 480 | ||
| YGH40 | 82 | 18 | 13.6 | 83.5 | 2500 | 3200 | 6.4 | 0.19 | 500 | ||
| YGH30 | 85 | 15 | 13.9 | 83.5 | 2400 | 3300 | 6.1 | 0.2 | 540 | ||
| YGH25 | 88 | 12 | 14.1 | 85 | 2300 | 3400 | 6 | 0.2 | 560 |
Common sizes:
| Outdiameter (mm) | Inner diameter (mm) | Height (mm) | Outdiameter (mm) | Inner diameter (mm) | Height (mm) | |
| 90 | 51 | 4~100 | 125 | 45 | 4~100 | |
| 90 | 20 | 125 | 80 | |||
| 90 | 3 | 130 | 40 | |||
| 95 | 75 | 130 | 50 | |||
| 95 | 68.5 | 140 | 90 | |||
| 95 | 74 | 142 | 78 | |||
| 100 | 65 | 150 | 90 | |||
| 100 | 62.1 | 210 | 200 | |||
| 100 | 20 | 161 | 108 | |||
| 105 | 46 | 212 | 120 | |||
| 105 | 65.5 | 158.8 | 87.32 | |||
| 105 | 81 | 170.66 | 95 | |||
| 105 | 75 | 180 | 87.32 | |||
| 110 | 20 | 180 | 120.65 | |||
| 110 | 30 | 228.3 | 126 | |||
| 110 | 90 | 208 | 126 | |||
| 114 | 94 | 228 | 130 | |||
| 115 | 65 | 285 | 160 | |||
| 115 | 60 | 320 | 260 | |||
| 120 | 46 | 280 | 240 | |||
| 120 | 65 | 318 | 280 | |||
| 120 | 60 | 600 | 550 | |||
| 125 | 45 | 800 | 200 |
Other sizes can be offered as per customers' requirements
