Basic Info.
Product Description
Applications
We Die's wire drawing system is used by wire producers to reduce a cross-section of wire by pulling the wire through a single die or a series of drawing dies. There are many applications for wire drawing, including electrical wiring, construction reinforcement, cables, medical and surgical applications, springs, staples, tire cord,and welding wire.
Welding Wire
Enough welding wire is produced every year to circle the globe several times. Hundreds of thousands of wire drawing dies are consumed during the production of welding wire.
Tire Cord
There are more than 1 billion tires produced every year and each tire contains bands of high tensile-strength steel wire encased in a rubber compound. Millions of wire dies are consumed each year in the production of tire cord wire.
Spring Wire
Millions of heavy duty and light vehicle engine valve, piston, fuel injection, transmission, and clutch springs are produced each year. Hundreds of thousands of wire drawing dies are consumed annually during the production of spring wire.
PC Strand
PC strand is primarily used in pre-stressed concrete buildings, bridges, parking decks, and other structures. High carbon steel rod is drawn through carbide wire dies before being used as concrete reinforcement.
Fasteners
All over the world millions of screws, bolts, nuts, rivets, nails, and staples are produced each year. Carbide wire drawing dies are essential to the production of these fasteners.
Wire Rope / Cable
Wire rope and cable are used in many industries - spanning aerospace and construction to medical and transportation. Wire drawing dies are used to form the control, constraint, and security cables used in these industries.
Specifications
No | Product | Items | Mold Core | Hardness |
1 | Wire-drawing Die | W103 | φ13*10 | 1400-1600 |
1600-1800 | ||||
2 | Wire-drawing Die | W104 | φ16*13 | 1400-1600 |
1600-1800 | ||||
3 | Wire-drawing Die | W105 | φ20*17 | 1400-1600 |
1600-1800 | ||||
4 | Wire-drawing Die | W106 | φ25*18 | 1400-1600 |
1600*1800 | ||||
5 | Wire-drawing Die | W107 | φ30*22 | 1400-1600 |
1600-1800 | ||||
6 | Wire-drawing Die | W108 | φ35*25 | 1400-1600 |
1600-1800 |
Items | Mold Core | Mantle | Coating Film | Specification | Tolerance | Compression Corner | Coining |
W109 | 40*27 | 53(-0.1~-0.2)*34 | AlCrN | 13.30 | 0-0.01 | 14 | 25% |
13.10 | |||||||
W108 | 35*25 | 12.80 | |||||
12.70 | |||||||
12.40 | |||||||
12.10 | |||||||
11.70 | |||||||
11.40 | |||||||
11.10 | |||||||
10.70 | |||||||
10.60 | |||||||
10.10 | |||||||
W107 | 30*22 | 9.90 | |||||
9.60 | |||||||
9.10 | |||||||
8.90 | |||||||
8.10 | |||||||
W106 | 25*18 | 7.10 | |||||
6.10 | |||||||
W105 | 20*11 | 5.10 | 30% | ||||
4.90 | |||||||
4.10 | |||||||
W104 | 15*10 | 3.80 | |||||
3.50 | |||||||
3.30 | |||||||
3.20 | |||||||
3.10 | |||||||
3.00 |
Pictures

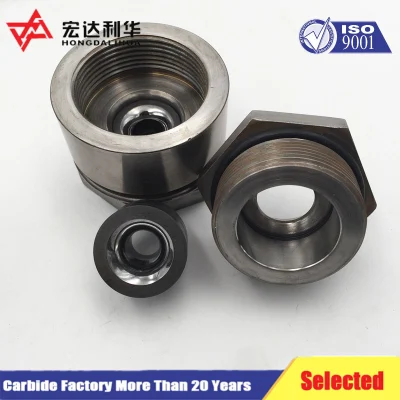

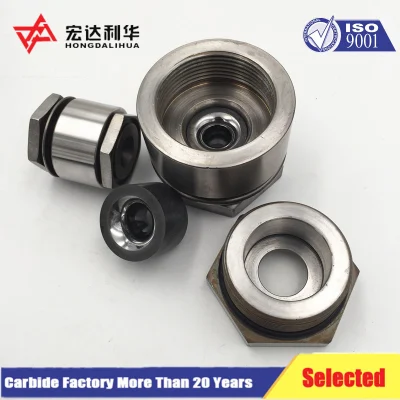

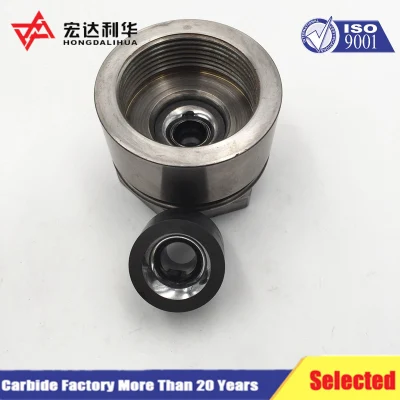

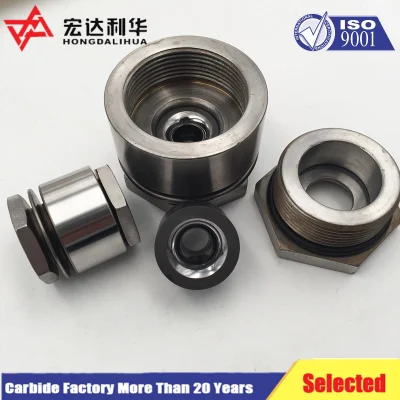

![Yg8 Tungsten Carbide Blank Nibs and Finished Wire Drawing Dies with Steel Case](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00punaiStIsPqD/Yg8-Tungsten-Carbide-Blank-Nibs-and-Finished-Wire-Drawing-Dies-with-Steel-Case.webp)
![Yg8 Tungsten Carbide Blank Nibs and Finished Wire Drawing Dies with Steel Case](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00zrFEWNaIOPbL/Yg8-Tungsten-Carbide-Blank-Nibs-and-Finished-Wire-Drawing-Dies-with-Steel-Case.webp)
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.
Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
Month capacity of 15Ton
We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine etc, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
DHL: 10-14 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
If there is any problem, please feel free to contact us. We are pleased to be on service of you in near future.
Payment:
Less than or equal to $1000: 100% advance via Paypal ,or Western Union
Over $1000: 30% T/T advance , Balance before shipment.
