Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valve for Chemical Industry

Get high-quality Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valves for the Chemical Industry. We are a leading factory producing durable industrial wear parts.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco -10479
OEM/ODM
Available
Shape
Non-Standard
Manufacturing Process
Hip Sintering
Transport Package
Wooden Cases
Specification
Customized
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
500PCS Per Month

Product Description

Product feature:

1. Heat resistant; very good wear resistant

2. HIP sintering, High hardness.

3.  Good impact toughness, chemical stability.

4. Excellent performance and good wear/corrosion resistance

5. High machining accuracy/precision



Tungsten Carbide valves trim parts is widely used on a choke valve in oil gas industry or other energy industry.
Tungsten Carbide valves assemblies parts are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.

Zonco has been specialized in customizing various kinds of non-standard tungsten carbide wear resistant components for more than 10 years.Our products and technologies have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. we are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement.  since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.



Our Main Advantages:
 1.  100% virgin material.
 2.  Competitive prices with 10-30% saved or more.
 3.  High quality standards and Strict products inspection.
 4.  Flexible production management with shorter lead time.
 5.  Quick and professional service and technical support.
 6.  Customized service based on customer's drawings or samples.

Zonco Common Tungsten Carbide Grades, Ghysical Mechanical Properties:
1. Cobalt Binder Grades
Grade WC% Co%   Grain size (μm)
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
YG06X 94 6 14.8-15.1 2400 91.5 0.8-1.2
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89 1.2-1.6
YG10.2 90 10 14.3-14.6 3800 91.7 0.7
YG11 89 11 14.3-14.7 2800 88.5 1.2-1.6
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
YG20 80 20 13.4-13.8 3100 85 1.2-1.6

2.   Nickel Binder Grades
Grade WC% Ni% Physical and mechanical properties Grain size (μm)
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
YN6 94 6 14.5-14.9 2000 90 1.2-1.6
YN9 91 9 14.3-14.6 2300 89 1.2-1.6
YN11 89 11 14.0-14.3 2600 88 1.2-1.6
Our material engineers have developed more than 15 material grades. If the listed grades above are not meet your requirement,
we are able to recommend or
develop new grade by customers' requirements.

Main Products Types
1.Radial Thrust Bearing (PDC,TC Bearing)

2.Tungsten Carbide Nozzles
3.Valve Trim (Plug,Seats,Stem, choke bean,bushing,Cage,sleeve)
4.MWD & LWD Carbide Parts (Sator and rotor for motor)
5.Carbide Parts for Downhole Tools (

Osc Valve and Stationary Valve parts)
6.Carbide Wear Parts for Mechanical Equipments
7.Carbide Drilling Dies
8.Carbide Buttons/Inserts
9.Other Carbide Wear Parts

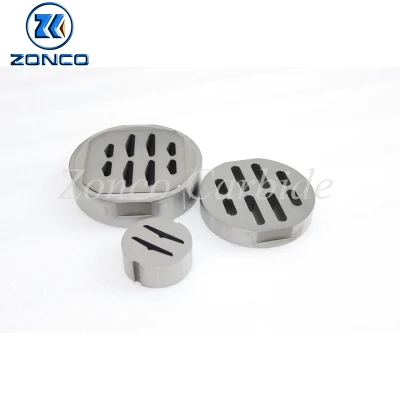

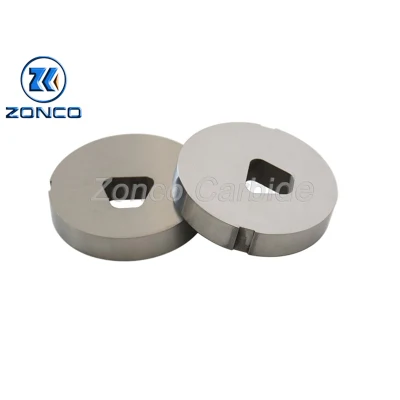

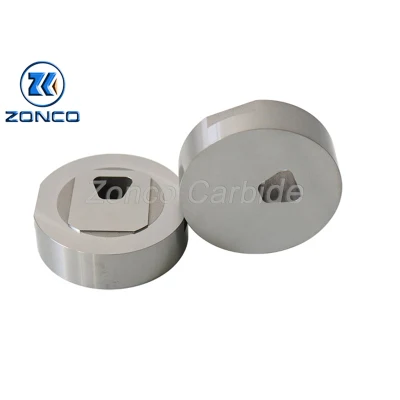

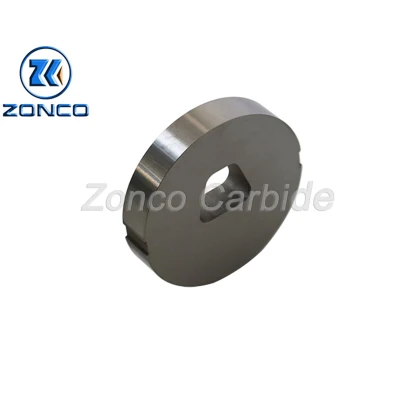

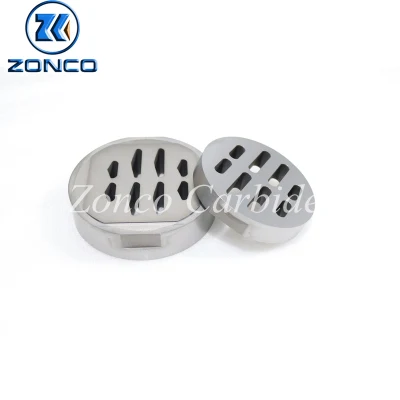

 Typical Valve Trim Photos:

Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valve for Chemical Industry

Company profile :

Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valve for Chemical Industry

Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valve for Chemical Industry
Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valve for Chemical Industry    Yg6/Yg8/Yg10 Tungsten Carbide Wear Parts Plate Trim Valve for Chemical Industry
