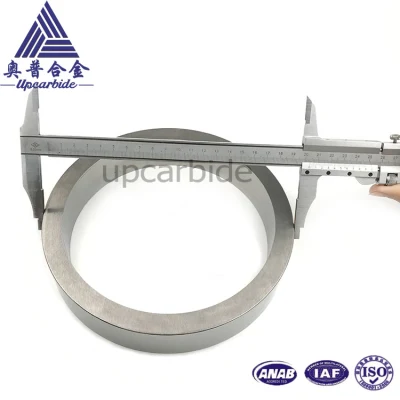

Yg8 8% Co 89.5hra Od203*ID172*36.0mm Polished Tungsten Carbide Rollers

Product Name: YG8 8% Co 89.5HRA OD203*ID172*36.0mm Polished Tungsten Carbide Rollers SEO Description: We are a factory specializing in manufacturing high-quality polished tungsten carbide rollers. Buy direct from the manufacturer!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
OD203*ID172*36.0mm
Grade
Yg6X
Hardness
92.0hra
Density
14.9g/cm3
T.R.S
2600MPa
Usage
as Milling Roller
Outdiameter
203mm
Inner Diameter
172mm
Thickness
36.0mm
Groove
out Wall with Groove
Surface
Grinding and Polished
Transport Package
25kg. Carton
Specification
OD203*ID172*36.0mm
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month

Product Description

YG8 8% Co 89.5HRa OD203*ID172*36.0mm polished tungsten carbide rollers
YG8 8% Co 89.5HRa OD203*ID172*36.0mm polished tungsten carbide rollers

Specifications

1. Grade: YG8 , Density 14.8g/cm3,
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.


Products Show
Yg8 8% Co 89.5hra Od203*ID172*36.0mm Polished Tungsten Carbide Rollers
Yg8 8% Co 89.5hra Od203*ID172*36.0mm Polished Tungsten Carbide Rollers
Yg8 8% Co 89.5hra Od203*ID172*36.0mm Polished Tungsten Carbide Rollers
Yg8 8% Co 89.5hra Od203*ID172*36.0mm Polished Tungsten Carbide Rollers




Grades choosing
Common grades for all kinds metal
Grade Density g/cm3 Hardnes HRA T.R.S Mpa Performance&application recommended
YG6A 14.85 92.5 2000 Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc.
YG8 14.7 89.8 2800 High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc.
YG11 14.4 88.5 2900 High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc.
YG15 14.0 87.0 3000 Suitable for manufacturing punching dies, wear-resistant parts.
YG20 13.5 85.5 2800 High bending strength,suitable for manufacturing progressive dies and other punching dies.
YG25 13.1 81.5 2950 High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc.
YS2T 14.25 92.0 2500 Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc.


Grades for cold mill roll or hot mill roll steel
Grade Wc
(%)		 Co
(%)		 Ni
(%)		 Cr
(%)		 Density g/cm3 Hardness
≥HRA		 T.R.S
≥Nmm2
Compression
Strength
≥Nmm2
Thermal
Expansivity
10-6/K
Thermal
Conductivity
W/cm.k
Young's
Elastic
Modulus
KN/mm2
YGR60 70   30   12.8 78 2200 2900 7
YGR55 76   24   13.1 80 2400 3000 6.8 0.17 420
YGR45 80   20   13.5 81 2500 3100 6.4 0.14 480
YGR40 82   18   13.7 82.5 2600 3200 6.2 0.2 530
YGR30 85   15   14.2 84.8 2700 3300 6.1 0.2 530
YGR25 88   12   14.3 85 2600 3400 6 0.2 550
YGH55 74 26     12.9 80 2200 3000 7 0.17 450
YGH45 75 25     13.4 82 2400 3100 6.5 0.18 480
YGH40 82 18     13.6 83.5 2500 3200 6.4 0.19 500
YGH30 85 15     13.9 83.5 2400 3300 6.1 0.2 540
YGH25 88 12     14.1 85 2300 3400 6 0.2 560
Other grades and sizes can be offered as per customers' requirements


Common sizes:
Outdiameter  (mm)  Inner diameter          (mm)     Height             (mm)    Outdiameter  (mm)   Inner diameter          (mm)        Height          (mm)
90 51 4~100   125 45 4~100
90 20   125 80
90 3   130 40
95 75   130 50
95 68.5   140 90
95 74   142 78
100 65   150 90
100 62.1   210 200
100 20   161 108
105 46   212 120
105 65.5   158.8  87.32
105 81   170.66 95
105 75   180 87.32
110 20   180 120.65
110 30   228.3 126
110 90   208 126
114 94   228 130
115 65   285 160
115 60   320 260
120 46   280 240
120 65   318 280
120 60   600 550
125 45   800 200
Other sizes can be offered as per customers' requirements
