Basic Info.
Model NO.
Customized
Usage
for Cold Milling
Surface
Polish or Blank
Grade
Yg15
Application
for Reinforcing Steel Wire
Transport Package
Carton
Specification
tungsten and coblat powder
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
3 Tons/ Month
Product Description

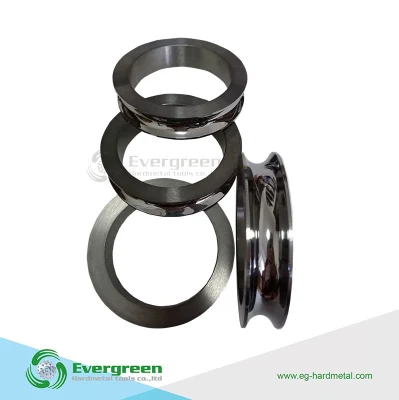

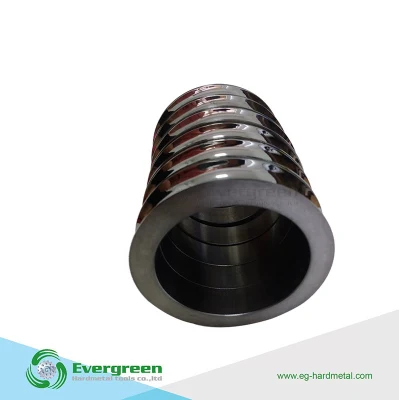

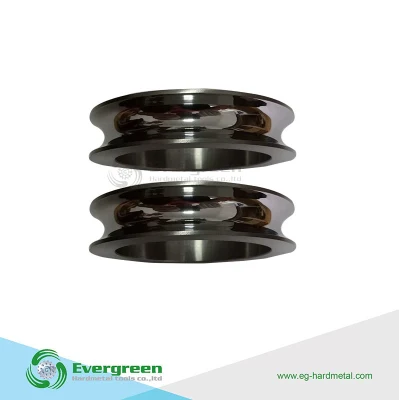

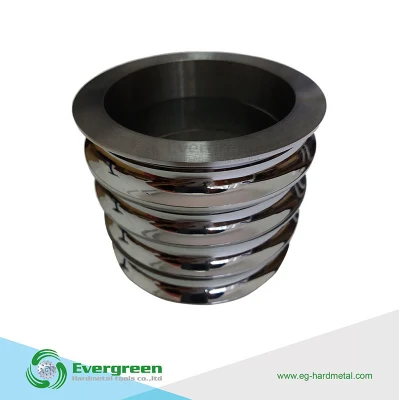

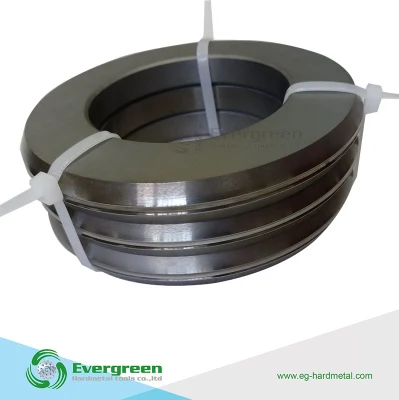

Yg8 Carbide Yg15 Tungsten Carbide Wire Guide Rollers TC roller
Profiling rolls type:
PR3.0, PR3.5, PR4.0, PR4.5, PR5.0, PR5.5, PR6.0, PR6.5, PR7.0, PR7.5,
PR8.0, PR8.5, PR9.0, PR9.5, PR10.0, PR10.5, PR11.0, PR11.5, PR12.0.
Tungsten carbide cold rolls is the main products of Evergreen, our cold rolls is used in reinforcement wire cold rolling and forming. The material of rolls blanks we used are sintere
d in HIP furnace, 100% virgin material.
Tungsten carbide roll ring characteristics
1. Contains a microscopic hard spots, have a high resistance to abrasion
2. The macro-hardness is high, up to 69 ~ 81HRC or more.
3. Material hardening tendency serious.
4. Material with low thermal conductivity.
5. High intensity of the material.
6. Stable chemical properties, very high melting point.
Grade Application
| GRADE | DENSITY | TRS | HARDNESS | Application recommended |
| (g/cm3) | (N/mm2) | (HRA) | ||
| YG11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | 3200 | 88 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YG20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG16C | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| G18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies |
| YG25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
Product Showcase
Other Hot Sell Products
About us
Zhuzhou Evergreen hardmetal Tools Co., Ltd., is a professional manufactuer of cemented carbide products in China, we have been in this line for more than 25 years. The tools made from us are with long life time and stable machining performance. If there is any interest please feel free to let us know, free samples are available.
