Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Looking for durable and high precision tungsten carbide bushings? Look no further! We are a factory with Yg8 Durable Bearing Tungsten Carbide Bushings. Satisfaction guaranteed.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
carbide0004
Certification
ISO, SGS
Place of Origin
Zhuzhou China (Mainland)
Model Number
64.95-56.05-65.00
Particle
0.6-0.8
Name
Tungsten Carbide Sleeves for Pump
Hardness
92.5-93.5hra
Cer
ISO9001 SGS
Material
100% Raw Materials
Performance
Excellent Wear Resistance
Advantage
Over 20 Years Experience in This Line
Transport Package
Standard or Customised
Specification
ISO9001, 2008 SGS
Trademark
LIHUA
Origin
Zhuzhou, China (Mainland)
Production Capacity
5000kg/Mon

Product Description

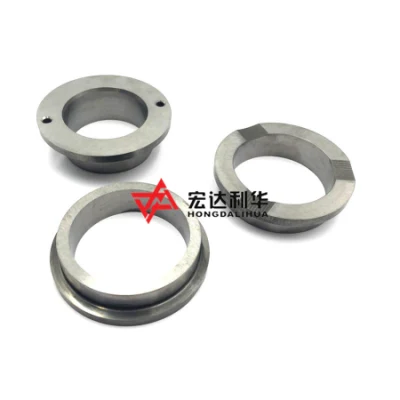

Durable Bearing Tungsten Carbide Bushings
Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Advantages:

(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;

(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;

(3) . No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;
Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

The grade information for sintered carbide shaft sleeves

Grade Binder(Wt%) Density(g/cm3) Hardness(HRA) TRS(over N/mm2)
YG6 6 14.8 90.0 1520
YG6X 6 14.9 91.0 1450
YG6A 6 14.9 92.0 1540
YG8 8 14.7 89.5 1750
YG12 12 14.2 88.0 1810
YG15 15 14.0 87.0 2050
YG20 20 13.5 85.5 2450
YG25 25 12.1 84 2550


Grade Density(g/cm3) T.R.S Hardness Performance & Application Recommended
YG6 14.9 2150 89.5 Qualified for finish maching and semi-finished maching for the cast iron,non-ferrous metal alloy and unalloyed materials
YG6X 14.9 1560 91 Qualified for maching of chiled cast iron
YG6A 14.8 1580 91 Alloy cast iron,refrectory steel,alloy steel,Also qualified for the maching of common cast iron
YG8 14.7 2320 89.5 High bending strength,wear resistance lower than YG6A,used for processing blades,wear resisitance parts etc.
YG11C 14.4 2260 87.5 Qualified for molding the drills for heavy-duty rock drill,detachable bits used for deep hole drilling,rock drill torlley,etc.
YG15 14.0 2500 87.5 Used for punch dies,stamping dies and wear resistance
YS2T 14.5 2800 92.5 Qualified for low speed rough maching,milling,titanium alloy and refractory alloy,especially for cut off tool and sick prick.
YL10.2 14.5 3400 92.5
YG20 14.6 2480 83.5 qualified for making dies with low impact such as punching watch parts,battery shells,small screw caps etc.

About Lihua Cemented Carbide Factory

Established in 1990, specialized in production carbide products more than 20 years and located in Zhuzhou city which is the hometown of tungsten carbide in China.
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc.

Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Monthly Capacity of 15 Tons

We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity has up to 15 Tons per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison


Strictly QC

We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.

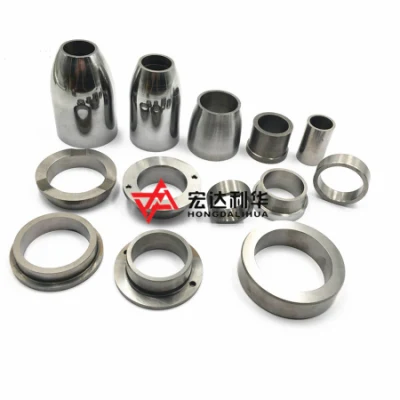

Our Products
Yg8 Durable Bearing Tungsten Carbide Bushings with High PrecisonYg8 Durable Bearing Tungsten Carbide Bushings with High PrecisonYg8 Durable Bearing Tungsten Carbide Bushings with High PrecisonYg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Our Exhibiitions & Qualifications
Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Our Package
Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Yg8 Durable Bearing Tungsten Carbide Bushings with High Precison

Contact:
Foreign Sales Manager : Coco Su
Factory Add: Building B-11,E-commerce Industrial Park ,Xinma South Road ,Tianyuan Zone ,Zhuzhou City ,Hunan Provice ,China 412000


Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
