Basic Info.
Product Description
Application for tungsten carbide plates: Main used as wear parts and protection parts in different designs and dimensions, normally fixed by brazing process or fastening. High hardness with suitable bending strength will provide very long tool life for the carbdie parts, can save your costs and time for production.
Some sizes of tungsten carbide plates in K10, K20, K30, K40:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.

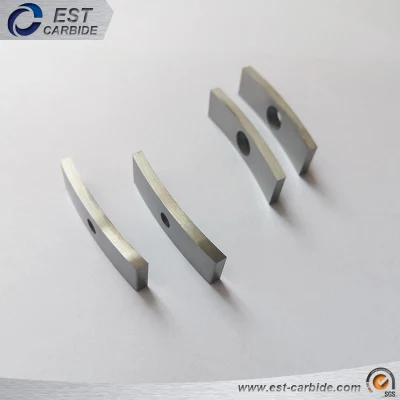

![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00zbtaujwKOYkQ/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
We provide a wide range of tungsten carbide plates in different dimensions, also have other shapes, like plates with shape cutting angles.
Grade list for tungsten carbide plates:
ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Compression Strength(N/mm2) | Grain Size(μm) |
HRA (ISO3738) | ||||||
E10S | 6 | 14.8 | 90.5 | 2900 | 5100 | 4.0 |
E20S | 13.5 | 14.0 | 90 | 3600 | 5200 | 1.5 |
E30 | 12 | 14.25 | 90 | 3500 | 4900 | 1.8 |
E40 | 12.5 | 14.1 | 89.5 | 3600 | 4600 | 2.0 |
E50 | 14.0 | 14..0 | 88.5 | 3700 | 4500 | 2.0 |
E60 | 15 | 13.9 | 87.5 | 3500 | 4200 | <0.5 |
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00zqEQpOdgVGoT/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00uqTtgmJaIYbE/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00IkTauQJEoUot/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
We also have the standard tungsten carbide plate in stock, please feel free to contact us if you need more information.
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00PbEQpRdHmYoT/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00HkEarPmFvGcT/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00LkaQpVmnsUqt/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00LoQEubmCvfqT/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
![Yg8 Two Sides Curved Tungsten Carbide Plate Customized Ground](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00PbaQpeAERfqt/Yg8-Two-Sides-Curved-Tungsten-Carbide-Plate-Customized-Ground.webp)
