Basic Info.
Model NO.
YN8Tungsten carbide
Type
O-Ring Mechanical Seals
Balance
Balanced
Function
for Pump, Compressor
Certificate
ISO9001
Replacement to
Mechanical Seal
Transport Package
Carton
Specification
as requirement
Trademark
JR
Origin
China
HS Code
848420090
Production Capacity
1000000PCS/Year
Product Description
High Quality Mechanical Seals
Corrosion Resistant Pump Mechanical Seal
Pump Mechanical Seal Description:

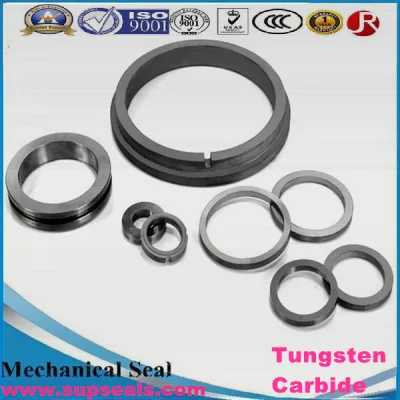

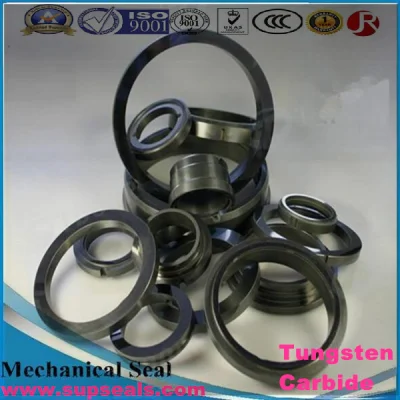

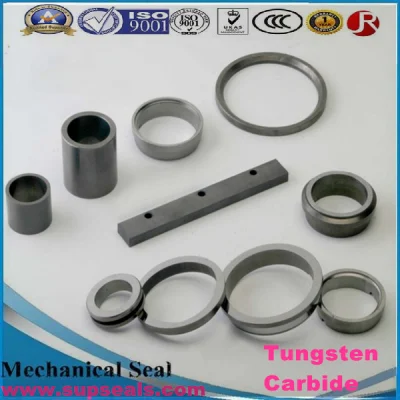

Sealing ring is the main sealing element of rotary joint. The superior wear
resistance characteristics of tungsten carbide roll rings provide you the
highest pass performance in addition to the very good surface finish.These are
used in Oil Refineries,Petrochemical plants,Fertilizer Plants,and Pharmaceutical
Industries such as pumps, compressors and agitators.Various sealing rings

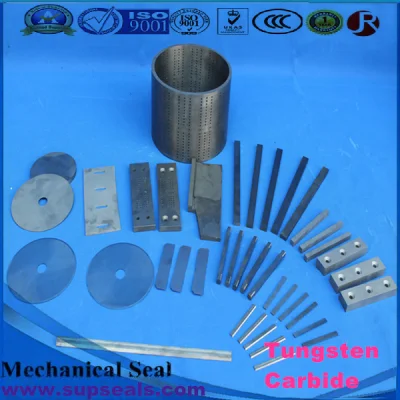

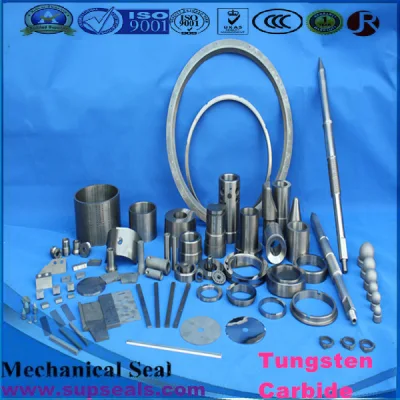

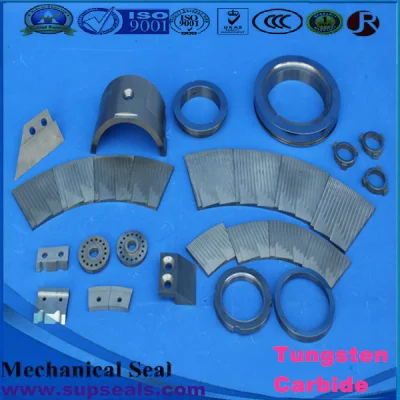

with complicated shape, either blanks or finshed products can be provided.
Pump Mechanical Seal Grade Rocommended:
Description:
1.Chemical Constituent:
Tungsten carbide with 4~25% cobalt binder, 6~15% nickel binder, WC-tic-Ni/Cr alloy etc.
2.Cutstar Carbide Standard Grades:
Cobalt Binder Grades
Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG6A | 6 | 14.9 | 92.0 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
Remarks:
1. 1N/mm²=145.038PSI
2. Cutstar Carbide can develop new grade for customer's special application.
Contact us with your requirements.
You will receive an excellent and competitive quotation and more importantly our sincere support
3. Application Field:
Mining Industry
Automotive Industry
Engineering Industry
Construction Industry
Petrochemical Industry
Customer-related Industries
All ranges of mechanical seals for Flygt Pumps, GF Pumps,
APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,
Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or
drawing, and design as your request.
With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal,
cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.
Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good
insulation property, anti-toxic, good air-permeable, etc.
Welcome to quote for more details.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to
Ningbo or Shanghai airport directly. All our clients, from home or abroad,
are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to q
uality controlling from the very beginning to the very end.
Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal
or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps,
Compound & homogeneous pumps, Homogeneous & emulsification pumps
and so on. Please kindly visit our website: supseals.en.made-in-china.com
