Product Description

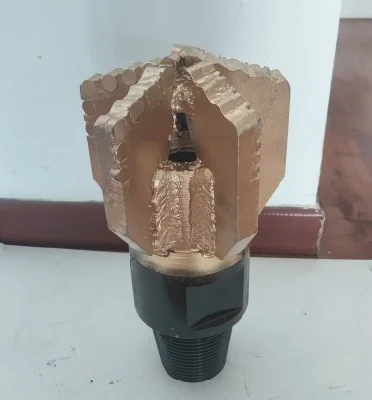

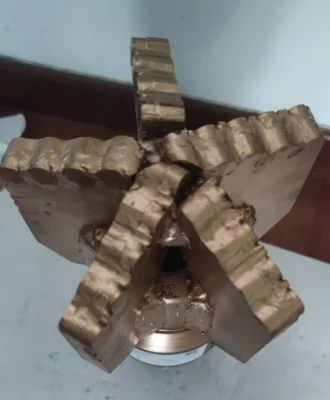

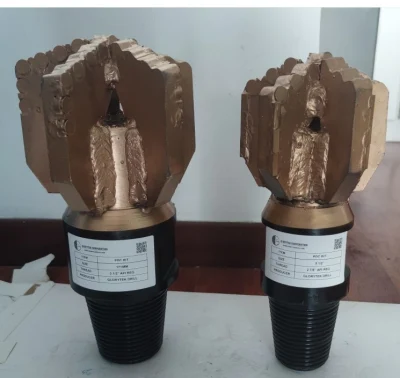

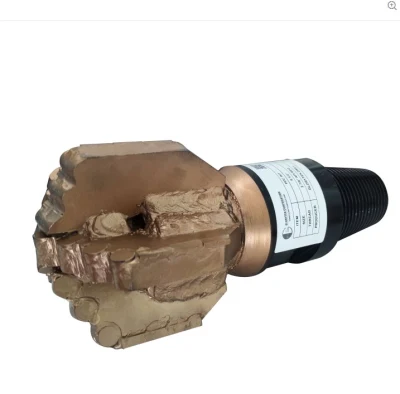

5 blade pdc bit 171mm water well drilling/HDD drilling tools
Type:PDC bits ( from 3 7/8''-17 1/2'' Steel body and Matrix body)
Applicable:Oil field, Water well, Geothermal, and Underground foundation work
Formation:Sticky, Soft, Medium hard, Hard formation
blade:4 / 5 / 6 / 7 / 8 / 9
Packing:wooden/ steel box
Payment Term:T/T, L/C, Westen Union
MOQ:1 Piece
Delivery Time:Within 7-15 work days
-For more information or special inquirement,pls feel free to contact us.
1.PDC drill bit is used for weak and dangerous rock, foundation treatment, broken ground and other grouting reinforcement drilling;
2. It is used for tunnel ventilation, exhaust gas, monitoring drilling of rock mass buildings and concrete sampling drilling.
3. The application of balancing software makes the angle of cutting teeth more scientific.
| Size | 6-1/2'' |
| Blade | 5 |
| Connection | 3 1/2REG |
| Body Tpye | Steel body |
| Types of PDC Drag Bit & Application | ||
| Type | Application | |
| PDC 4-wing Drag Bit | Normal | Fit for f <6 rock formations |
| Reinforced | Fit for f <8 rock formations | |
| PDC Multi-wing Drag Bit | Normal | Fit for f <6 rock formations |
| Reinforced | Fit for f <8 rock formations | |
| PDC Drag Bits Specification | ||||||
| Type | Size (mm) | Heigh (mm) | Wings (pcs) | PDC Cutter ( pcs) | Nozzle (pcs) | Nozzle Size (mm) |
| Normal Reinforced | 94 | 170 | 4 | 16 | 5 | 6 |
| 113 | 195 | 4 | 20 | 5 | 8 | |
| 133 | 220 | 6 | 30 | 5 | 8 | |
| 153 | 250 | 6 | 36 | 5 | 10 | |
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A:1pc.
Q:How to place an order?
A:1) Inform size and model/main usage/quantity
Q:What is the Pament?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
