Basic Info.
Model NO.
AAAAA-Bushings-RD01-Carbide
Applications
for Kmt, Omax, Flow etc Water Jet Machine
Transport Package
Standard Packing for Cemented Carbide Rods
Specification
6.0mm 7.14 mm 6.35mm 8.0mm 9.45mm
Trademark
RYDMET CARBIDE
Origin
China
HS Code
8466939000
Production Capacity
2000 PCS /Month
Product Description
The Introduction of the cemented Tungsten Carbide Components, Wear Parts.
Tungsten Carbide or Hardmetal is really a kind of alloy that give you surprise, after so many years of innovation, many grades were developed to cater to the demand of many Industries.
Thanks to so many years of experience and the high accuracy of our machines, we are now almost able to make any types of Carbide Components ( wear Parts) we meet, they have started to reply on Rydmet Carbide's Carbide Wear Comnponents and Wear Parts.
We like to provide the professional solutions for our clients through the satisfied products and service.
Besides the traditional Carbide Seal Faces,Rings, Sleeves, Bushings, Nozzles,Valve Part, Balls, our Engineering Team are always willing to challenge themselves in making irregular Carbide Components and Parts.
The following is some of our Tungsten Carbide Components/Wear Parts we make usually, usually:

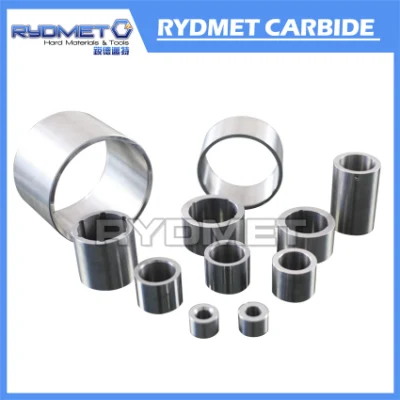

• Tungsten Carbide Bushings
• Carbide Sleeves for centrifugal pump
•Tungsten Drill Guide
Carbide Mechanical Sea Faces
Carbide Shaft Sleeves
Carbide Plugs
Carbide Valve Balls.
•Tungsten Carbide Valve Seats and Stems
• Tungsten Carbide Oil and Natural Gas Wear Parts and Components
• Tungsten Carbide Nozzles
• Tungsten Carbide High Pressure Pump Components
• Tungsten Carbide for -Flow Restrictors
• Centrifugal Pump Components
• Centrifugal Carbide Wear Tiles
• Carbide Wear Parts for Choke Valve, Grate Valve, Control Valve..etc.
we also make the Carbide irregular carbide components from our clients that we can not name and don't know what is the application at all.
According to the specific Application, the Carbide Wear Parts, Components can be available in Cobalt and Nickel binded Grade and special prepared Grades, which can almost solve all the wear or erosion problems we are facing.
| Rydmet Standard Carbide Grade Chart for Wear Parts, Components | ||||||
| Grade Code | Binder Content & Type | Hardness (Ra) | Hardness | Density (g/cm3) | Transverse Rupture Strength (TRS) | Grain Size |
| (HV30) | ||||||
| RD06X | 6% Co | 91.5 | 1530 | 14.95 | 2,300 | Fine |
| RD08X | 8% Co | 90.8 | 1450 | 14.75 | 2,500 | Fine |
| RD15X | 15% Co | 88.9 | 1250 | 13.9 | 2,700 | Fine |
| RD06M | 6% Co | 90.3 | 1380 | 14.95 | 2500 | Medium |
| RD08M | 8% Co | 89.5 | 1300 | 14.75 | 2600 | Medium |
| RD011M | 11% Co | 89.2 | 1270 | 14.3 | 2,650 | Medium |
| RD015M | 15% Co | 87 | 1070 | 14.0 | 2,650 | Medium |
| RD06S | 6% Co | 93 | 1790 | 14.95 | 2,600 | Submicron |
| RD10S | 10% Co | 91.8 | 1580 | 14.45 | 2,650 | Submicron |
| RD10C | 10% Co | 88 | 1160 | 14.5 | 2,700 | Coarse |
| FC11C | 11% Co | 87.5 | 1110 | 14.45 | 2,800 | Coarse |
| RD06N | 6% Ni | 90 | 1350 | 14.9 | 1,800 | Medium |
| RD08N | 8% Ni | 88.5 | 1700 | 14.7 | 1,900 | Medium |
| RD10N | 10% Ni | 88 | 1160 | 14.5 | 1,930 | Medium |
| RD12N | 12% Ni | 87.5 | 1110 | 14.1 | 1,950 | Medium |
| RD06N2 | 6% Ni+Cr | 89 | 1250 | 14.2-14.9 | 1,600 | Medium |
| RD08N2 | 8% Ni+Cr | 88.5 | 1210 | 14.0-14.8 | 1,700 | Medium |
| RD06UF | 6% Co | 94 | 2010 | 14.9 | 3,800 | Ultra-fine |
* Cutstom Sizes are also acceptable.
