Basic Info.
Model NO.
tungsten carbide cutting knife
Applicable Process
Process Materials
Suitable Substrates
Corrugated Board/Paper/Metal/Fibre/Rubber Cutting
Packaging Material
Plastic
Surface
Mirror Polished
Wc+Co Powder
100% Virgin Material
Material
Tungsten Carbide
Customized
Customized
Main Using Purpose
Corrugated Board/Rubbers/Tobacco/Metal Industry
Transport Package
Standard Export Packing
Specification
68/130*40/97*0.7/4.0mm
Trademark
STAR CARBIDE
Origin
China
HS Code
8208101900
Production Capacity
100000 Pieces/Year
Product Description
Star's custom industrial cutting blades are utilized by a variety of industries, including corrugated board,tobacco,chemical fiber,glass fiber,textile,battery,leatherware,printing,packing,paper making and many more.

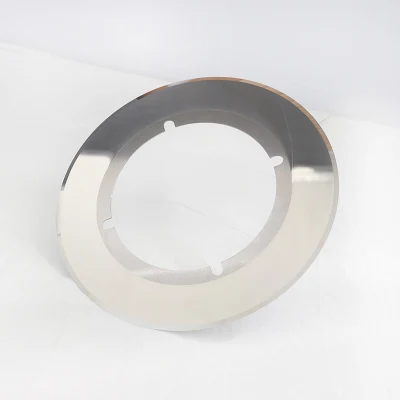

CIRCULAR BLADES FOR SLITTING CORRUGATED BOARD
Application:widely used for slitting corrugated boards in domestic and oversea machines or production lines.
Characteristic:this kind of knive is made by best pure tungsten carbide material,guaranteed high hardness and high wear resistance,the cutting edge is very scharp,flatness and high precision degree.
RUBBERS CUTTING KNIFE (ROTARY BLADE) Application:widely use for rubber,packaging tape,textile cutting,such as tire industry and non-woven fabric slitting.
Charateristic:the cutting edge is very sharp and no chips,the edge of cutting production is very somooth and flat, and no burr and dent.
BLADES FOR BATTERY INDUSTRY
Application:widelyl use for battery industry cutting,and all kinds of non ferrous foil cutting.
Characteristic:the blade has good appearance,high consistency and wear resistance,the cutting edge can pass the inspection of enlarging 200 times without chips on it,guranteed cutting quality,long working life, also the frequency of replacing blades is very low with high cost performance
BLADES FOR TOBACCO MACHINES
Application:widely used for slitting cigarette,cigar and etc in tobacco industry.
Characteristic:the cutting edge of knife is very sharp,it has high hardness and precision
BLADES FOR METAL CUTTING
Application:metal sheet slitting circular kinves also can be called rolling shear knives,application to roll cut metal coil,metal sheet,
plastic sheet which are applied to rolling shear machine,and widly use for home appliances,building materials,hard ware,packaging,
automobile industry and etc.
PROFESSIONAL GRADE AND PERFORMANCE OF TUNGSTEN CARBIDE BLADES
Customized is available, Star spare parts company welcomes your enquiry.

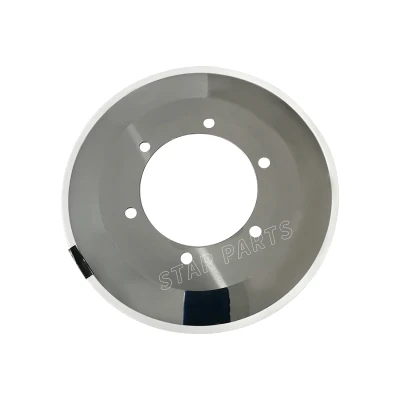

CIRCULAR BLADES FOR SLITTING CORRUGATED BOARD
Application:widely used for slitting corrugated boards in domestic and oversea machines or production lines.
Characteristic:this kind of knive is made by best pure tungsten carbide material,guaranteed high hardness and high wear resistance,the cutting edge is very scharp,flatness and high precision degree.
| ITEMS | STANDARD SIZE (mm) | HOLES | AVAILABLE FOR MACHINE | ||||||
| OD | ID | T | |||||||
| 1 | 230 | 110 | 1.1 | 6 x φ9 | FOSBER | ||||
| 2 | 230 | 135 | 1.1 | 4 key slots | FOSBER | ||||
| 3 | 220 | 115 | 1 | 3 x φ9 | AGNATI | ||||
| 4 | 240 | 32 | 1.2 | 2 x φ8.5 | BHS | ||||
| 5 | 240 | 115 | 1 | 3 x φ9 | AGNATI | ||||
| 6 | 250 | 150 | 0.8 | PETERS | |||||
| 7 | 257 | 135 | 1.1 | FOSBER | |||||
| 8 | 260 | 112 | 1.5 | 6 x φ11 | ORANDA | ||||
| 9 | 260 | 140 | 1.5 | ISOWA | |||||
| 10 | 260 | 168.3 | 1.2 | 8 x φ10.5 | MARQUIP | ||||
| 11 | 270 | 168.3 | 1.5 | 8 x φ10.5 | HSEIH | ||||
| 12 | 270 | 140 | 1.3 | 6 x φ11 | VATANMAKEINA | ||||
| 13 | 270 | 170 | 1.3 | 8 x φ10.5 | |||||
| 14 | 280 | 160 | 1 | 6 x φ7.5 | MITSUBISHI | ||||
| 15 | 280 | 202 | 1.4 | 6 x φ8 | MITSUBISHI | ||||
| 16 | 291 | 203 | 1.1 | 6 x φ8.5 | FOSBER | ||||
| 17 | 300 | 112 | 1.2 | 6 x φ11 | TCY | ||||
| acceptable for customer's design | |||||||||

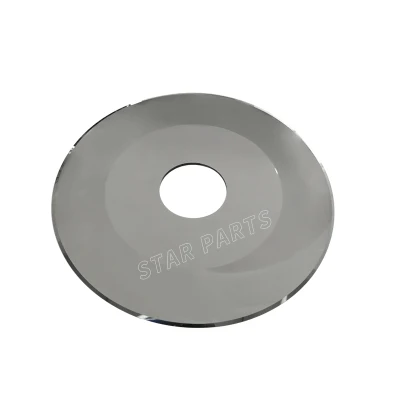

RUBBERS CUTTING KNIFE (ROTARY BLADE)
Charateristic:the cutting edge is very sharp and no chips,the edge of cutting production is very somooth and flat, and no burr and dent.
| ITEMS | STANDARD SIZE (mm) | ||
| OD | ID | T | |
| 1 | 150 | 25.4 | 2.00 |
| 2 | 180 | 25.4 | 2.00 |
| 3 | 180 | 25.4 | 2.50 |
| 4 | 180 | 25.4 | 3.00 |
| 5 | 200 | 25.4 | 2.00 |
| 6 | 200 | 25.4 | 2.50 |
| 7 | 200 | 25.4 | 3.00 |
| 8 | 250 | 25.4 | 2.00 |
| 9 | 250 | 25.4 | 2.50 |
| 10 | 250 | 25.4 | 3.00 |
| 11 | 300 | 25.4 | 2.00 |
| 12 | 300 | 25.4 | 2.50 |
| 13 | 300 | 25.4 | 3.00 |
| 14 | 350 | 25.4 | 2.50 |
| 15 | 350 | 25.4 | 3.00 |
| 16 | 400 | 25.4 | 3.00 |
| 17 | 400 | 25.4 | 3.50 |
| 18 | 400 | 25.4 | 4.00 |
| acceptable for customer's design | |||

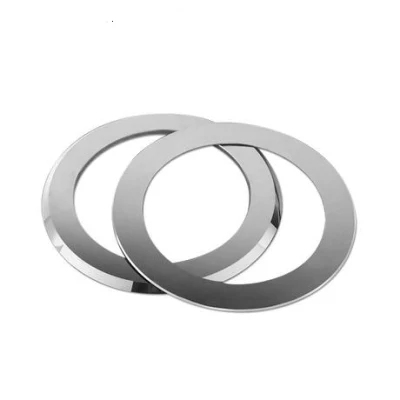

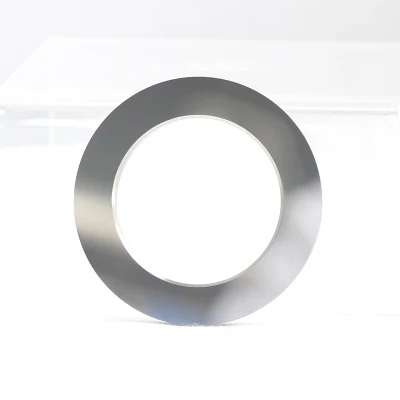

BLADES FOR BATTERY INDUSTRY
Application:widelyl use for battery industry cutting,and all kinds of non ferrous foil cutting.
Characteristic:the blade has good appearance,high consistency and wear resistance,the cutting edge can pass the inspection of enlarging 200 times without chips on it,guranteed cutting quality,long working life, also the frequency of replacing blades is very low with high cost performance
| ITEMS | STANDARD SIZE OD*ID*T (mm) | REMARK | ||
| 1 | φ68/72/76*φ46*0.5/1 | UPPER BLADE | ||
| φ60*φ40*5 | LOWER BLADE | |||
| 2 | φ98*φ66*0.7 | UPPER BLADE | ||
| φ80*φ55*5 | LOWER BLADE | |||
| 3 | φ100*φ65*0.7 | |||
| φ100*φ65*2 | ||||
| φ100*φ65*1 | ||||
| φ100*φ65*3 | ||||
| 4 | φ110*φ90*1 | |||
| φ110*φ75*3 | ||||
| φ110*φ90*3 | ||||
| 5 | φ130*φ88*1 | |||
| φ130*φ70*3 | ||||
| φ130*φ97*0.8 | ||||
| φ130*φ95*4 | ||||
| acceptable for customer's design | ||||
BLADES FOR TOBACCO MACHINES
Application:widely used for slitting cigarette,cigar and etc in tobacco industry.
Characteristic:the cutting edge of knife is very sharp,it has high hardness and precision
| ITEMS | STANDARD SIZE (mm) | ||
| OD | ID | T | |
| 1 | 60 | 19 | 0.27 |
| 2 | 61 | 19.05 | 0.3 |
| 3 | 63 | 19.05 | 0.254 |
| 4 | 63 | 15 | 0.3 |
| 5 | 64 | 19.05 | 0.3 |
| 6 | 85 | 16 | 0.25 |
| 7 | 89 | 15 | 0.38 |
| 8 | 100 | 15 | 0.3 |
| 9 | 100 | 15 | 0.35 |
| 10 | 100 | 16 | 0.3 |
| 11 | 100 | 16 | 0.2 |
| 12 | 100 | 15 | 0.2 |
| 13 | 110 | 22 | 0.5 |
| 14 | 140 | 46 | 0.5 |
| acceptable for customer's design | |||
BLADES FOR METAL CUTTING
Application:metal sheet slitting circular kinves also can be called rolling shear knives,application to roll cut metal coil,metal sheet,
plastic sheet which are applied to rolling shear machine,and widly use for home appliances,building materials,hard ware,packaging,
automobile industry and etc.
| ITEMS | STANDARD SIZE OD*ID*T (mm) | ITEMS | STANDARD SIZE OD*ID*T (mm) | |||||
| 1 | φ150.1*φ125*10 | 13 | φ250*φ125*10.1 | |||||
| 2 | φ160*φ55*10.10 | 14 | φ250*φ125*15.1 | |||||
| 3 | φ162.1*φ95*22.375 | 15 | φ250.1*φ125*5 | |||||
| 4 | φ181*φ109*10.1 | 16 | φ250.1*φ160*7 | |||||
| 5 | φ185.06*φ90*10 | 17 | φ250.3*φ160*15 | |||||
| 6 | φ185.15*φ175*30 | 18 | φ253*φ159*14.1 | |||||
| 7 | φ194*φ145.4*22.22 | 19 | φ255*φ160*10 | |||||
| 8 | φ201*φ135*10 | 20 | φ260*φ160*10 | |||||
| 9 | φ204*φ126*5.08 | 21 | φ280.15*φ175*30 | |||||
| 10 | φ220*φ130*4.5 | 22 | φ300.15*φ150*5 | |||||
| 11 | φ249.6*φ160*8 | 23 | φ315*φ280*20 | |||||
| 12 | φ250*160*10 | 24 | φ340*φ225*20 | |||||
PROFESSIONAL GRADE AND PERFORMANCE OF TUNGSTEN CARBIDE BLADES
| ISO GRADE | HARDNESS (HRA)±0.5 | DENSITY (g/cm³) ±0.2 | T.R.S (MPa) | APPLICATION | |||||||
| K10 | 92.8 | 14.75-14.90 | 2400 | Sub-micron grain,suitable for cutting paperboard,fiber optic,leather. Apply to finish machining of non-ferrous metals and woodworking tools. | |||||||
| K05 | 92.3 | 14.55-14.7 | 2500 | Sub-micron grain, apply to cutting composite material,finish machining of non ferrous metals and woodworkng tools. | |||||||
| K20 | 91.3 | 14.55-14.7 | 2500 | Fine grain,mainly used for woodworking blade and tobacoo machine cutter. | |||||||
| K20-K30 | 91.8 | 14.35-14.50 | 3000 | Sub-micron grain,apply to cutting corrugated board,chemical fiber,plastics,leather,battery pole pieces,all knids of milling cutters and hole-machining tools | |||||||
| K10-K20 | 92.5 | 13.95-14.10 | 3500 | Ultra-fine grain,apply to cutting corrugated board,paerboard,leather,composite materials,machining of gray cast iron and heat-resisting alloy. | |||||||
| K40 | 90.5 | 13.95-14.10 | 3200 | Sub-micron grain, superb abrasive resistance and toughness,apply to woodworking cutters,cutting corrugated board,battery pole pieces etc. | |||||||
PRODUCTS SHOW
Customized is available, Star spare parts company welcomes your enquiry.
