Product Description
Detailed Product Description:
Measurement-while-drilling (MWD) and logging-while-drilling (LWD) use sensors to collect parameters such as the working status of the drilling tool and borehole trajectory in real time, and transmit the information to the analysis system, thereby providing real-time operation guidance for the drilling engineer.
This product is mainly used for vertical well drilling tools, pulse drilling tools, hydraulic oscillators, logging while drilling and MWD drilling tools. It has the functions of diversion, erosion resistance and mud sealing, and can indicate mud pressure and pulse signals.
1. Excellent abrasion resistance
2. High wear resistance
3. High fractural strength
4. High thermal conductivity
5. Small heat expansion co-efficient

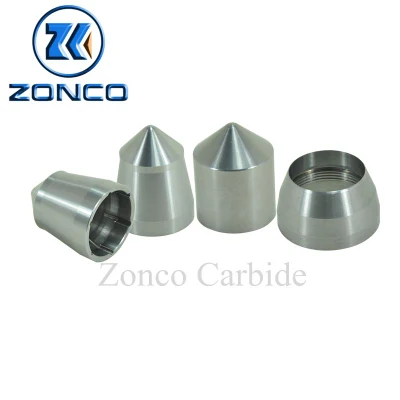

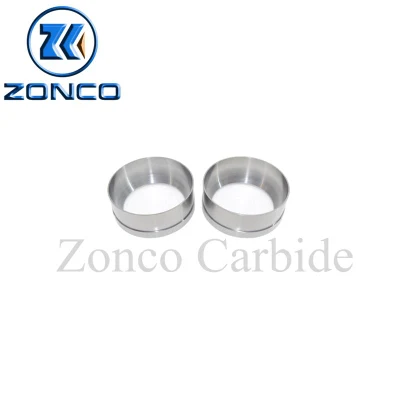

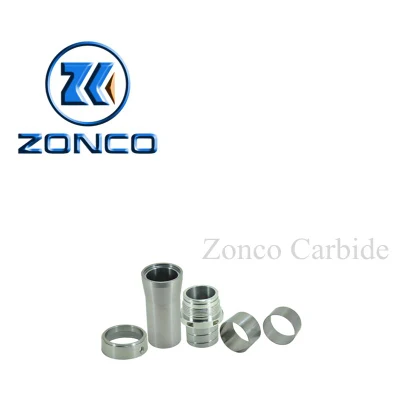

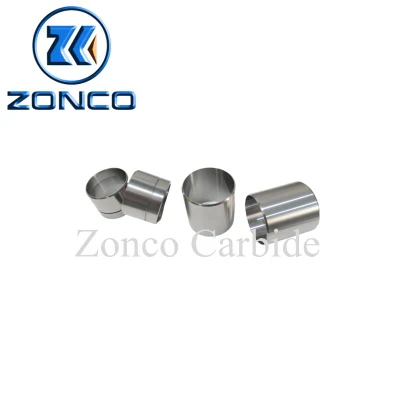

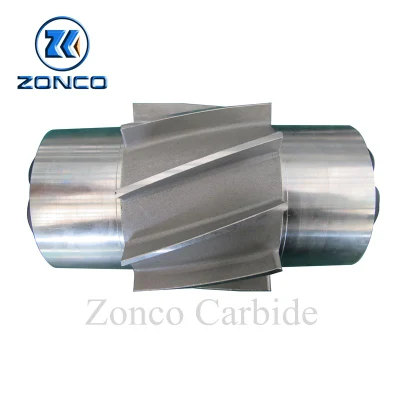

Customized Various kinds MWD components According To The Specific Drawing :
Company Introduction:
Zonco has been specialized in customizing various kinds of non-standard tungsten carbide wear resistant components for more than 10 years.Our products and technologies have been widely applied in the fields of oil & gas (such as downhole tools(dill bits, chrismas tree, RSS, PDM), wellhead equipment, subsurface valves, MWD/LWD Tools) and chemical engineering, subsea, valve, pump, mechanical equipment. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. we are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement. since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.
Our main products Types:
1. Carbide nozzles for Oil Drill Bits, nozzle sleeve, bushing.
2. Carbide parts for MWD/LWD tools, such as rotor,stator,liner,sleeve, plate,retainer,shroud etc.
3. Carbide Parts for downhole tools,such as torque impactor, centralizer, fracturing nozzle, stationary valve Assy and OSC valve Assy in Hydraulic oscillator etc.
4. Carbide Radial Bearing, such as TC bearing, PDC bearing.
5. Valve Trim, such as valve plug, stems, seats, cage, choke bean,choke stem.
6. Steel bonded tungsten carbide Assy and Surface Technology on Steels (PTA,HVOF, Boriding).
7. Other customized carbide parts based on client's drawings etc.
2. Competitive prices with 10-30% saved or more.
Zonco Common Tungsten Carbide Grades, Ghysical Mechanical Properties:
| Grade | WC% | Co% | Grain size (μm) | |||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 0.8-1.2 |
| YG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89 | 1.2-1.6 |
| YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
| YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 |
| YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 |
| YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85 | 1.2-1.6 |
2. Nickel Binder Grades
| Grade | WC% | Ni% | Physical and mechanical properties | Grain size (μm) | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YN6 | 94 | 6 | 14.5-14.9 | 2000 | 90 | 1.2-1.6 |
| YN9 | 91 | 9 | 14.3-14.6 | 2300 | 89 | 1.2-1.6 |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88 | 1.2-1.6 |
Our material engineers have developed more than 15 material grades. If the listed grades above are not meet your requirement,
we are able to recommend or develop new grade by customers' requirements.
Company profile:
Zonco has been specialized in the tungsten carbide industry for many years. It is particularly good at customizing and processing of special-shaped non-standard carbide parts according to customers' drawings and requirement. Zonco has not only a full set of processing equipment, but also unique processing technology as well. Zonco offers innovative solutions to meet the extreme complex and severe working conditions (high temperature, strong corrosion and wear) in energy, chemical industry and other industries.The company is dedicated to addressing production concerns to deliver productivity to customers seeking peak performance and providing products with high performance price ratio.
