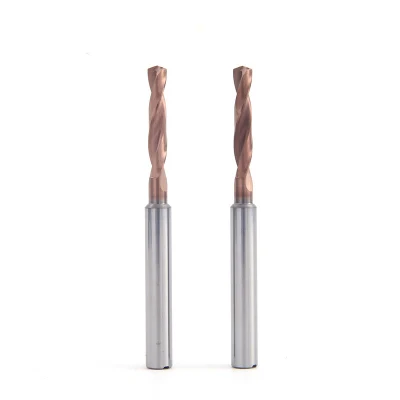

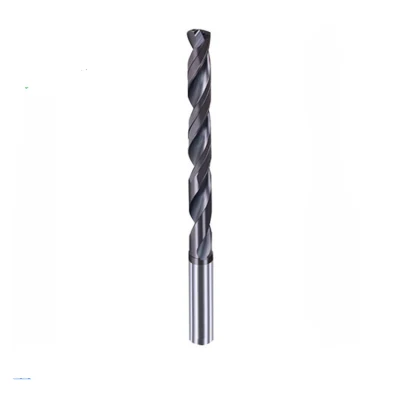

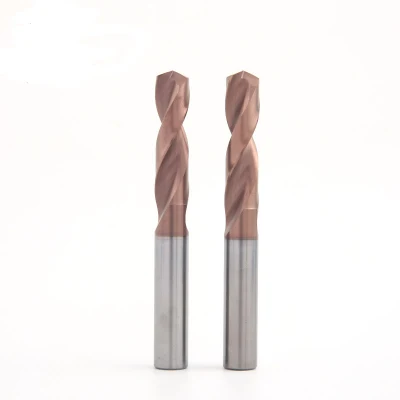

CNC Solid Carbide HRC55 with Coating

Shop our high-quality CNC Solid Carbide HRC55 with Coating for precision cutting. As a factory, we offer durable tools for optimal performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Material
Solid Carbide
Usage
Well Drilling, PCB Drilling, Metal Drilling
Free Service
OEM
Flutes Number
2
Flute Diameter
3.1~20mm
Flute Length
28~150mm
Shank Diameter
4~20mm
Total Lengthv
66~153 mm
Application
CNC Drilling Machine/Machining Center
OEM/ODM
According to Samples/Drawings
Transport Package
1PC in a Plastic Tube, 10PCS a Group
Specification
Customized
Trademark
LeeHoo
Origin
China
HS Code
820770000
Production Capacity
500000

Product Description

CNC Solid Carbide HRC55 with CoatingDESCRIPTION
1. Anti-broken Heat Resistance And Impact Resistance: Made by ultra micro-grain raw material imported from Germany, improve heat resistance and impact resistance
2. Chipping Removal Effect: Slot with big capacity, efficient chipping removal in high-speed cutting
3. Improve Quality Of Surface: Special design of cutting edge, decreasing of resistance


SPECIFICATION

ITEM SPECIFICATION DIAMETER TOTAL LENGTH FLUTE LENGTH Shank Length
D2103-LH-3D D3-D3.7 6 62 20 36
D2103-LH-3D D4-D4.7 6 66 24 36
D2103-LH-3D D4.8-D6 6 66 28 36
D2103-LH-3D D6.1-D7 8 79 34 36
D2103-LH-3D D7.1-D8 8 79 41 36
D2103-LH-3D D8.1-D10 10 89 47 40
D2103-LH-3D D10.3-D12 12 102 55 45
D2103-LH-3D D12.1-D14 14 107 60 45
D2103-LH-3D D14.1-D16 16 115 65 45
D2103-LH-3D D16.1-D18 18 123 73 50
D2103-LH-3D D18.1-D20 20 131 79 50
D2103-LH-5D D3-D3.7 6 66 28 36
D2103-LH-5D D4-D4.7 6 74 36 36
D2103-LH-5D D4.8-D6 6 82 44 36
D2103-LH-5D D6.1-D8 8 91 53 36
D2103-LH-5D D8.1-D10 10 103 61 40
D2103-LH-5D D10.3-D12 12 118 71 45
D2103-LH-5D D12.1-D14 14 124 77 48
D2103-LH-5D D14.1-D16 16 133 83 48
D2103-LH-5D D16.1-D18 18 143 93 48
D2103-LH-5D D18.1-D20 20 153 101 50

CNC Solid Carbide HRC55 with CoatingCNC Solid Carbide HRC55 with CoatingCNC Solid Carbide HRC55 with CoatingCNC Solid Carbide HRC55 with CoatingCNC Solid Carbide HRC55 with CoatingCNC Solid Carbide HRC55 with Coating

1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2) How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality.

3) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.



4) How long does the whole procedure being worked out?

After you place an order, the production handling time is about 20 days. We need 5 days to prepare all the stuff then 15 days for manufacturing.



5) What about the transportation and delivery date?

Normally we use shipment to transport the goods. It is about 25-40 days. It also depends on which country and port you are in. It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.



6) Are you a trading company or manufacturer?

We are a professional manufacturer.



7) Where is your factory located?

We are located in  Xixiashu Town, New North District, Changzhou City, Jiangsu, China.





8) How about your stock?

We have large quantity products in stock, regular types and sizes are all in stock.



9) Is free shipping possible?

We don't offer a free shipping service. We can have a discount if you buy a large number of products.
