Product Description
1. Heat resistant; very good wear resistant
2. HIP sintering, High hardness.
3. Good impact toughness, chemical stability.
4. Excellent performance and good wear/corrosion resistance
5. High machining accuracy/precision
Tungsten Carbide valves assemblies parts is widely used on a choke valve in oil gas industry or other energy industry.
Tungsten Carbide valves assemblies parts are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.
Zonco has been specialized in customizing various kinds of non-standard tungsten carbide wear resistant components for more than 10 years. we are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement. since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.
2. Competitive prices with 10-30% saved or more.
Zonco Common Tungsten Carbide Grades, Ghysical Mechanical Properties:
| Grade | WC% | Co% | Grain size (μm) | |||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 0.8-1.2 |
| YG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89 | 1.2-1.6 |
| YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
| YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 |
| YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 |
| YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85 | 1.2-1.6 |
2. Nickel Binder Grades
| Grade | WC% | Ni% | Physical and mechanical properties | Grain size (μm) | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YN6 | 94 | 6 | 14.5-14.9 | 2000 | 90 | 1.2-1.6 |
| YN9 | 91 | 9 | 14.3-14.6 | 2300 | 89 | 1.2-1.6 |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88 | 1.2-1.6 |
Our material engineers have developed more than 15 material grades. If the listed grades above are not meet your requirement,
we are able to recommend or develop new grade by customers' requirements.
Main Products Types:
1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles
3.Valve Stem/Plug and Seats
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Carbide Drilling Dies
8.Carbide Buttons/Inserts
9.Other Carbide Wear Parts

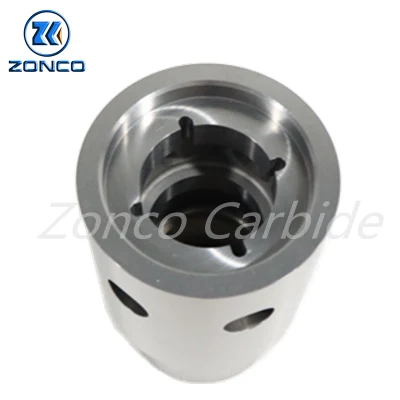

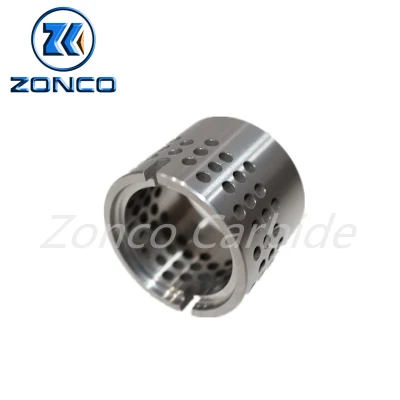

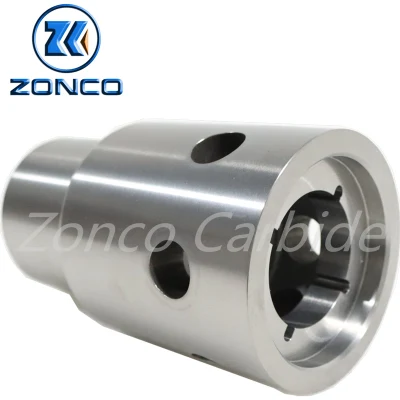

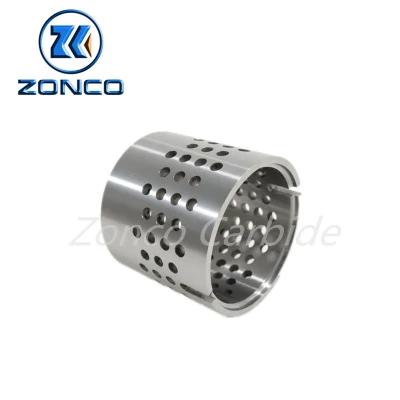

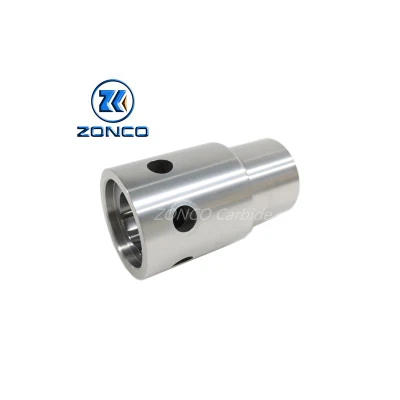

Typical Valve Trim Photos:
