Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Looking for high-quality wire drawing die blanks? Look no further! Our factory specializes in producing Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Related Products
  • Product Description
  • Our Advantages
  • Product Application
  • Customer Reviews
  • Why Choose Us
  • Company Profile
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
PCD Die Blanks
Cavity
Single-cavity
Surface Treatment
Polish
Application
Hardware
Customized
Customized
Product Name
PCD Die Blanks
Materials
PCD
Size
Standard, Customised
Feature
High Wear Resistance, Hardness and Thermal Conduct
Service
Service
Packing
Carton
MOQ
2 PCS
Shape
Cylinder
Transport Package
Standard Packaging
Specification
Customized
Trademark
RZ
Origin
China
Production Capacity
1000000pieces/Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
1.000kg

Product Description

Related Products

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Product Description

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

The diamond wire drawing dies blank is made by sintering diamond micropowder under the action of various metals (containing cobalt) catalysts using ultrahigh temperature and ultrahigh-pressure processes. During the sintering process, high-strength diamond bonds are formed between the diamond microcrystalline particles, and the diamond fine powder particles are strongly combined to form polycrystalline diamond (PCD). The diamond wire drawing dies blank manufactured by this method has high wear resistance, hardness and thermal conductivity, but also has good mechanical strength and toughness. It is suitable for drawing copper, aluminum, nickel and other non-ferrous metals, stainless steel and various alloy wire.

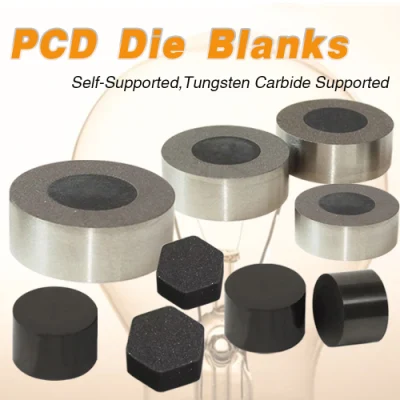

Self-supported PCD die blanks
Self-Supported diamond die blanks includes self-supported PCD die blanks in Hexagonal shape and Round shape in various sizes.These blanks are suitable for various wire drawing applications especially where cost-cutting is required.

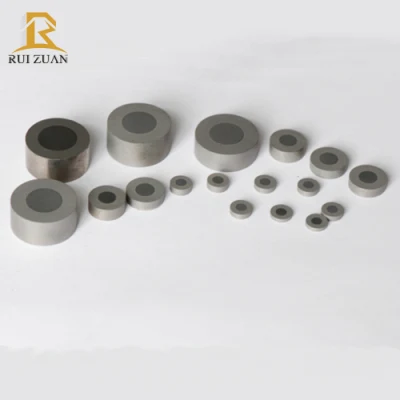

Tungsten Carbide Supported PCD Die Blanks
Tungsten carbide supported diamond die blanks is manufactured by means of cold pressing insertion. Polycrystalline diamond (PCD) core integrally bonded to a tungsten-carbide-supported ring which in turn enhances strength of die blanks. All blanks contain metal catalyst in PCD structure.
Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks
Self-supported Round Shape PCD Die Blnaks
ADDMA
CODE
Dimensions (mm)
Max. Hole
Diameter(mm)
D
d
T
D6
/
2.5
1
0.4
D6
/
3.2
1
0.5
D12
/
3.2
1.5
1
D12
/
4
2
1.3
D15
/
5.2
2.5
1.5
D18
/
5.2
3.5
2.0
D21
/
8.0
4.0
3.0
D24
/
9.8
5.3
4.0
D27
/
13.0
8.5
5.0
Tungsten Carbide Supported PCD Die Blnaks
ADDMA
CODE
Dimensions (mm)
Max. Hole
Diameter(mm)
D
d
T
RSP415
D12
8.12
4.0
1.5
RSP423
D15
8.12
4.0
2.3
RSP429
D18
8.12
4.0
2.9
RSP638
D21
13.65
6.8
3.8
RSP653
D24
13.65
6.8
5.3
RSP1285
D27
24.13
13.0
8.5
RSP130116
D30
24.13
13.0
11.5
RSP130116
D30
24.13
15.0
12.0
RSP1515
D33
24.13
15.0
15.0

Our Advantages

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

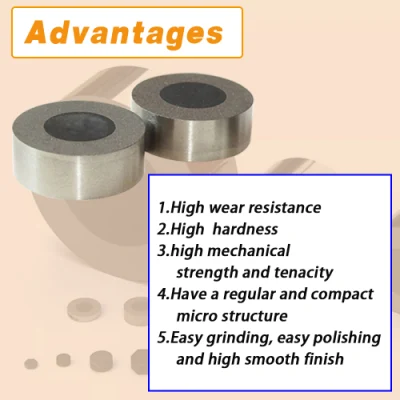

Self-Supported PCD Die Blanks
* Have a regular and compact micro structure
* Long service life * Easy grinding, easy polishing and high smooth finish

Tungsten carbide supported die blanks
1.All supported die blanks offer an electrically conductive
2.Extended service life
3.It has high abrasion resistance, hardness and thermal conductivity, and has good mechanical strength and toughness
4.Reinforced by a special outer ring;Polycrystalline diamond core and sintering cemented carbide support ring closely, tungsten carbide ring support, make it has better crack resistance, therefore this kind of product can withstand the high strength and high speed drawing

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Product Application

PCD die blanks is Mainly used for draw copper wire, aluminum wire, tungsten wire, molybdenum wire, stainless wire and coated steel wire and other nonferrous materials.They are also used in wire and thread guides as well as nozzles.
Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Customer Reviews

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die BlanksDrawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Why Choose Us

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die BlanksDrawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die BlanksInternational Leading Trade Fair
for Grinding Technology
Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Company Profile

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die BlanksZhengzhou Ruizuan Diamond Tools Co., Ltd. is committed to providing customers with grinding, cutting, turning, milling, drilling, reaming tools. Including abrasives and grinding wheels Diamond/CBN grinding wheels and knives PCD/PCBN blades and knives Carbide blades and knives and high speed steel knives and knives. Our tools are used in many different industries.
Our customers are in woodworking metal processing, automotive stone glass gemstone industrial ceramics,Oil and gas drilling and construction industries. Our products have performed well in these industries for a long time Long service life, high efficiency and low unit cost.
Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die Blanks

Packaging & Shipping

Drawing Mould Wire PCD Drawing Die Blanks Tungsten Carbide Supported Wire Drawing Die BlanksPACKAGE:
SINGLE BOX PER WHEEL,
10 to 20 WHEELS PER CARTON


DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
