Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten

Get high-quality tungsten, molybdenum, and carbide rods from our factory supplier. We specialize in heavy-duty materials for industrial use.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Our Advantages
  • Product Parameters
  • Detailed Photos
  • Production Process
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
99.95% Forged
Certification
ISO9001
Standard
DIN
Customized
Customized
Material
W90-97nife
Application
Metal Cutting Machine, Metal Processing Machinery Parts, Metal forging Machinery, Metal Casting Machinery
Grade
Yl10.2, Yg10X, Yg6X Customized
Hardness
>91.5 Hra
Diameter
2-100mm
Usage
for Making End Mills and Drills
Length
10-2500mm
Density
16.8-18.8g/cm3
Transport Package
Plastic Box
Specification
H6/h6 Cemented Carbide Rod
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
5 Tons Per Month

Packaging & Delivery

Package Size
40.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description

Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.

Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most popular.

Our Advantages

We provide high quality tungsten carbide rods with the following advantages:

1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4. Standard length is 100mm and 330mm,also can be supplied according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.

Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten


black/ground/polished Molybdenum Bar Rods
Product Information:
High Purity: 99.95%
Forged Mo rods density:>10.2g/cm3
Sintered Mo bars density:about 9.7g/cm3
Mo rods surface:black,alkali washed,ground,polished
Surface finished
Black - Surface is "as swaged or "as drawn"; Retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control

Available size:
Straightened rods after drawn: Dia0.3mmm-3.2mm
Usual size:dia1.0mm-100mm*L
 Length<2500mm
Mo rods size tolerance is as follows:
Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten

Product Parameters
EG GRADE ISO CODE GRAIN SIZE(μm) DENSITY(G/cm³) HARDNESS TRS(N/MM)
EG06 K05 0.5 14.8 94.3 3800
EG08 K10 0.6 14.75 92.2 3900
YL10.2 K20 0.6 14.5 91.8 4000
EG12 K30 0.5 14.1 92.5 4000
YG15X K40 0.6 14.0 89.5 4000


We supply tungsten high heavy alloy WNiFe WNiCu rods
Matiral Density Hardness Elongation
W90-97NiFe&W90-97NiCu 16.8-18.5g/cm3 91.5 Hra 1%
90%WNiFe, 90%WNiCu 17.0/cm3 32HRC max 5-20%
92.5%WNiFe, 92.5%WNiCu 17.2/cm3

33HRC max 5-15%
95%WNiFe, W95NiCu 18.0/cm3 34HRC max 3-10%
97.5%WNiFe, W97.5NiCu 18.85/cm3 35HRC max 1-8%


Dimension and Tolerance
Dimension(mm) Tolerance of diameter(mm) Tolerance of length(mm)
Min BL-Φ3.0×330 +0.20/+0.45 -0/+5.0

Max BL-Φ50.0×330
+0.20/+0.45 -0/+5.0

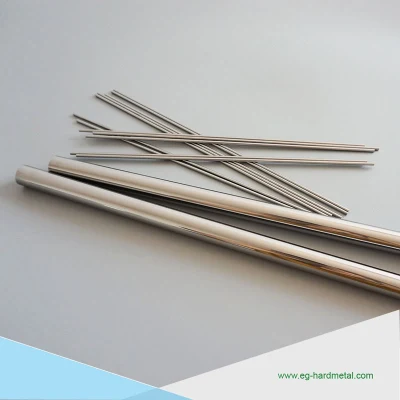

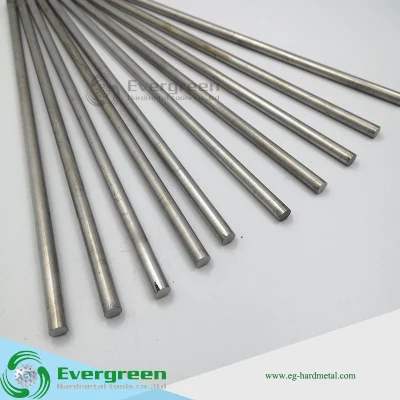

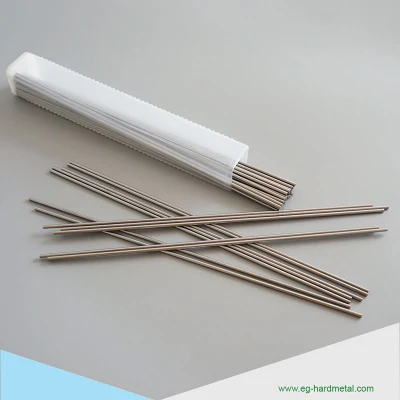

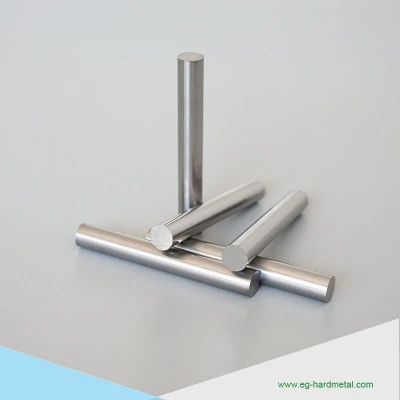

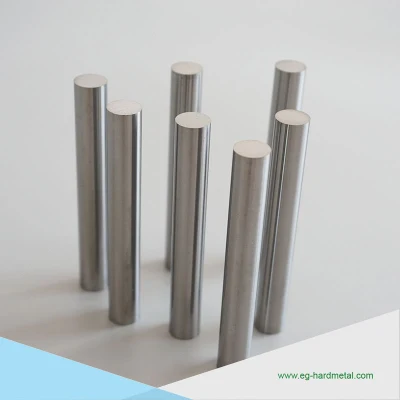

Detailed Photos
Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten
Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten
Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten
Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten
Production Process

Factory Supplier Carbide Rods Molybdenum Bar High Heavy TungstenFactory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten

Packaging & Shipping

Factory Supplier Carbide Rods Molybdenum Bar High Heavy Tungsten



Contact us for catalog and latest detail
