Basic Info.
Model NO.
type 22
Material
Tungsten Carbide
Shape Mould
Extrusion Mould
Grade
Yg6, Yg6X, Yg8, Yg15
Trial Order
Acceptable
Transport Package
Box Inside and Carton Outside
Specification
Various
Trademark
M&J
Origin
Zhu Zhou
HS Code
8466910000
Production Capacity
10000000PCS/Year
Product Description

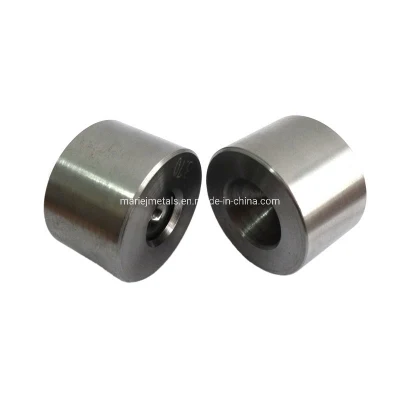

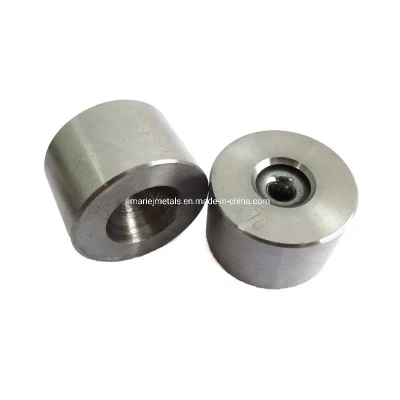

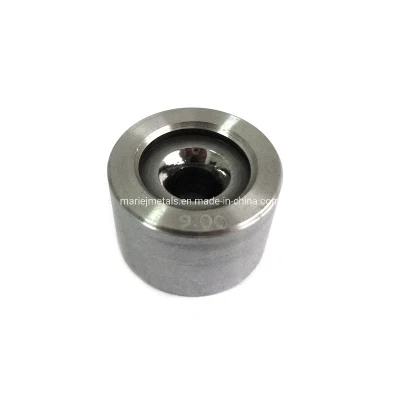

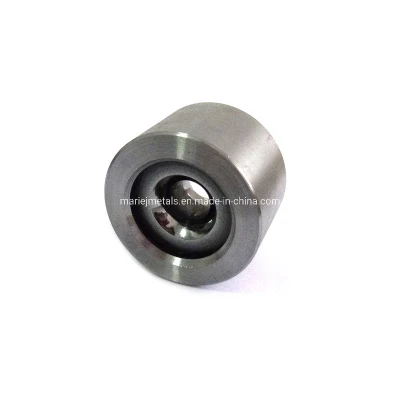

Good Price Tungsten Carbide Drawing Dies
If this kind of carbide drawing die is not what you want, please send your drawings or designs to us.
We, Marie Jay's Metal Products Co., Limited, are a professional supplier and manufacturer of tungsten carbide products, such Carbide inserts, carbide shims, carbide rods, carbide plate and bars, carbide drawing dies, Carbide end mills, carbide balls, carbide burrs, carbide mining tools, etc.
With several years development, our products have been exported to U. S. A, Germany, Italy, Russia, South America etc. With good quality and competitive prices, Our hard working attitude and responsiveness are approved by our customers. And we would like to establish new business relationships with new customers.
Contact us today and you will enjoy benefits of good quality and services from our products!
If you want to know more about our products, please click http://mariejmetals.en.made-in-china.com/
Packaging & Shipping
Our Packaging
O u r Shipping
We mainly choose the following delivery ways :
Supplying Services
Products we supply and make are:
1. Tungsten carbide products:
Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates, STB Carbide Blanks, Drawing Dies, Cold Forginng Dies, Carbide Disc Cutters, Carbide Inserts, Carbide Shims, Carbide Burrs and Carbide Burr Blanks, Carbide Mining Bits, Carbide Drilling Bits, Carbide Cutting Tools for Wood and Bamboos, Tile Cutter Wheels, Scriber Tips, Customized Carbide Products etc.
2. Titanium and titanium alloy products:
Titanium Rods, Titanium Tubes, Titanium Pipe Fittings, Titanium Plates, Titanium Sheets, Titanium Foils, Titanium Wires, Titanium Nuts and Bolts, Titanium Brazing and Casting, Cutomized Titanium Products etc.
Quality Control
* We will inspect and test all products after finishing production and before delivery.
* We can provide dimension & inspection certificate as customers' requirements.
* We also can provide customers' samples dimensional verification.
Company Information
Marie Jay's Metal Products Co., Limited is located in Zhuzhou, Hunan, China, which is a heavy industrial city and hometown of tungsten carbide.
Marie Jay's Metal Products Co., Limited's main focus is in the metal-processing industry. We specializes in design, development, and production of metal products in the fields of tungsten carbide products, titanium & titanium alloy products, nitinol products, molybdenum products, and other casted or machined products, such as ductile iron casted & machined products, gray iron casted & machined products, aluminum casted & machined products, and copper casted or forged & machined products etc. We especially pay attention on tungsten carbide products, titanium & titanium alloy products, and nitinol products.
We are a professional Chinese manufacturer and supplier. And also we work with some factories by joint stock method. Our prices are competitive, and we can supply good quality products and comprehensive services as well.
We export our products and develop new products according to customers' requirements to USA, Mexico, South America, Germany and western countries etc. by working with an export company.
Work with us, you will benefit financially and conveniently from our good quality and services, and competitive prices.
FAQ
C: Why should I choose your company for partner?
M: A s you know, the raw material of low price makes your product s more competitive in the market. That means it will make you sell much easier.
| Hole diameter(mm) | tolerance(μm) | Die sleeve | |
| A | B | ||
| φ0.020~0.070 | 0.5 | 25 | 5 |
| φ0.071~0.200 | 1 | 25 | 8 |
| φ0.201~0.400 | 1 | 25 | 8 |
| Φ0.401~0.600 | 1 | 25 | 10 |
| Φ0.601~1.000 | 2 | 25 | 10 |
| more than 1.000 | 3 | 30 | 15 |
| Wire materials | Flexile wire | Hard wire | |
| Inlet area | 70°+/-20° | 60°+/-20° | |
| Lubrication area | 35°+/-20° | 30°+/-5° | |
| Compression area | 16°+/-2° | 14°+/-2° | |
| Sizing area | 20-50 | 40-80 | |
| Safety angle | 15°+/-5° | 15°+/-5° | |
| Outlet area | 50°+/-20° | 50+/-20° | |
If this kind of carbide drawing die is not what you want, please send your drawings or designs to us.
We, Marie Jay's Metal Products Co., Limited, are a professional supplier and manufacturer of tungsten carbide products, such Carbide inserts, carbide shims, carbide rods, carbide plate and bars, carbide drawing dies, Carbide end mills, carbide balls, carbide burrs, carbide mining tools, etc.
With several years development, our products have been exported to U. S. A, Germany, Italy, Russia, South America etc. With good quality and competitive prices, Our hard working attitude and responsiveness are approved by our customers. And we would like to establish new business relationships with new customers.
Contact us today and you will enjoy benefits of good quality and services from our products!
If you want to know more about our products, please click http://mariejmetals.en.made-in-china.com/
Packaging & Shipping
Our Packaging
O u r Shipping
We mainly choose the following delivery ways :
Shipment: by Express/ by Air /by Sea
We can arrange shipment according to our customers' requests .
I f there is any problem related to the shipping, please feel free to contact us.
Ou r Services
We can arrange shipment according to our customers' requests .
I f there is any problem related to the shipping, please feel free to contact us.
Ou r Services
- We will try our best to reply our customers' requests within 24 hours.
- We will maintain effective and efficient communications with our customers.
- We provide first-class quality control and after-sale services.
Supplying Services
Products we supply and make are:
1. Tungsten carbide products:
Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates, STB Carbide Blanks, Drawing Dies, Cold Forginng Dies, Carbide Disc Cutters, Carbide Inserts, Carbide Shims, Carbide Burrs and Carbide Burr Blanks, Carbide Mining Bits, Carbide Drilling Bits, Carbide Cutting Tools for Wood and Bamboos, Tile Cutter Wheels, Scriber Tips, Customized Carbide Products etc.
2. Titanium and titanium alloy products:
Titanium Rods, Titanium Tubes, Titanium Pipe Fittings, Titanium Plates, Titanium Sheets, Titanium Foils, Titanium Wires, Titanium Nuts and Bolts, Titanium Brazing and Casting, Cutomized Titanium Products etc.
Quality Control
* We will inspect and test all products after finishing production and before delivery.
* We can provide dimension & inspection certificate as customers' requirements.
* We also can provide customers' samples dimensional verification.
Company Information
Marie Jay's Metal Products Co., Limited is located in Zhuzhou, Hunan, China, which is a heavy industrial city and hometown of tungsten carbide.
Marie Jay's Metal Products Co., Limited's main focus is in the metal-processing industry. We specializes in design, development, and production of metal products in the fields of tungsten carbide products, titanium & titanium alloy products, nitinol products, molybdenum products, and other casted or machined products, such as ductile iron casted & machined products, gray iron casted & machined products, aluminum casted & machined products, and copper casted or forged & machined products etc. We especially pay attention on tungsten carbide products, titanium & titanium alloy products, and nitinol products.
We are a professional Chinese manufacturer and supplier. And also we work with some factories by joint stock method. Our prices are competitive, and we can supply good quality products and comprehensive services as well.
We export our products and develop new products according to customers' requirements to USA, Mexico, South America, Germany and western countries etc. by working with an export company.
Work with us, you will benefit financially and conveniently from our good quality and services, and competitive prices.
FAQ
C: Why should I choose your company for partner?
M: A s you know, the raw material of low price makes your product s more competitive in the market. That means it will make you sell much easier.
