Gw-Professional Factory Made Tungsten Carbide Cold Heading Die for Punching Mould Tool Parts

Looking for high-quality tungsten carbide cold heading die? Gw-Professional Factory has you covered. Our factory-made tool parts are perfect for punching mould applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Processing Method
Punching and Shearing Mould
Technics
Forming Die
Process Combination
Progressive Die
Manufacturing Technology
Computer Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
EDM Milling
Milling Speed
High Speed
Parts Detection Method
Geometric Detection
After-sales Service
6 Months
Grades
Yg20c, Yg25c, Kg7, Va80, Va90, Wf40
Tolerance
Rough Grind on O.D, Grind Top and Bottom Surface
Delivery Time
3 ~ 15 Days
Customized
Standard or Customised
Surface
Grinding or Rough
Work Piece
for Metal
Shipment
by Express, Air,Sea,etc.
Transport Package
Standard Export Carton
Specification
33x23x19cm
Trademark
G&W or OEM
Origin
Zhuzhou, Hunan
HS Code
8207209000
Production Capacity
100 Tons Annually

Packaging & Delivery

Package Size
15.00cm * 8.00cm * 8.00cm
Package Gross Weight
0.200kg

Product Description

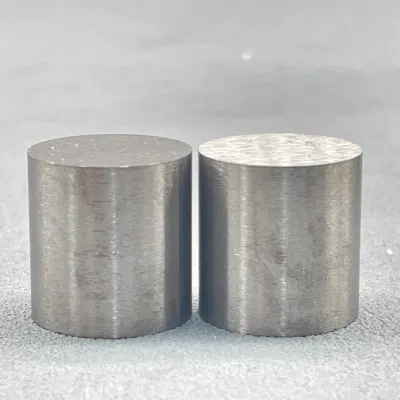

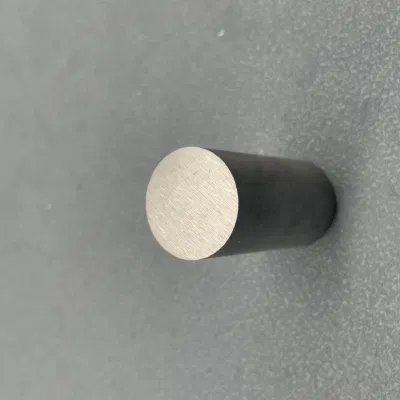

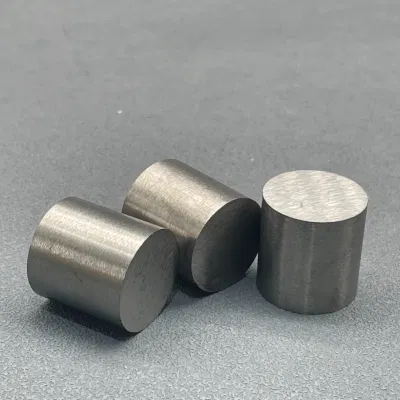

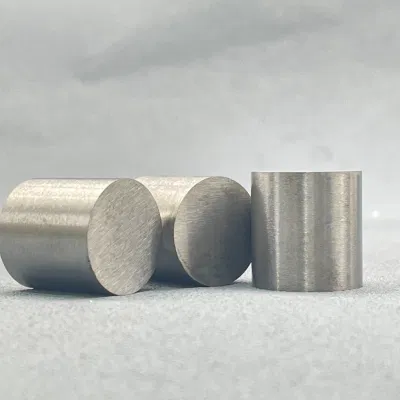

Carbide cold forging dies/Tungsten Carbide Heating Dies

Our advantage

1 100% raw material, HIP-Sintered
2 No porosity, no crack
3 Good wear resistance, long working life
4 High bending strength, good impact resistance
5 Finish grinding, concentricity of O.D and I.D
6 Good corrosion resistance
7 Big production capacity, delivery time within 3 ~ 15 days
8 Strong technical support, good after sale service

Grades
GRADE DENSITY
(g/cm3)
TRS
(N/mm2)
HARDNESS
(HRA)
Application recommended
YG11 14.4 2600 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14.0 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG16C 13.9 2900 85.5 Impact resistance forging dies.
G18C 13.7 3100 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 3300 83.5 Dies for wear
resistant or impact resistant application.
YG22C 13.3 3500 83.0 Nut forming dies and high impact resistance forging dies
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.
Other grades of tungsten carbide forging dies can be offered according to customers' requirement

Production process

Mixture(WC+CO+alcohol)→wet grinding→ drying→grinding again→suppression(Oil press,Automatic hydraulic press)→QC for blank→rubber extrusion→Wc+Co→sintering(HIP )→tungsten carbide blank→Fine grinding→QC→packing.
