- Overview
- Product Description
Basic Info.
Shape
Round
Series
Lmf
Material
Alloy
Type
Universal
Product Name

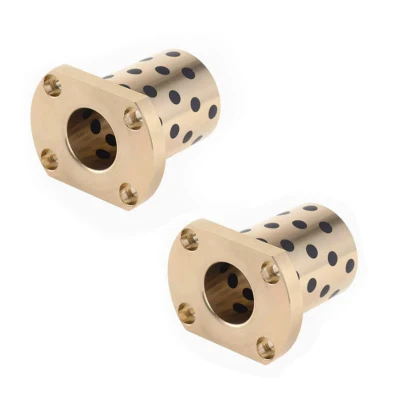

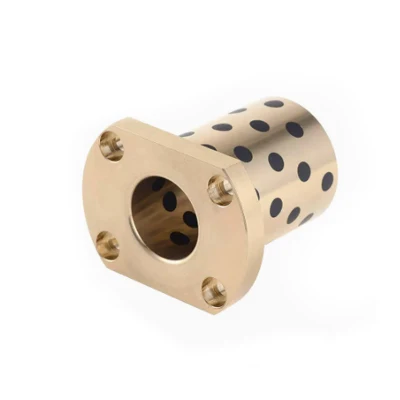

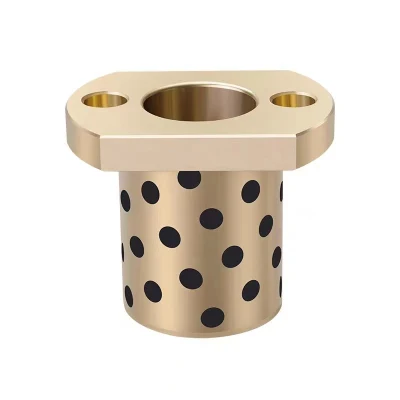

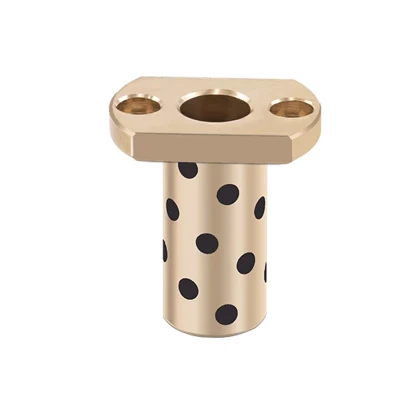

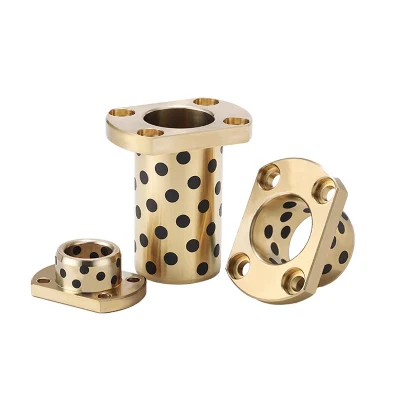

Self-Lubricating Graphite Bronze Bushing
Sleeve Type
Round Flange Sleeve
Structure
Bronze+Graphite Plugged
Material Composition
Zcuzn25al6fe3mn3/Zcusn5pb5zn5
Bush Types
Sleeve/ Flange /Washer/Sliding Plate
Lubrication
Oil Free Lubrication
Service
OEM .ODM .Customized
Transport Package
Carton
Specification
8/10/12/16/20/25/30/35/40/50/60
Trademark
WF
Origin
Jiangsu, China (Mainland)
HS Code
8486402900
Production Capacity
100 PCS/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Self-lubricating Graphite Bronze Bushing Details:
Bronze Graphite Plugged Bushings Oilless BushesMaterial:Bronze CuZn25Al6Fe3Mn3+graphite; Steel CuSn6Zn6Pb3 or HT-250 cast iron+graphite,
CuZn24Al6 ; ZCuAl9Fe4Ni4Mn2; CuSn12; CuCr150
Type: 1.JDB Graphite Bushing (MPBZ)
2. JFB Round Flange Graphite Bushing (MPTZ)
3. MPTSZ Square Flange Graphite Bushing
4.Sheared Flange Flange Graphite Bushing(MPTNZ)
Feature:
Graphite plugged tin bronze oilless bushing,Oil-free sliding bearings can be self-lubricated by design, work smoothly, reliably and without noise.Under the condition of liquid lubrication, the sliding surface is separated by lubricating oil without direct contact, and the friction loss and surface wear can be greatly reduced.
Offering Superior Performance In Hundreds Of Applications Replacing Carbon Bearings. Graphite bronze bushings is suited for Submerged and High Temperature Applications. Self Lubricating Bronze Bushings According to Client's Design, An excellent alternative to groove bronze, graphite-filled bronze provides dry lubrication in high temperatures.
WHAT CAN WE SUPPLY?
We have Bronze Bushing Graphite Bronze Bushings - Super Huge Type Bronze Bushing, Self-Lubricating Graphite Plugged Bronze Sleeve.Customized bronze bushing good quality and fast delivery.Processing Of all customization bronze parts, Plug Graphite Bearings.
Application:
used on consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,injection molders and auto molds,anti-abrasion and anti-erosion parts,light industrial machines,tools,moving belt in the drying machine,door of the fireplace,instance,on no oil parts on the building,metallurgy and transportation machines,machine tool,agricultural machinery,crane electric motor,spring pin,steering shaft and transmission etc.
used on consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,injection molders and auto molds,anti-abrasion and anti-erosion parts,light industrial machines,tools,moving belt in the drying machine,door of the fireplace,instance,on no oil parts on the building,metallurgy and transportation machines,machine tool,agricultural machinery,crane electric motor,spring pin,steering shaft and transmission etc.
MATERIAL AVAILABLE | ||
CuZn25Al6Fe3Mn3 + Graphite | ZCuAl9Fe4Ni4Mn2 + Graphite | |
ZCuSn5AlPb5Zn5 + Graphite | ZCuSn10Zn2 + Graphite | |
HT250# Cast Iron + Graphite | CuSn6Zn6Pb3 + graphite or MOS2 | |
CuSn12 + Graphite | CuZn25Al6Fe3Mn3 (High-stress Brass) |
Kindly pls contact service ,if you have any problem, thank you!!!!!!!!!!!!!!!!!!!!
