Hard Alloy Tungsten Carbide Wire Drawing Die

Get high-quality hard alloy tungsten carbide wire drawing dies from our factory. We specialize in precision manufacturing for superior performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Application
Hardware, Household Appliances, Commodity
Certification
ISO
Warranty
1 Year
Customized
Customized
Drawing Die Mould Material
Tungsten Carbide + Steel Case
Sintered Method
Hip Sintered
Runner
Hot Runner\ Cold Runner
Tolerance
as Per Your Requirement
OEM
Acceptable
Transport Package
Paper Carton
Trademark
Lihua
Origin
China
Production Capacity
5000 Piece Per Month

Product Description

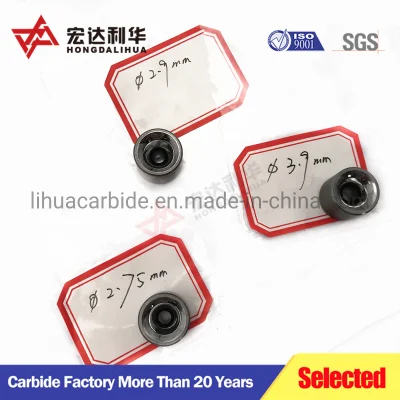

Hard Alloy Tungsten Carbide Wire Drawing Die
Hard Alloy Tungsten Carbide Wire Drawing Die

Applications

We Die's wire drawing system is used by wire producers to reduce a cross-section of wire by pulling the wire through a single die or a series of drawing dies. There are many applications for wire drawing, including electrical wiring, construction reinforcement, cables, medical and surgical applications, springs, staples, tire cord,and welding wire.
Hard Alloy Tungsten Carbide Wire Drawing Die

Welding Wire

Enough welding wire is produced every year to circle the globe several times. Hundreds of thousands of wire drawing dies are consumed during the production of welding wire.

Tire Cord

There are more than 1 billion tires produced every year and each tire contains bands of high tensile-strength steel wire encased in a rubber compound. Millions of wire dies are consumed each year in the production of tire cord wire.

Spring Wire

Millions of heavy duty and light vehicle engine valve, piston, fuel injection, transmission, and clutch springs are produced each year. Hundreds of thousands of wire drawing dies are consumed annually during the production of spring wire.

PC Strand

PC strand is primarily used in pre-stressed concrete buildings, bridges, parking decks, and other structures. High carbon steel rod is drawn through carbide wire dies before being used as concrete reinforcement.

Fasteners

All over the world millions of screws, bolts, nuts, rivets, nails, and staples are produced each year. Carbide wire drawing dies are essential to the production of these fasteners.

Wire Rope / Cable

Wire rope and cable are used in many industries - spanning aerospace and construction to medical and transportation. Wire drawing dies are used to form the control, constraint, and security cables used in these industries.

Specifications

No

Product

Items

Mold Core

Hardness

1

Wire-drawing Die

W103

φ13*10

1400-1600

1600-1800

2

Wire-drawing Die

W104

φ16*13

1400-1600

1600-1800

3

Wire-drawing Die

W105

φ20*17

1400-1600

1600-1800

4

Wire-drawing Die

W106

φ25*18

1400-1600

1600*1800

5

Wire-drawing Die

W107

φ30*22

1400-1600

1600-1800

6

Wire-drawing Die

W108

φ35*25

1400-1600

1600-1800





Items

Mold Core

Mantle

Coating Film

Specification

Tolerance

Compression Corner

Coining

W109

40*27

53(-0.1~-0.2)*34

AlCrN

13.30

0-0.01

14

25%

13.10

W108

35*25

12.80

12.70

12.40

12.10

11.70

11.40

11.10

10.70

10.60

10.10

W107

30*22

9.90

9.60

9.10

8.90

8.10

W106

25*18

7.10

6.10

W105

20*11

5.10

30%

4.90

4.10

W104

15*10

3.80

3.50

3.30

3.20

3.10

3.00

Pictures

PCD Wire Drawing Dies

Hard Alloy Tungsten Carbide Wire Drawing Die

Pressure Holders

Hard Alloy Tungsten Carbide Wire Drawing Die
Hard Alloy Tungsten Carbide Wire Drawing Die

Shape Dies

Hard Alloy Tungsten Carbide Wire Drawing Die

Other Products
Hard Alloy Tungsten Carbide Wire Drawing Die
Compay Informations


About Lihua Cemented Carbide

Established in 1996, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.

Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.

Main Products

Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool cutter, V-cutter, mining tool,  Any customized carbide products are acceptable.

Month capacity of 15 Tons

We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine etc, Our production capacity up to 15 Tons per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.

Strictly QC

We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.

Hard Alloy Tungsten Carbide Wire Drawing Die
Hard Alloy Tungsten Carbide Wire Drawing Die
