Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter

RuggedCut PDC Cutter: High-quality abrasive PDC cutter for hard rock drilling and coal mining machinery. Direct from our factory for top performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
1008, 1308, 1313, 1613, 1616, 1913, 1916
Specification
1308, 1313, 1613, 1616, 1913, 1916
Trademark
Reetec
Origin
Wuhan
HS Code
82071910
Production Capacity
250000PCS/Year

Product Description

 PDC Cutter 1308/1313 for Oil and Gas Drilling  PDC bits

   Wuhan Reetec Diamond Co., Ltd was established on December 28, 2002.

  The main products are PDC cutters and top dome PDC inserts are widely used in petroleum geological drilling and exploration, coal mining, road and bridge engineering excavation..

Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter



Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter

1. Quick Details

Place of Origin: Wuhan, China
Brand Name: REETEC
Model Number: 1308/1313/1613/1616/1916/1919
Type: PDC Cutter
Machine Type: Drilling Tool Parts
Certification: ISO9001-2008
Material: Tungsten Carbide, Diamond,
PDC Cutter Use: Oil/Gas/Well/Geological Drilling



Advantages:
1. More than 17 years PDC Manufacturing experience
2. Diamond layer 2.2±0.2mm.

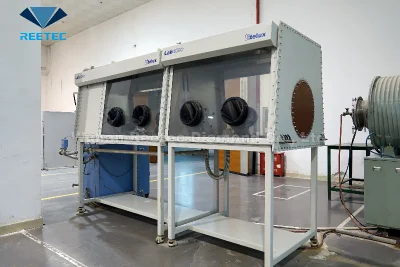

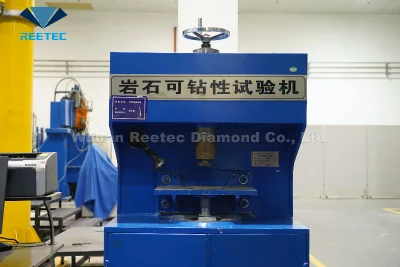

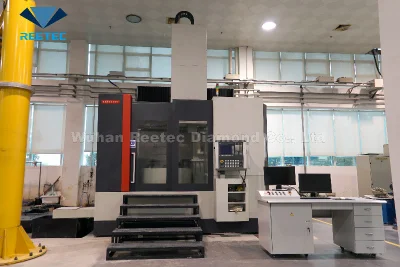

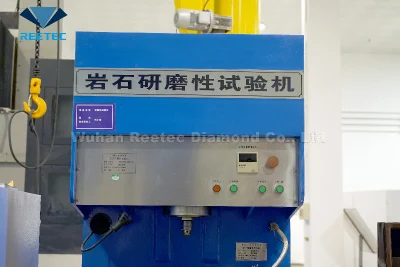

3. A lab including VTL machine, impact tester and thermal stability machine to test the PDC Cutter performance.
4. Efficient field data to support PDC cutter research.
5. Low cost workers.
6. We \only produce PDC products.


Conditions:
Abrasive Condition, Hard Condition

Packaging Details
Plastic Box

Delivery Time
In two weeks after payment

2. PDC Cutter Specification


Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter
Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter


Product Type  mm Diameter Height Diamond Layer Thickness Application
1308 13.44±0.03mm 8±0.1mm  2.0±0.2mm TRA / Soft condition/Gage PDC
1313 13.44±0.03mm 13±0.1mm  2.0 ±0.2mm
1613 15.88/16.00±0.03mm 13±0.1mm  2.0 ±0.2mm
1616 15.88/16.00±0.03mm 16±0.1mm  2.0 ±0.2mm
1916 19.05±0.03mm 16±0.1mm  2.0±0.2mm
1308 13.44±0.03mm 8±0.1mm  2.3±0.2mm TC /impact/Medium- hard condition/ Nose and shoulder PDC
1313 13.44±0.03mm 13±0.1mm  2.3 ±0.2mm
1613 15.88/16.00±0.03mm 13±0.1mm  2.3 ±0.2mm
1616 15.88/16.00±0.03mm 16±0.1mm  2.3 ±0.2mm
1916 19.05±0.03mm 16±0.1mm  2.3±0.2mm
1308 13.44±0.03mm 8±0.1mm  2.3±0.2mm TD/Abrasive/Medium- hard condition/ Nose and shoulder PDC
1313 13.44±0.03mm 13±0.1mm  2.3 ±0.2mm
1613 15.88/16.00±0.03mm 13±0.1mm  2.3 ±0.2mm
1616 15.88/16.00±0.03mm 16±0.1mm  2.3 ±0.2mm
1916 19.05±0.03mm 16±0.1mm  2.3±0.2mm
1308 13.44±0.03mm 8±0.1mm  2.3±0.2mm TH/ Super High Pressure PDC
1313 13.44±0.03mm 13±0.1mm  2.3 ±0.2mm
1613 15.88/16.00±0.03mm 13±0.1mm  2.3 ±0.2mm
1616 15.88/16.00±0.03mm 16±0.1mm  2.3 ±0.2mm
1916 19.05±0.03mm 16±0.1mm  2.3±0.2mm
Shaped PDC       Special Use

3. Company Introduction

      Wuhan Reetec Diamond Co., Ltd. (Wuhan Reetec for short) is a specialized company engaged in diamond composite materials research and development, design and manufacture, the main products PDC cutters and top dome PDC inserts are widely used in petroleum geological drilling and exploration, coal mining, road and bridge engineering excavation, as well as other areas of  abrasion resistant tools.

      With strong supports from the R&D system of Kingdream Public Limited Company(Kin gdream for short), Wuhan Reetec Diamond Co., Ltd was established and registered in Wuhan East Lake New Tech Development Zone on December 28, 2002. In 2006, Reetec passed ISO9001-2000 QMS Certification. In 2008, The Company was recognized as a National Hi-Tech. Enterprise, and passed ISO 9001-2008 QMS Renewal Certification in 2010.
Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter
Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter
Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter



Hard Rock Drilling Tools / PDC Drill Bit/ Coal Mining Machinery Parts Use Good Abrasive PDC Cutter

FAQ

Type of Company Manufacturer
Founded in 2002
Sample Order Accept
OEM Available
Quality Control Each product will be inspected in strict procedure before delivery
After-sales Service If quality problem, goods can be return or replaceable.
Payment Terms 50% in advance by T/T, delivery against balance
Delivery Time 7-14 days after receipt
Packing Plastic box
Factory Location Wuhan, Hubei Province
