Basic Info.
Product Description

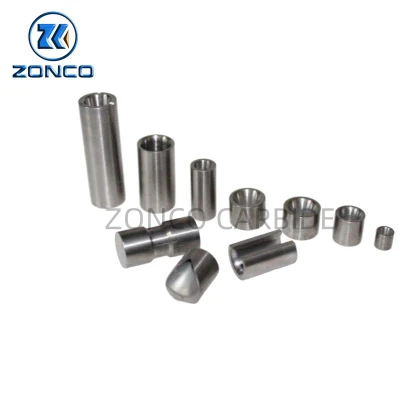

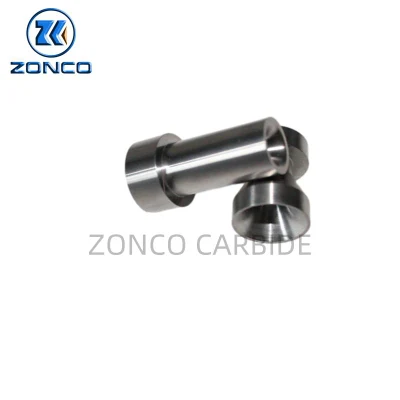

High Hardness and Excellent Wear Resistant Tungsten Carbide Die Parts
Basic info:
| Standard: | ISO9001:2015 | Transport Package | Carton or Wooden Case. Also Can Be Customized as per client's requirements |
| Application: | Oil&Gas,Mining,Machine, Drilling equipment | Product′s Size | As Per Drawing |
| Material: | Tungsten Carbide | Trademark | ZONCO |
| Service | OEM available | Origin | Zhuzhou,China |
| Features | Anti-Erosion/Corrosion/Abrasion | Production Capacity | 800-1000PCS Per Month |
Company Profile:
Zonco has been specialized in customizable cemented carbide parts industry since 2014,and able to manufacture varied tungsten carbide parts and alloy wear resisting parts based on customer's drawings and material specification requirements.We are Producing and Machining Various Non-standard or Customized Tungsten Carbide Product which widely applied in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.
Welcome to contact us for more details if you have demand for cemented carbide parts applied in oil exploration and drilling,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery and so on.
Description:
Carbide drilling dies has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500°C. It still has a high hardness at 800-1000°C. Carbide drilling dies are used to manufacture wear-resistant parts, and are widely used in military industry, aerospace, mechanical processing, metallurgy, oil drilling, mining tools, and other fields.
Customized carbide Drilling Dies:
 |  |
 |  |
 |  |
1)Choose different types of raw materials according to different working conditions
2)Customize products as per customer's drawings to meet the special needs
3) Various kinds of material grades are available based on customer's application
4) We have a strict quality process based on ISO9001-2015 and professional inspection tools such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.
5) Advanced technology with precision ground and high polishing process
6) High wear resistance, high hardness and impact toughness
7) Excellent after-sales service
Main Products lines :
1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)

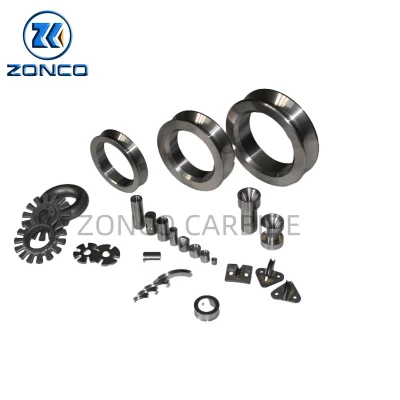

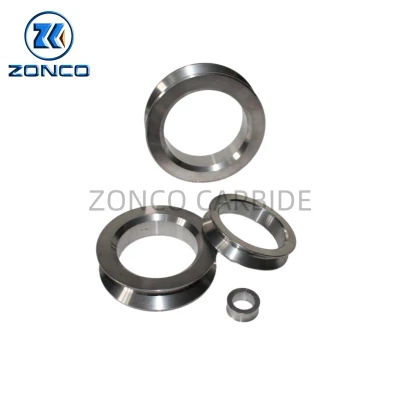

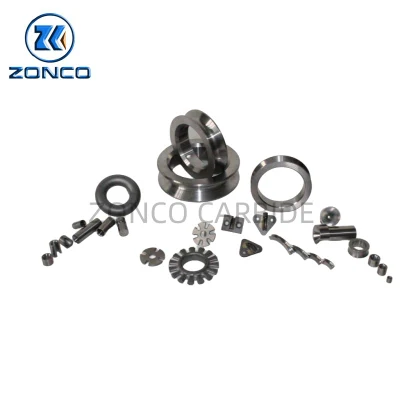

Customizable Products Display:
Tungsten Carbide Grades,Properties and Application:
Grade | WC% | Co/Ni% | Physical and mechanical properties | Grain size μm | Recommended application | ||
Density g/cm3 | TRS N/mm2 | Hardness HRA | |||||
| YG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance |
| YG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts |
| YG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity |
| YG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | |
| YG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for usual wear - resistant parts, molds, general tools, etc |
| YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.8 | 0.7 | Sub-fine tungsten carbide particles, good general performance |
| YG10X | 90 | 10 | 14.3-14.6 | 4000 | 92.2 | 0.6 | Ultra fine tungsten carbide particles, excellent heat resistance |
YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
YG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| YN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| YN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
Why choose us:
1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.
2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.
What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.
Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.
International Quality Certification ISO9001 of Cemented Tungsten Carbide:
Production Plant/Factory:
Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China.
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.
The department of raw virgin preparation and compression:
The department of HIP sintering:
The factory's interior:
Technological process of cemented carbide:
FAQ:
1.Q:What's your common incoterms used?
A:EXW, FOB, CIF, FCA.
2.Q:What is your payment terms ?
A:T/T 100% in advance Or 60% deposit, 40% before shipment. Negotiable based on customers' credibility and order amount.
3.Q:What is the lead time for carbide parts ?
A:Usually it is 35-45 calendar days based on order qty.
4.Q:How do you ensure products quality?
A:We have a strict quality process based on ISO9001-2015 and professional inspection tools such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.
5.Q:Which countries do you trade with?
A:Our products are exported to USA, UK, Russia, India, Singapore, UAE, Iraq, Pakistan, Norway, Hungary, etc.
Corporation Main Gate:
Conference/Meeting room:
If you want to learn more about our company,welcome to contact us.Thanks!
