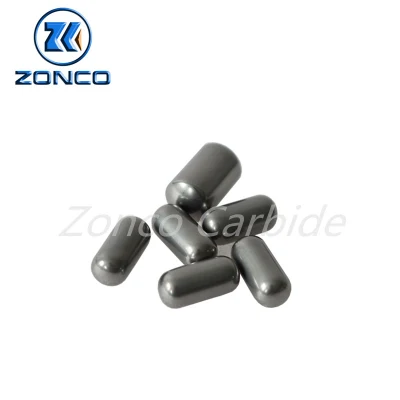

High Hardness Tungsten Carbide Buttons for Drill Bits

Get high hardness tungsten carbide buttons for drill bits from our factory. Durable and reliable options for all your drilling needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco -10654
Service
OEM/OEM
Transport Package
Carton or Wooden Case.
Specification
Custom according to drawing
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
1000PCS Per Month

Product Description

High Hardness Tungsten Carbide Buttons for Drill Bits

Introudction:
      Zonco has been specialized in the cemented tungsten carbide industry more than 10 years,and able to manufacture all kinds of tungsten carbide parts and alloy wear resisting parts based on customers' drawings and material specification requirement(prodcuts inclduing AP* series,GE seriesMWD seriesQDT seriesSL series,etc.) welcome to contact us for more details.


Brief Introduction:
Carbide, or tungsten carbide, is one of the hardest alloys that has a wide range of applications, such as mining, construction, oil and gas, machine tools, cutting tools, wear parts, etc. Compared to steel, tungsten carbide is much harder and has a longer service life. When you need a metal that is harder than steel and more resistant to wear and impact, tungsten carbide can definitely meet your requirements. Although diamond is even harder than carbide, it is not an affordable alternative.

Buttons or inserts made from tungsten carbide play a crucial role in the mining and construction industries. For those drilling rigs, carbide buttons can reduce downtime and improve productivity.Carbide buttons with varied sizes and grades are available and we also offer customization services.



Main Products lines
1.Radial Thrust Bearing & PDC,TC Bearing

2.Tungsten Carbide Nozzles and Teeth
3.Valve Stem/plug and seats
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Carbide Drilling Dies
8.Carbide Buttons
9.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)
Products pictures are as Follow:


 1. Radial Thrust Bearing & PDC,TC Bearing
High Hardness Tungsten Carbide Buttons for Drill Bits

 2. Tungsten Carbide Nozzles and Teeth
High Hardness Tungsten Carbide Buttons for Drill Bits
 3. Valve Stem/plug and Seats
High Hardness Tungsten Carbide Buttons for Drill Bits

 4. MWD & LWD Carbide Parts
High Hardness Tungsten Carbide Buttons for Drill Bits

 5. Carbide Parts for Downhole Tools
High Hardness Tungsten Carbide Buttons for Drill Bits
 6.Carbide Wear Parts for Mechanical Equipments
High Hardness Tungsten Carbide Buttons for Drill Bits
 7. Carbide Drilling Dies
High Hardness Tungsten Carbide Buttons for Drill Bits

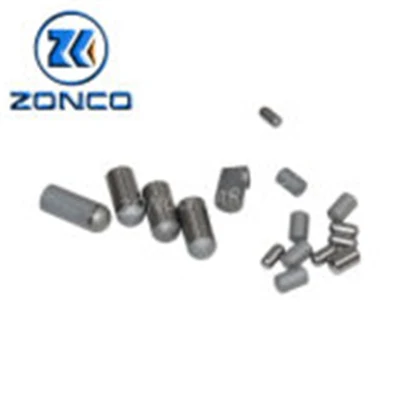

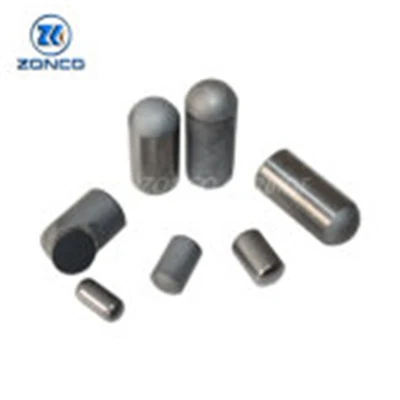

 8. Carbide Buttons
High Hardness Tungsten Carbide Buttons for Drill Bits

 9. Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and  wear-resistance)

High Hardness Tungsten Carbide Buttons for Drill Bits


Company Advantages:

1.Experienced with high producing technology and facilities
2. Varying sizes and customized needs available
3. Quality and quantity assured
4. Factory direct price
5. Lower cost and more flexible production management



Tungsten Carbide Grades,Properties and Application


Grade

WC%

Co/Ni%
Physical and mechanical properties
Grain size
 μm



    Recommended application

Density
g/cm3

TRS
N/mm2

Hardness
HRA
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2
Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
ZG06X 94 6 14.8-15.1 2400 91.5 1.0
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
ZG10.2 90 10 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
ZG10X 90 10 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance

ZG11

89

11

14.3-14.7

2800

88.5

1.2-1.6
Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6

ZG15X

85

15

13.8-14.2

4500

89.0

0.7
Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2
Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2


Bussiness and Patent License of Cemented Tungsten Carbide
High Hardness Tungsten Carbide Buttons for Drill BitsHigh Hardness Tungsten Carbide Buttons for Drill Bits

Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you looking forward to high quality supplier of cemented tungsten carbide wear resistant parts customized
