High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

High Performance Drilling Cutting Rock Tools for Coal Mining Picks. Our factory provides top-quality tools for efficient coal mining operations.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
U84, U95, U135, U170
Type
Crawler
Tip Material
Diamond Button
Equipments
Underground Miner, Longwall Miner, Continuous Mine
Applications
Hard Rock, Abrasive Rock
Body Protection
Hard Face
Transport Package
Box
Specification
400*300*250mm
Trademark
REETEC
Origin
China
HS Code
8207191000
Production Capacity
200000 Pieces/Year

Product Description

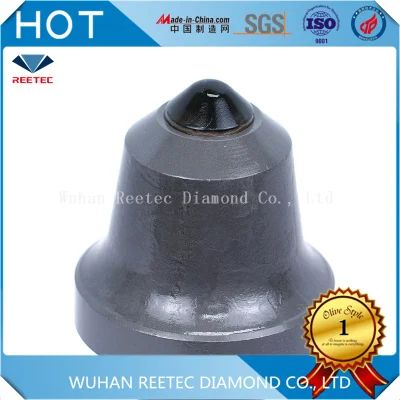

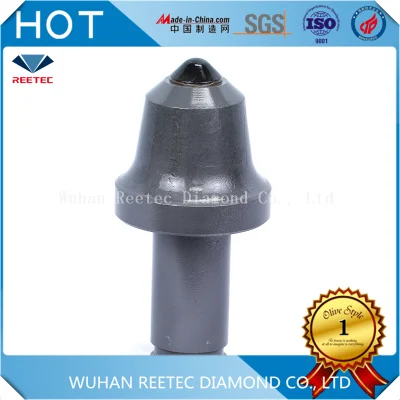

25mm/30mm/35mm/38mm Underground Diamond Enhanced Mining Picks


High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

       Picks are an important part of coal mining, roadway excavation, and rock crushing during construction. Picks are also one of the main consumables. Traditional carbide picks cannot meet the market demand in some aspects. With the advancement of materials technology, new diamond picks have emerged.

Product Introduction


High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal


  Product Sizes:

Product number Pick length
(mm)
Length of head
(mm)
Pick hanldle diameter
(mm)
PDC insert diameter
(mm)
Pick head /Collar diameter
(mm)
RT25U3412D 118 60-64 25 12mm,16mm 34
RT30U5119D 158 76-87 30 17mm, 19mm 50
RT32U5522S 150 70-75 32 16mm,20mm,22mm 55
RT35U5519D 179 81-86 35 16mm,18mm,19mm 50
RT25S6119S 142 64 25 12mm,19mm,20mm 61
RT30S5522S 150 75 30 22mm, 25mm 55
RT32S5522S 150 75 32 20mm, 22mm 55
RT34S7022S 140 73 34 22mm, 25mm 70
RT3038S4819S 141 66 30, 38 12mm,19mm,20mm,22mm 48
Diameter φ shank φ 25 mm, 30mm, 32mm, 34mm,35mm,38mm
Mounted on Underground miner, Longwall miner, continuous miner
Application Underground excavation in complex and high- impact condition.
Packing  standard export packing, plastic bucket or box, Plywood case
All products can be customized according to customer demand for production.


High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal
High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal
High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

Advantages:

       According to the field application results we have obtained, compared with traditional carbide pick, diamond pick has the following advantages:
  1. The service life of diamond pick increases more than 5 times.
  2. Tool consumption decreases more than 30%.
  3. The production efficiency of the operation is increased by more than 20%;
  4. Reduce the frequency of tool replacement and reduce the labor intensity of workers.

Clients' Applications

     Diamond enhanced mining picks

High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

Packing and shipping
High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

Company Information

    Wuhan Reetec Diamond Co., Ltd. (Wuhan Reetec for short) is a specialized company engaged in diamond composite materials research and development, design and manufacture, the main products PDC cutters and top dome PDC inserts are widely used in petroleum geological drilling and exploration, coal mining, road and bridge engineering excavation, as well as other areas of  abrasion resistant tools.

     With strong supports from the R&D system of Kingdream Public Limited Company(Kin gdream for short), Wuhan Reetec Diamond Co., Ltd was established and registered in Wuhan East Lake New Tech Development Zone on December 28, 2002. In 2006, Reetec passed ISO9001-2000 QMS Certification. In 2008, The Company was recognized as a National Hi-Tech. Enterprise, and passed ISO 9001-2008 QMS Renewal Certification in 2010.

High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

High Performance Drilling Cutting Rock Tools /Coal Mining Picks for Coal

Diamond Picks Characters:

1.The wear resistance of PDC: 30-40 times than tungsten carbide tip. , especially suitable hard and abrasive rock formation
2.The service life :8-10 times more than carbide picks, greatly reducing downtime and maintenance
3. Hardfacing: used a new material (Cerame),the hardness HRC 63-70 ,to limit Tip undermining and to protect holder tools.
4. Pick body :higher grade steel ,heat treated up to 55-57 HRC hardness
5. The impact strength : greater than 400 Joule


FAQ

Type of Company Manufacturer
Founded in 2002
Sample Order Accept
OEM Available
Quality Control Each product will be inspected in strict procedure before delivery
After-sales Service If quality problem, goods can be return or replaceable.
Payment Terms 50% in advance by T/T, delivery against balance
Delivery Time 20-45 days after receipt
Packing Plastic box
Factory Location Wuhan, Hubei Province
