Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing

Get superior grinding performance with Hpgr Tungsten Carbide Grinding Studs for mining ore crushing. We are a top factory producing reliable mining equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Workshop Show
  • Packaging & Shipping
  • Certifications
Overview

Basic Info.

Model NO.
SZ2035

Product Description

Good Tensile strength 11%Co Tungsten Carbide Stud for HPGR
Product Description

Tungsten carbide stud pins are an very important wear parts applied in high pressure grinding roller machine which are widly used in the cement  , Iron core,mining crushing industry. The carbide pins of High pressure grinding roller machine also are specifically used for  Briquetting applications.


Hard metal studs pins due to its high wear resistance , which make HPGR having more longer lifte time . In the mean time , our cemented carbide stud pins have over 4000 megapascals., So high toughness makes the studs pins not easily creak.

Our carbide studs in the China mainland have built very steady, longer markets  . Now we are cooperating with some bigger cement factories, such as  TAPAI CEMENT FACTORY which are our important partner.  There are also other equipment manufacturers of the grinding rolling machine which are using our stud pins.

Moreover we have exported tungsten carbide pins to European , Asia and Noth America.

We accept customized stud pins, just feel free  to send the drawing to us.

Product Parameters



arbide
 grade
Mechanical Property Applications
Denstiy     g/cm³ Coercivity  KA/M Hardness  HRA T.R.S  ≥N/mm² %CoM
ZD01 14.16-14.8 6.8-9.9 86.2-89.3 3010 10.10-11.80 Metal Ore
ZD02 14.12-14.56 5.8-9.0 85.3-88.3 3090 10.31-12.64 Steel Slag
ZD03 13.98-14.46 6.0-9.5 86.5-88.5 3100 10.50-14.10 Cement raw meal
ZD05 13.60-13.98 6.8-8.1 85.6-88.2 3180 12.8-15.60 Common Cement Clinker
ZD08 13.15-13.66 7.6-9.8 85.2-89 3200 16.00-17.50 Abrasive Corrosive
Cement Clinker
ZD06 13.20-14.06 4.2-6.6 83.0-87.6 2920 14.80-18.99 Edge block
ZD0 14.16-14.83 8.7-10.1 87.5-89.9 2795 8.40-11.25 Briquetting application

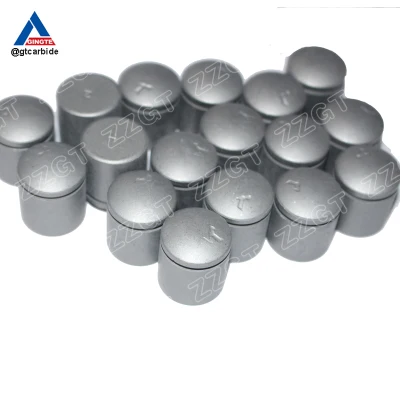

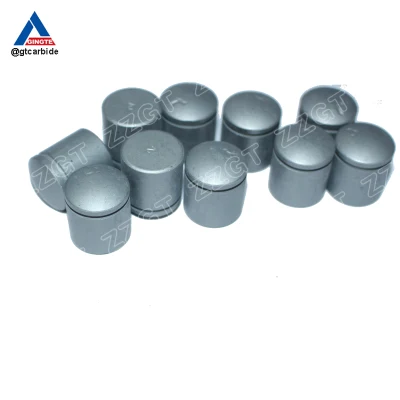

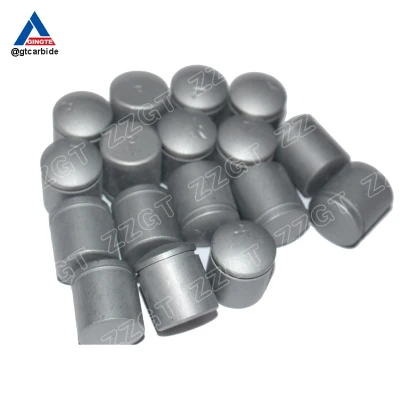

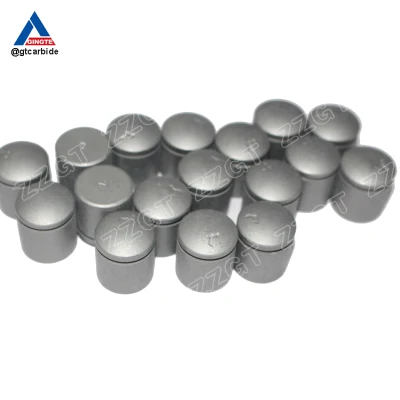

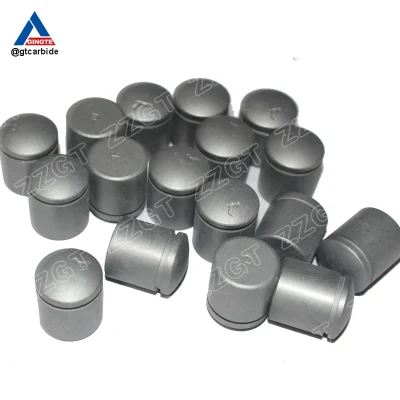

Detailed Photos
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing



Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing

Workshop Show

We have complete manfacturing line and advanced complete equipments. From pressing , blank  to fine manufacturing , we can do it.


In mixing powder processsure, we have spray drawing tower, over 20 sets mixed balling machine. Variouse Tons pressing machines are avaible in our company. It means that we can produce many kinds of shape blank.

Our comoany has a variety of advanced rough blank and finishing production equipment including but not limited to vacuum sintering furnace, internal and extrernal cylindrical grinders, surface grinders, Electronical Spark machine, EDM,CNC cutting machines,molding machines ,etc

Our products are also widely used in oil&gas drilling ,exploitation and chemical industry, coal chemical industry, pump valve, advanced material and other industries. The main products include wear resistance parts of measurement while drilling, wear resistant parts of hydraulic oscillators, wear resistant parts of wellhead equipments, threaded nozzles, fracturing nozzles, PDC/TC bearings, disc valves, and angle valves,etc.

Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing




Packaging & Shipping

Items Tungsten carbide wear parts to be packed suitably for Express, sea freight, train freight and road freight.
Items Cemented Carbide wear parts to be placed into plastic box or paper box or buckets. Each bucket/box not exceed 25KG. These are to be labelled using customer provided label, put ont to a pallet and the pallets to be completely enclosed with wood.

If you have special package demands, pls tell our sales engineer.


Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing




Certifications

Now we are certificated by ISO AND SGS. Here show our certificates

Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
Hpgr Tungsten Carbide Grinding Studs for Mining Ore Crushing
