Large Diameter Tungsten Carbide Punching Dies for Cans Production

Get high-quality large diameter tungsten carbide punching dies for cans production from our factory. Durable and precise for reliable can manufacturing.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Quick Information
  • Our Advantages
  • Detailed Photos
  • Main Dimensions
  • Quality Grade
  • Quality Control
  • About Oston Carbide
Overview

Basic Info.

Metal Color
Black Metal
Customized
Customized
Condition
New
After-sales Service
Available
Transport Package
by Air, by Sea, by Courier
Specification
As dimension list
Trademark
OSTON or customized logo
Origin
Zhuzhou, China
Production Capacity
20 Metric Tons Per Month

Product Description

Quick Information

Tungsten carbide pellets ( Tungsten carbide cold heading die ) used for cold heading and cold punching standard parts,bearing, screws and nuts. With high impact resistance,  toughness and wear resistance.this tungsen carbide core is produced as customer drawings,we not only provide customized carbide parts,but also industrial solution for carbide wear parts.

1. Made from 100% virgin raw material
2. Stable chemical properties
3. High hardness and impact strength
4. Excellent performance and good wear resistance,good corrosion resistance
5. HIP sintering, good compactness
6. Blanks, high machining accuracy
7. Sharp edge and smooth surface
8. OEM customized sizes available
9. Strict products quality inspection
The sizes are various and please kindly send us the drawing.The sizes can be customized upon request.


Our Advantages

1.100% high purity original material,Stable property produced by advanced facilities,all products need be inspected piece by piece before shipment.
2.We provide industrial solution as your request to solve your problems with experiend sales and technician,so please send us more information as possible for your application.
3.Fast delivery and shipment,we signed contract for DHL and UPS with attractive discounted price,which could save your cost again.
4.If you need any help or spare parts later after the coorperation,we will try to help.

Detailed Photos

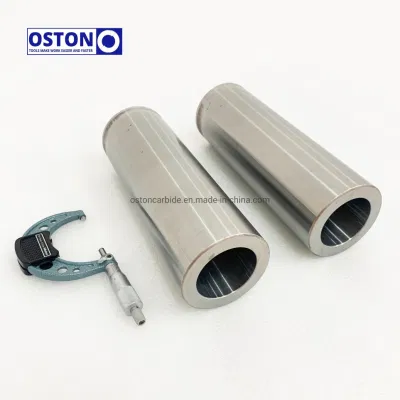

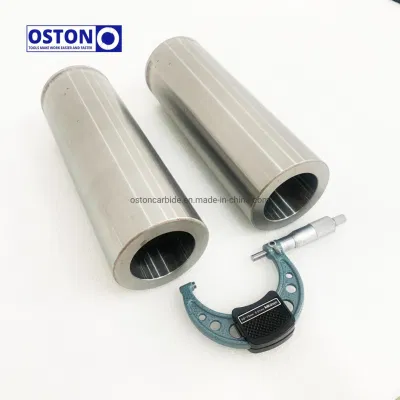

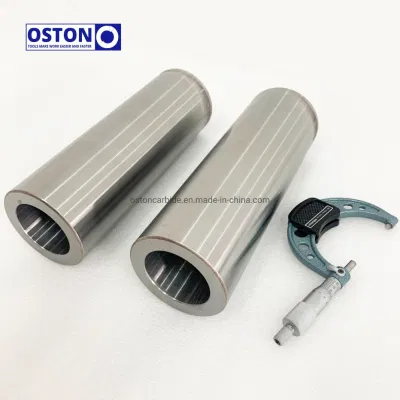

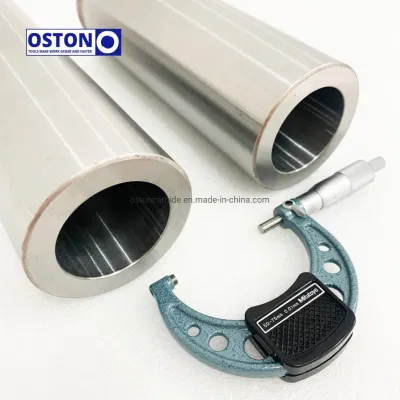

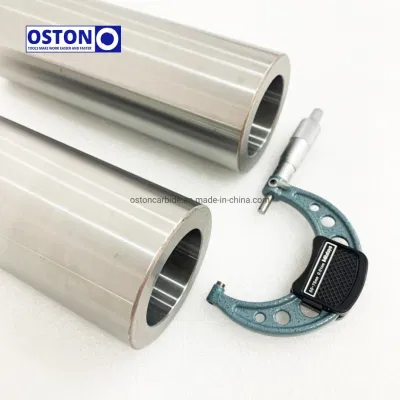

Large Diameter Tungsten Carbide Punching Dies for Cans Production
Large Diameter Tungsten Carbide Punching Dies for Cans Production

Large Diameter Tungsten Carbide Punching Dies for Cans Production
Large Diameter Tungsten Carbide Punching Dies for Cans Production


Main Dimensions

Please contact us to confirm the specific dimension list.

Sr.No OD(mm) ID(mm) H(mm)
1 5.0-9.0 0.5-3.0 2-150
2 10.0-20.0 0.5-9.0 2-300
3 21.0-50.0 0.5-20.0 2-300
4 51.0-150.0 0.5-40.0 2-300

Quality Grade


Grade

Grain size

(um)

Binder

density

(g/cm³)

Hardness
(HRA)

T.R.S

(N/mm2)

YG15 medium 15% 14.00-14.20 ≥86.5 ≥2900
YG20 fine 20% 13.50-13.80 ≥85.0 ≥2540
YG16X fine 16% 13.80-14.05 ≥89.5 ≥3200
YG20C coarse 20% 13.50-13.70 ≥83.0 ≥2500
YG16C coarse 16% 13.90-14.10 ≥84.5 ≥2340
YG18C coarse 18% 13.70-13.90 ≥83.5 ≥2400
YG24C coarse 24% 13.20-13.40 ≥82.0 ≥2600
YG25C coarse 25% 13.00-13.20 ≥81.0 ≥2760



Quality Control

1. Material Milling and Desiccation
Dust-Free Workshop: All staff must wear specified uniforms before entering the workshop.

2. Isostatic Suppressing for carbide rods
Machinery Automation:Automatic manipulators are installed for all of our TPA suppressing facilites,which is more accurate on weight controlling and reduces production cost.

3. HIP Sintering
Strict rules of operation: All operation need be conducted strictly as process rules.

4. Quality checking of trial production.
New testing piece: Testing piece must be produced before a new batch of material is used for mass production to ensure the stable
quality.


5. Grinding and Machining
We own all facilitess for the whole carbide machining system to ensure the delivery in time,including surface grinding lathe,external grinding lathe,centerless grinding lathe,wire cutting machine,EDM sparkling machine.


6. quality checking of finished products.
Double Quality Checking: Inspection for semi-finished and finished products are both essential,products with defects will never be shipped.

7. Packing and delivery
Safe package and delivery: Kraft paper for the first layer,bubble plastic for the second layer,gaps are filled with sponge,We focus on every package detail to ensure that clients receive our goods with good looks and good quality.

Large Diameter Tungsten Carbide Punching Dies for Cans Production

About Oston Carbide

Q:Is OSTON CARBIDE producer ?
A:OSTON CARBIDE is a exporting subsidiary for our parent company,which is a manufacturer of tungsten carbide and diamond wheels since 1998,you will get both manufacturing prices and good services here.

Q:What kind of products and service could OSTON supply ?
A:OSTON has been specializing in carbide solutions for clints more than 20 countries,which includes design and manufacturing of various carbide parts.

Q: Is there any certification for products of OSTON ?
A: Yes,All products from OSTON have been endorsed with the ISO9001:2015 certification.

Q:Can a drawing be supplied to OSTON for further design ?
A: Yes,we encourage sending as more information as possible,drawing and sketch are welcome for specific quotation,even a sample could be sent to OSTON for further design.

Q:When can I get the offer after sending inquiry ?
A:Our sales operates between 9:00 am to 6:00 pm Monday to Friday,Offer is usually supplied within 24 hours after we got your inquiry,if you are urgent to get the price,please call us or send email so that we'll take it as priority.

Q:How long time I need spend on waiting for my goods ?
A:Usual delivery time is 15-18 days after 30% down payment is received,please confirm with us before placing the order if you need urgent turnaround delivery.
