Product Description

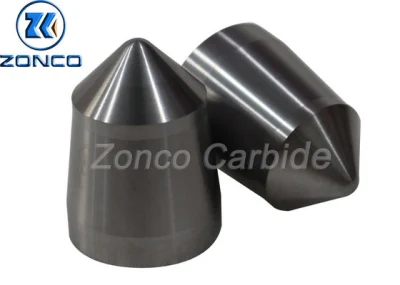

Manufacturer Customized High Hardness Cemented Tungsten Carbide Button for Mining Increase life time
Brief introduction about tungsten carbide buttons
Tungsten carbide is used many drilling and mining fields. With high resistance to wear is demanded in drilling, milling, trenching and cutting. ZZbetter offers an extensive product line, including many dimensions and shapes and which is constantly being used on drilling and mining tools. ZZbetter also manufactures tungsten carbide/cemented carbide/ hard alloy buttons in special shapes for certain applications.duct description.
Detailed Product Description:
Tungsten carbide represents a versatile seal ring material that is broadly applied in all acidic environments. It is generally the material of choice in applications where distortion due to high pressures or rapid wear in abrasive environments are modes of premature failure. Tungsten carbide seals possess a unique combination of high fracture strength and high hardness that minimizes or eliminates these problems. Other favorable properties of tungsten carbide seals include high thermal conductivity values and low coefficients of thermal expansion. These kinds of wear parts lifetime more than other material. There are enjoy high reputation at home and aboard. These characteristics promote the efficient removal of heat and provide dimensional stability at higher operating temperatures.
Product Feature of tungsten carbide Rotors And Stators:
1.High wear&impact resistance
2.Advanced equipment.
3.A long life time
4.High performance
5. Excellent abrasion resistance
6. High wear resistance
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
