Basic Info.
Model NO.
Od110*ID80*50mm
PCD
100mm
ET
15mm
Hole
4
Grade
Yg8
Hardness
89.5hra
Density
14.8g/cm3
T.R.S
1850MPa
Usage
as Milling Roller
Outdiameter
110mm
Inner Diameter
80mm
Thickness
50mm
Surface
Grinding and Polished
Transport Package
25kg. Carton
Specification
Yg8 Od110*ID80*50mm
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Packaging & Delivery
Package Size
5.00cm * 5.00cm * 5.00cm
Package Gross Weight
1.500kg
Product Description

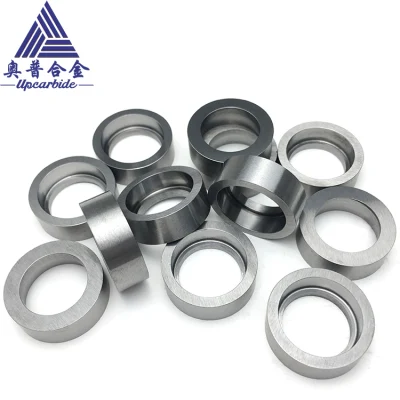

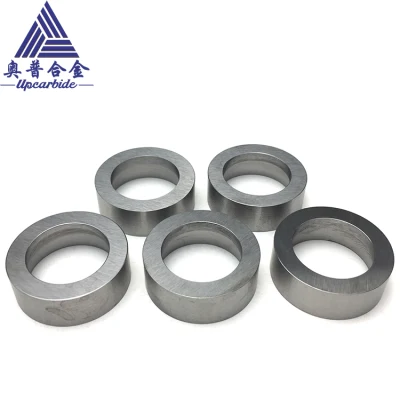

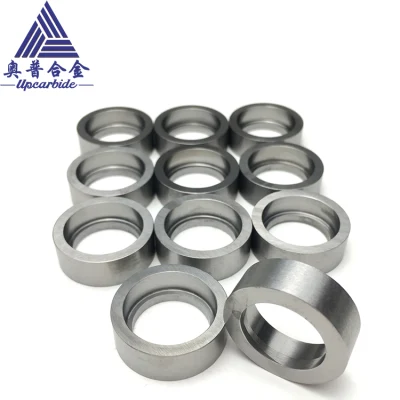

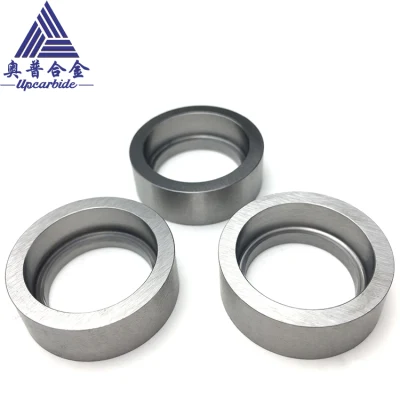

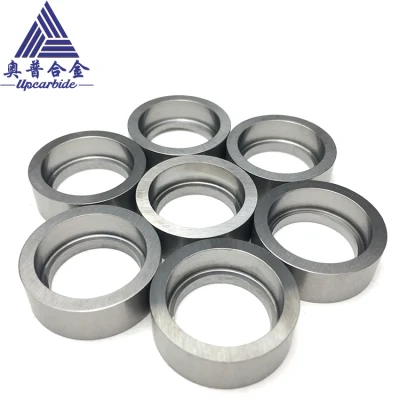

Hot insert process high hardness, wear resistance and heat resistant carbide roller sleeve wear parts Specifications
1. Grade: YG6X , 6% Co
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.
Products Show
Grades choosing
Common grades for all kinds metal
Grades for cold mill roll or hot mill roll steel
Common grades for all kinds metal
| Grade | Density g/cm3 | Hardnes HRA | T.R.S Mpa | Performance&application recommended |
| YG6A | 14.85 | 92.5 | 2000 | Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc. |
| YG8 | 14.7 | 89.8 | 2800 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YG11 | 14.4 | 88.5 | 2900 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YG15 | 14.0 | 87.0 | 3000 | Suitable for manufacturing punching dies, wear-resistant parts. |
| YG20 | 13.5 | 85.5 | 2800 | High bending strength,suitable for manufacturing progressive dies and other punching dies. |
| YG25 | 13.1 | 81.5 | 2950 | High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YS2T | 14.25 | 92.0 | 2500 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc. |
Grades for cold mill roll or hot mill roll steel
| Grade | Wc (%) | Co (%) | Ni (%) | Cr (%) | Density g/cm3 | Hardness ≥HRA | T.R.S ≥Nmm2 | Compression Strength ≥Nmm2 | Thermal Expansivity 10-6/K | Thermal Conductivity W/cm.k | Young's Elastic Modulus KN/mm2 |
| YGR60 | 70 | 30 | 12.8 | 78 | 2200 | 2900 | 7 | ||||
| YGR55 | 76 | 24 | 13.1 | 80 | 2400 | 3000 | 6.8 | 0.17 | 420 | ||
| YGR45 | 80 | 20 | 13.5 | 81 | 2500 | 3100 | 6.4 | 0.14 | 480 | ||
| YGR40 | 82 | 18 | 13.7 | 82.5 | 2600 | 3200 | 6.2 | 0.2 | 530 | ||
| YGR30 | 85 | 15 | 14.2 | 84.8 | 2700 | 3300 | 6.1 | 0.2 | 530 | ||
| YGR25 | 88 | 12 | 14.3 | 85 | 2600 | 3400 | 6 | 0.2 | 550 | ||
| YGH55 | 74 | 26 | 12.9 | 80 | 2200 | 3000 | 7 | 0.17 | 450 | ||
| YGH45 | 75 | 25 | 13.4 | 82 | 2400 | 3100 | 6.5 | 0.18 | 480 | ||
| YGH40 | 82 | 18 | 13.6 | 83.5 | 2500 | 3200 | 6.4 | 0.19 | 500 | ||
| YGH30 | 85 | 15 | 13.9 | 83.5 | 2400 | 3300 | 6.1 | 0.2 | 540 | ||
| YGH25 | 88 | 12 | 14.1 | 85 | 2300 | 3400 | 6 | 0.2 | 560 |
Common sizes:
| Outdiameter (mm) | Inner diameter (mm) | Height (mm) | Outdiameter (mm) | Inner diameter (mm) | Height (mm) | |
| 90 | 51 | 4~100 | 125 | 45 | 4~100 | |
| 90 | 20 | 125 | 80 | |||
| 90 | 3 | 130 | 40 | |||
| 95 | 75 | 130 | 50 | |||
| 95 | 68.5 | 140 | 90 | |||
| 95 | 74 | 142 | 78 | |||
| 100 | 65 | 150 | 90 | |||
| 100 | 62.1 | 210 | 200 | |||
| 100 | 20 | 161 | 108 | |||
| 105 | 46 | 212 | 120 | |||
| 105 | 65.5 | 158.8 | 87.32 | |||
| 105 | 81 | 170.66 | 95 | |||
| 105 | 75 | 180 | 87.32 | |||
| 110 | 20 | 180 | 120.65 | |||
| 110 | 30 | 228.3 | 126 | |||
| 110 | 90 | 208 | 126 | |||
| 114 | 94 | 228 | 130 | |||
| 115 | 65 | 285 | 160 | |||
| 115 | 60 | 320 | 260 | |||
| 120 | 46 | 280 | 240 | |||
| 120 | 65 | 318 | 280 | |||
| 120 | 60 | 600 | 550 | |||
| 125 | 45 | 800 | 200 |
Other sizes can be offered as per customers' requirements
