Polished Tungsten Carbide Rods and Cemented Blanks

Precise Tungsten Carbide Solutions - Polished Rods and Cemented Blanks. Factory-direct quality for industrial applications. Order now for reliable performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Our Advantages
  • Product Description
  • Product display
  • Product details
  • Corporate presence
  • Qualification certification
  • FAQ
Overview

Basic Info.

Model NO.
multi-model
Material
Alloy
Application
Metal Cutting Machine
Color
Silver
Size
Can Be Customized
Weight
Can Be Customized
Shipment Way
by Sea
Transport Package
Carton Packaging
Specification
Customized
Trademark
KANCIRON
Origin
Chongqing, China
HS Code
8207709000
Production Capacity
100000 Pieces

Product Description

Our Advantages
  1. We has a set of standardized process control measures and control point,and can provide users with high-quality production that meets the requirements in an all-round way.
  2. Can be customized with various models you need.
  3. With qualification certificates and a number of patents, we have a large production capacity.
Polished Tungsten Carbide Rods and Cemented Blanks
Product Description
1.Product Name:Tungsten Steel Round Bar
2.function: Making the tools needed for CNC machine tools
3.Advantages: Sharp and durable,Smooth chip removal
Material: Tungsten Carbide,Solid Carbide,Cemented Carbide
Product Type: Tungsten Steel Round Bar
Coating: nano-coating
Size: Standard size or as your request
Suitable For: Various PCB cutting tools

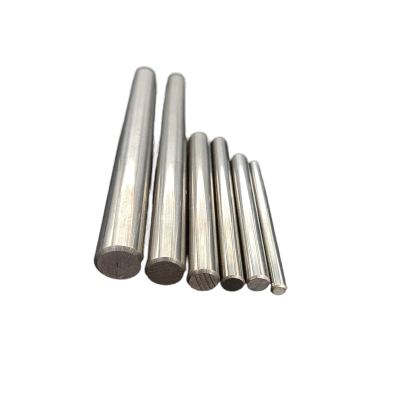

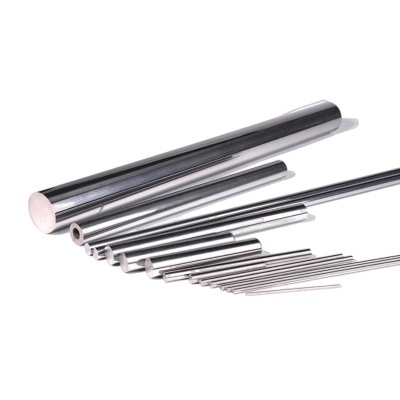

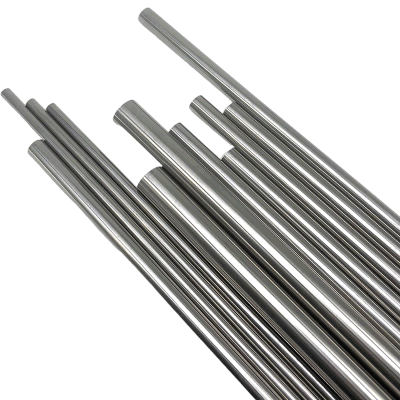

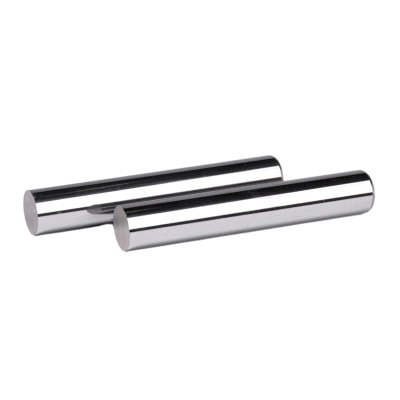

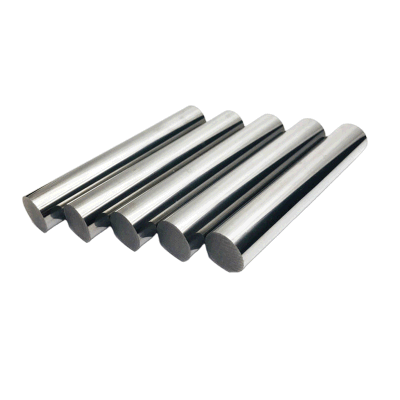

Product display



Polished Tungsten Carbide Rods and Cemented Blanks Polished Tungsten Carbide Rods and Cemented Blanks Polished Tungsten Carbide Rods and Cemented Blanks
Product details

Ground rods with chamfer
Metric rods
serial number
S/N

Specification
Diameter  D(mm) Length L(mm) chamfer dimension
Diameter Tolerance Length Tolerance chamfering
angle
Tolerance Chamfering
length
Tolerance
1 4×50 4 h5/h6 50 0.2-1.5 45° ±3° 0.4 ±0.1
2 6×50 6 h5/h6 50 0.2-1.5 45° ±3° 0.5 ±0.1
3 8×60 8 h5/h6 60 0.2-1.5 45° ±3° 0.6 ±0.1
4 8×100 8 h5/h6 100 0.2-1.5 45° ±3° 0.6 ±0.1
5 10×75 10 h5/h6 75 0.2-1.5 45° ±3° 0.6 ±0.1
6 10×100 10 h5/h6 100 0.2-1.5 45° ±3° 0.6 ±0.1
7 12×75 12 h5/h6 75 0.2-1.5 45° ±3° 0.8 ±0.1
8 12×100 12 h5/h6 100 0.2-1.5 45° ±3° 0.8 ±0.1
9 14×100 14 h5/h6 100 0.2-1.5 45° ±3° 0.8 ±0.1
10 16×100 16 h5/h6 100 0.2-1.5 45° ±3° 0.8 ±0.1
11 18×100 18 h5/h6 100 0.2-1.5 45° ±3° 0.8 ±0.1
12 20×100 20 h5/h6 100 0.2-1.5 45° ±3° 1.0 ±0.1
Ground rods with chamfer
Imperial rods
serial number
S/N

Specification
Diameter  D(mm) Length L(mm) chamfer dimension
Diameter Tolerance Length Tolerance chamfering
angle
Tolerance Chamfering
length
Tolerance
1 1/8×1  1/2 3.175 0.20-0.30 38.1 0.2-1.5 45° ±3° 0.4 ±0.1
2 3/16×2 4.7625 0.20-0.30 50.8 0.2-1.5 45° ±3° 0.5 ±0.1
3 1/4×2 6.35 0.20-0.30 50.8 0.2-1.5 45° ±3° 0.6 ±0.1
4 1/4×2  1/2 6.35 0.20-0.30 63.5 0.2-1.5 45° ±3° 0.6 ±0.1
5 3/8×2  1/2 9.525 0.20-0.30 63.5 0.2-1.5 45° ±3° 0.6 ±0.1
6 1/2×3 12.7 0.20-0.30 76.3 0.2-1.5 45° ±3° 0.6 ±0.1
7 3/4×4 19.05 0.30-0.40 101.6 0.2-1.5 45° ±3° 0.8 ±0.1
8 1×4 25.4 0.30-0.40 101.6 0.2-1.5 45° ±3° 0.8 ±0.1
Ground Long Rods
Imperial rods
serial number
S/N


Diameter  D(mm) Length L(mm)

Diameter

Tolerance

Length

Tolerance
1 3 h5/h6 310/330 0,+4
2 4 h5/h6 310/330 0,+4
3 6 h5/h6 310/330 0,+4
4 8 h5/h6 310/330 0,+4
5 10 h5/h6 310/330 0,+4
6 12 h5/h6 310/330 0,+4
7 14 h5/h6 310/330 0,+4
8 16 h5/h6 310/330 0,+4
9 18 h5/h6 310/330 0,+4
10 20 h5/h6 310/330 0,+4
11 22 h5/h6 310/330 0,+4
12 24 h5/h6 310/330 0,+4
13 25 h5/h6 310/330 0,+4
14 26 h5/h6 310/330 0,+4
15 28 h5/h6 310/330 0,+4
16 30 h5/h6 310/330 0,+4
17 32 h5/h6 310/330 0,+4


Polished Tungsten Carbide Rods and Cemented BlanksPolished Tungsten Carbide Rods and Cemented Blanks

Polished Tungsten Carbide Rods and Cemented Blanks
Corporate presence

The company is committed to the R&D,production and sales of ultra-fine tungsten carbide powder,ultra-grain cemented carbide bars and other related products.The company has always adhered to the business philosophy of "quality first,intergrity-based,innovation and farsightedness",and has become a well-known cemented carbide bar supplier in China.
The cemented carbide bars produced by Kanciron Industry have excellent performance and are mainly used for cutting,drilling and milling of metal materials,composite materials,superalloys and other materials.The products are widely used in metallurgy,machinery,automobile,electronics,medical and other related fields.In recent years,through continuous R&D and innovation,the company has developed a number of series of brands suitable for processing high hardness materials,which are widely welcomed by customers.

Polished Tungsten Carbide Rods and Cemented Blanks Polished Tungsten Carbide Rods and Cemented Blanks
Qualification certification
Polished Tungsten Carbide Rods and Cemented Blanks Polished Tungsten Carbide Rods and Cemented Blanks



FAQ


Q1.How is Quality Ensured?
All our processes strictly adhere to IS09001-2015 quality system. We have strict quality control from producing to delivery. Our company has strong technical support. We have cultivated a group of managers who are familiar with product quality, and good at modern concept of management.

Q2.How to Custom-made (OEM/ODM)?
If you have a new product drawing or a sample, please send to us. We can custom-made the hardware as you required. We will also provide our professional advice of the products to make the design to be more realistic and maximize the performance.

Q3.Can You Strictly Follow The Tolerance on the Drawing and Meet the High Precision?
Yes. We can provide high precision parts and make the parts as your drawing.

Q4. How Long does the Whole Procedure being Worked Out?
After you place an order, the production handling time is about 30 days. We need 15 days to prepare all the stuff then 15 days for manufacturing.

Q5.What's Your Delivery Time?
Standard parts: 7-15days
Non-standard parts: 15-25days

Q6. Is Free Shipping Possible?
We don't offer a free shipping service. We can have a discount if you buy a large quantity of products.
