Overview

Basic Info.

Model NO.
Customizable
Surface Treatment
Polish
Application
for Wire Drawing
Certification
ISO
Warranty
for Wire Drawing
Customized
Customized
Delivery
15 Days
Grade
Yg6/Yg6X/Yg8/Yg15
Inner
Mirror Polish
Wc+Co Powder
100% Virgin Material
Quality
High Level
Transport Package
Standard Export Packing
Specification
1.0-6.0mm
Trademark
Natu
Origin
China
HS Code
8207209000
Production Capacity
50000 Pieces/Year

Product Description

Product Description
Pressure Inserts Tungsten Cemented Carbide Wire Drawing Dies Demented Carbide Die Sets
Carbide drawing dies for wire drawing process are very important and fragile products used by various metal wire manufacturers to draw wire. The application range of drawing die is very wide, mainly used for straightening and difficult to process objects, such as rods, wires, wires, pipes, etc., generally suitable for steel, copper, tungsten, molybdenum and other metal and alloy materials wire drawing processing operations. Since the cost of the wire drawing mold can reach more than half of the drawing cost, how to reduce the consumption cost of the drawing mold and improve its service life is the primary problem that the wire production unit urgently needs to solve.

Tungsten Carbide Grade Density
g/cm³
Intension
MPa
Hardness
HRA
Application
YG6X 14.95 1800 91.5 Suitable for wire drawing die which diameter of inner bore is less than 6.00 mm.
YG6 14.95 1900 90.5 To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm
YG6 14.95 1900 90.5 To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm
YG8 14.8 2200 89.5 Used in the drawing die for non-ferrous metal bar and tube stock.
YG10 14.5 2400 88.5
YG15 14 2800 87 For steel bar and pipe with high shrinkage.

Pressure Inserts Tungsten Cemented Carbide Wire Drawing Dies Demented Carbide Die Sets

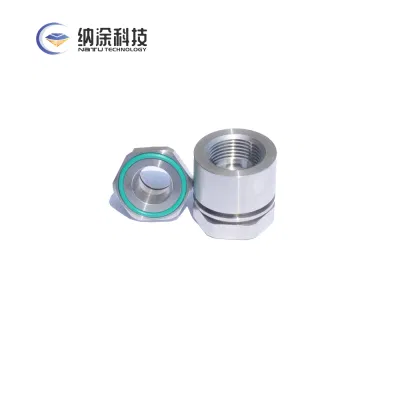

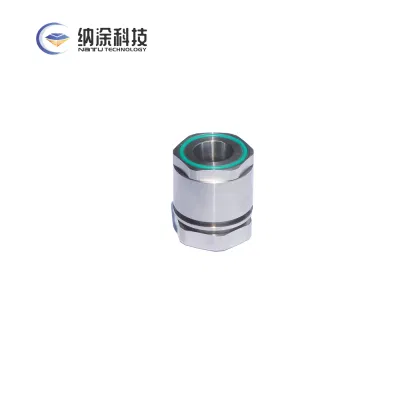

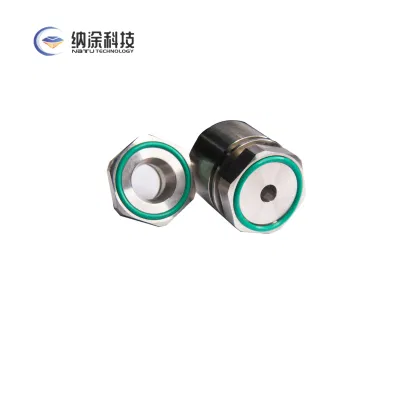

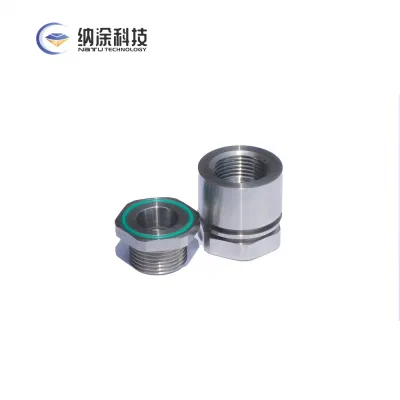

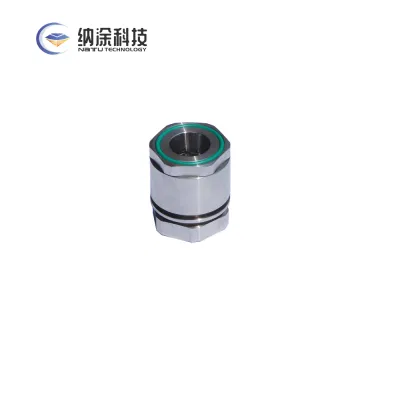

Detailed Images
Pressure Inserts Tungsten Cemented Carbide Wire Drawing Dies Demented Carbide Die Sets
Pressure Inserts tungsten cemented carbide wire drawing dies demented carbide Carbide die sets are used for wire drawing



Application
Carbide drawing dies for wire drawing process are very important and fragile products used by various metal wire manufacturers to draw wire. The application range of drawing die is very wide, mainly used for straightening and difficult to process objects, such as rods, wires, wires, pipes, etc., generally suitable for steel, copper, tungsten, molybdenum and other metal and alloy materials wire drawing processing operations. Since the cost of the wire drawing mold can reach more than half of the drawing cost, how to reduce the consumption cost of the drawing mold and improve its service life is the primary problem that the wire production unit urgently needs to solve.
