Basic Info.
Product Description
1.factory direct supply
2.factory wholesale price
3.stable quality
4.high drilling efficiency
5.good wear resistance
6.long service life

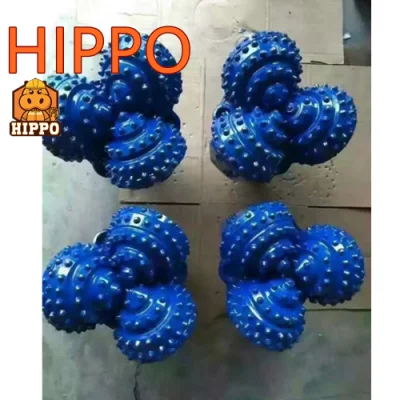

Tricone bit is an important tool for oil drilling. Its working performance directly affects drilling quality, drilling efficiency and drilling cost. Roller bit: It can be divided into single cone, double cone, tri cone and multi cone bits according to the number of cutter. Tricone bit is the most commonly used bit at home and abroad.Our products are mainly used in: oil drilling, water well, natural gas drilling, geothermal well drilling, air conditioning well drilling, coal mine exploration, mining, bridge construction, etc.We have a complete range of products including DTH bits, tricone bits, PDC drill bits, impregnated diamond coring bits, water well bits, oil bits, mine bits, drill pipes, drilling rigs and drilling tools. Welcome new and old customers to negotiate cooperation.
Cutting structure
Steel Tooth: Premium tungsten carbide hard facing on the surface, greatly enhance the wear resistance of the tooth.
Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and scientific selection of the inserts as per the different application and drilling process to achieve high efficient drilling production.
Gauge structure
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing structure
Journal bearing and roller bearing types are available to be chosen. Abrasion & seizure resistance, loading capacity, stability of the bearing are well improved, suitable for high speed rotary drilling.
Seals and lubrication
The advanced metal seals improve the reliability and stability of the bearing sealing. Pressure difference type compensating system assures a good greasing lubrication function.
IADC
vary from 114--637 applicable for the hole drilling in the upper section with good drillability.
IADC | WOB (KN/mm)(Bit Dia) | RPM(r/min) | Applicable Formations |
116 117 | 0.35-0.8 | 150-80 | Very soft formations with low compressive strength and high drillability,such as clay, mudstone,chalk,etc |
126 127 | 0.35-0.9 | 150-70 | Soft formations with low compressive strength and high drillability, such as mudstone,gypsum,salt, soft shale,soft limestone,etc |
136 137 | 0.35-1.0 | 120-60 | Soft to meidum soft formations with low compressive strength and high drillability, such as meidum soft shale,hard gypsum, meidum soft limestone,meidum soft sandstone soft formation with harder interbeds ,etc |
216 217 | 0.4-1.0 | 100-60 | Medium formations with high compressive strength,such as meidum soft shale,hard gypsum, meidum soft limestone,soft formation with harder interbeds ,etc |
246 247 | 0.4-1.0 | 80-50 | Meidum hard formations with high compressive strength,such as abrasiver shale,limestone,sandstone,dolomite,hard gypsum,marble,etc |
417 437 447 | 0.35-0.9 | 150-70 | Very soft formations with low compressive strength and high drillability, such as clay,mudstone, chalk,gypsum,salt, soft shale,soft limestone,etc |
517 527 | 0.35-1.0 | 140-60 | Soft formations with low compressive strength and high drillability, such as mudstone,gypsum,salt, soft shale,soft limestone,etc |
537 547 | 0.45-1.0 | 120-50 | Soft to medium formations with low compressive strength,such as meidum soft shale, meidum soft limestone,medium formation with harder and abrasiver interbeds ,etc |
617 627 | 0.45-1.1 | 90-50 | Medium hard formations with high compressive strength,such as hard shale,sandstone,limestone,dolomite,etc. |
637 | 0.5-1.2 | 80-40 | Hard formations with high compressive strength,such as limestone,dolomite, sandstone,hard gypsum,marble,etc |
Hunan Hippo Drilling Tool Co. LTD. specializing in the production of PDC drill bits, Dth drill bits, well drilling bits, tricone bits, oil drill, composite drill teeth and other products. covering an area of more than 2,000 square meters.The technical staff and advanced production equipment have rich experience and independent and design capabilities. We can accept OEM and ODM orders. It is a company integrating development, production and sales.
1.advance technology &equipment , international standard 2.high precision CNC machines , API&ISO certified.
3.More than 10 years producing experience
4.Skilled workers with rich experience
Products are widely used in well drilling, geological exploration, coal mines, mining stone, oil and gas mining, roads, railways,bridges, water conservancy and hydropower, engineering anchoring, construction and other industries.
Package And Shipping
FAQ 1. Are you a manufacturer? What can I buy from you?
We are a manufacturer and our factory is located in Changsha City, the capital of construction machinery in Hunan, China. We specialized in producing PDC bits, PDC coring bits, impregnated diamond core bits, tricone bits, DTH hammer bits , reaming shell , water well drilling rig , drill pipes, geological pipe casing etc.
2. Is the product quality and customer service good?
Adhering to the principles of customer first and quality first , we have already passed ISO 9001 certification and having rich experienced QC, so each order will be strictly inspected and tested before delivery.
3. What are our strengths?
We are an enterprise integrating independent research and development, production and processing, and sales, with professional technical personnel, strong production capacity, and 12 years of production and research experience. We have already established high-performance production lines for PDC rock bit, DTH hammer, cone bit and drill pipe , and can provide OEM and ODM services.
4. What services can we provide?
Acceptable delivery terms: EXW , FOB , C&F , CIF etc. Accepted payment currency: USD, AUD, CAD, SGD, EUR, GBP, HKD, JPY, RMB etc. Acceptable payment terms : TT, LC, OA , Western Union, Paypal, Credit card, collection , cash etc.
5. What is the mode of packaging and transportation ?
Sample orders can be acceptable , MOQ is one piece . The goods will be packed in wooden case or cardboard boxes or pallets. Delivery by express, sea, air, or land is available.
