Basic Info.
Model NO.
AAAAA-----CR-----006
Density
12.68-14.49g/cm3
Hardness
Hra79.2-87.2
Raw Material
Tungsten Carbide
Transport Package
Carton Box
Specification
Custom size
Trademark
Rydmet
Origin
China
Product Description

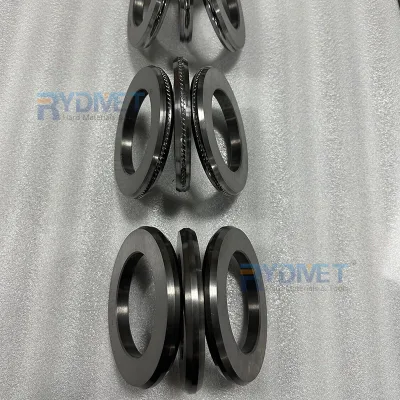

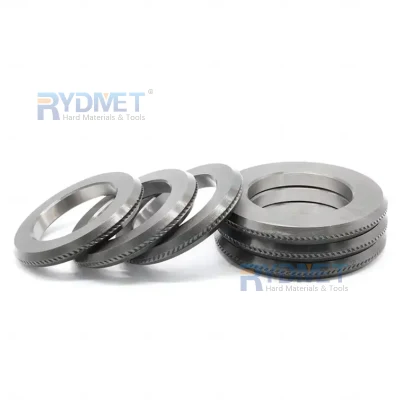

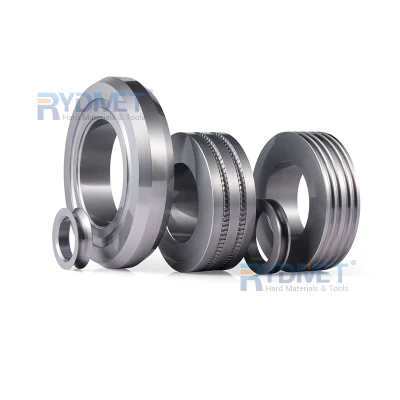

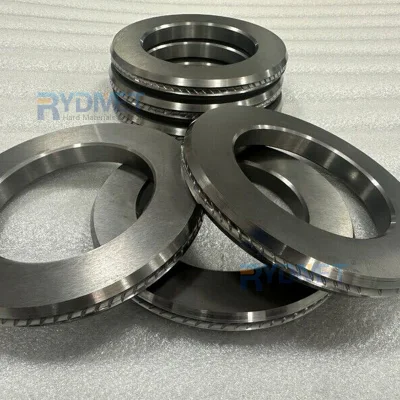

Rydmet Tungsten Carbide Cold Roll Ro/rt/ca Rolls For Ribbed Reinforcing Steel Rods :
Tungsten carbide rollers,also called as tungsten carbide wire mesh rolls,is applied in reinforcement wire cold rolling and forming mills in construction industry,thread steel bars are with the durability 10 to 20 times higher compared to common steel roller,and the surface quality and the steel bar size accuracy are greatly improved.
Rydmet tungsten carbide rollers are produced by isostatic suppressing and HIP sintering,which are the most advanced facilities to ensure the stable properties,which reduces the production cost and improves the rebars quality with high precision on dimension,clear ribs and beautiful surface.
| GRADE | Compoisitions | Density | HARDNESS | TRS | Compressive Strnegth | Thermal Conductivity | |
| WC% | Co+Ni+Others | g /cm³ | HRA | N /mm² | Mpa. | ||
| RR-06 | 92 | 6 | 14.9-15.1 | 88 | 2700 | 4200 | 0.22 |
| RR-08 | 92 | 8 | 14.6-14.8 | 87 | 2850 | 4100 | 0.22 |
| RR-105 | 89.5 | 10.5 | 14.4-14.6 | 86 | 2800 | 3900 | 0.21 |
| RR-135 | 86.5 | 13.5 | 14.1-14.3 | 85.5 | 2800 | 3800 | 0.21 |
| RR-15 | 85 | 15 | 13.9-14.2 | 84.5 | 3000 | 3500 | 0.20 |
| RR-18 | 82 | 18 | 13.5-13.8 | 83.5 | 2700 | 3400 | 0.19 |
| RR-20 | 80 | 20 | 13.45-13.65 | 82 | 2600 | 3300 | 0.19 |
| RR-23 | 77 | 23 | 13.1-13.4 | 80.5 | 2550 | 3200 | 0.18 |
| RR-25 | 75 | 25 | 12.9-13.2 | 79.5 | 2500 | 3150 | 0.17 |
| RR-28 | 72 | 28 | 12.7-13.0 | 78.5 | 2450 | 3000 | 0.17 |
| RR-30 | 70 | 30 | 12.5-12.8 | 77.5 | 2400 | 2900 | 0.16 |
| If necessary, we can adjust the production parameters of our hard alloy according to the actual working environment of the customer, so that the alloy can better meet the customer's requirements. ,,,. | |||||||
| Note: The above property data are typical. . | |||||||
| Specifications | External diameter (D) | Internal diameter (d) | Heigth (H) |
| RR-386243072 | 386 | 243 | 130 |
| RR-350255075 | 350 | 255 | 75 |
| RR-350220075 | 350 | 220 | 70 |
| RR-340166109 | 340 | 165 | 109 |
| RR-340165072 | 340 | 165 | 95 |
| RR-330190090 | 330 | 190 | 90 |
| RR-325210084 | 325 | 210 | 84 |
| RR-320165150 | 320 | 165 | 150 |
| RR-285190095 | 285 | 190 | 95 |
| RR-285160095 | 285 | 160 | 95 |
| RR-285190070 | 285 | 160 | 70 |
| RR-285160072 | 285 | 160 | 95 |
| RR-285160072 | 285 | 160 | 70 |
| RR-275175095 | 275 | 175 | 95 |
| RR-275170095 | 275 | 170 | 95 |
| RR-250140085 | 250 | 140 | 85 |
| RR-228135062 | 228.34 | 135 | 72 |
| RR-228130062 | 228.34 | 130 | 72 |
| RR-228126072 | 228.34 | 126 | 72 |
| RR-229130072 | 228.38 | 130 | 71.5 |
| RR-229130083 | 229.3 | 130 | 83 |
| RR-229126072 | 220.3 | 126 | 72 |
| RR-220128072 | 220 | 128 | 72 |
| RR-220131070 | 220 | 131 | 70 |
| RR-220110068 | 220 | 110 | 68 |
| RR-216160064 | 218 | 100 | 64 |
| RR-216160057 | 218 | 100 | 57 |
| RR-212120072 | 212 | 120 | 72 |
| RR-211120072 | 210.5 | 120.65 | 72 |
| RR-210120072 | 210 | 120 | 72 |
| RR-210160072 | 210 | 160 | 72 |
| RR-210135072 | 210 | 135 | 72 |
| RR-210130072 | 210 | 130 | 71.7 |
| RR-210120072 | 210 | 120 | 72 |
| RR-208126072 | 208 | 126 | 72 |
| RR-208155072 | 208 | 155 | 72 |
| RR-208128072 | 208 | 128 | 72 |
| RR-208126072 | 208 | 126 | 72 |
| RR-208126065 | 208 | 126 | 65 |
| RR-208125072 | 208 | 125 | 72 |
| RR-208110072 | 208 | 110 | 72 |
| RR-207120072 | 206.38 | 120.65 | 72 |
| RR-207120072 | 206.38 | 120 | 72 |
| RR-206120072 | 205 | 120.7 | 71.7 |
| RR-182087072 | 182 | 87.3 | 72 |
| RR-178095062 | 178 | 95 | 62 |
| RR-178095068 | 177.5 | 95 | 68 |
| RR-173128069 | 173 | 128 | 69 |
| RR-173095069 | 173 | 95 | 69 |
| RR-171095070 | 170.66 | 95 | 70 |
| RR-171095058 | 170.66 | 95 | 57.35 |
| RR-171094070 | 170.66 | 94 | 70 |
| RR-171094058 | 170.66 | 94 | 57.2 |
| RR-171095072 | 170.66 | 95 | 72 |
| RR-170091070 | 170 | 91 | 70 |
| RR-168095062 | 168 | 95 | 62 |
| RR-168095044 | 168 | 95 | 44 |
| RR-168095032 | 168 | 95 | 32 |
| RR-159126062 | 159 | 126 | 62 |
| RR-159092062 | 159 | 87.3 | 62 |
| RR-159087071 | 158.75 | 87.313 | 70.8 |
| RR-159087062 | 158.75 | 87.313 | 62 |
| RR-159087058 | 158.75 | 87.313 | 57.2 |
| RR-158087070 | 158.7 | 87.313 | 69.9 |
| RR-158094062 | 158 | 87.3 | 62 |
| RR-158087062 | 158 | 87.3 | 62 |
| RR-157087058 | 156.7 | 87.313 | 57.3 |
| RR-156094070 | 156 | 94 | 70 |
| RR-156094058 | 156 | 94 | 57.3 |
| RR-156092062 | 156 | 92 | 61.4 |
| RR-156087062 | 156 | 87.313 | 62 |
| RR-156087070 | 155.56 | 87.313 | 70 |
| RR-154087062 | 154 | 87.313 | 62 |
| RR-152087062 | 152 | 87.313 | 62 |
| RR-150087062 | 150 | 87.313 | 62 |
