Basic Info.
Product Description

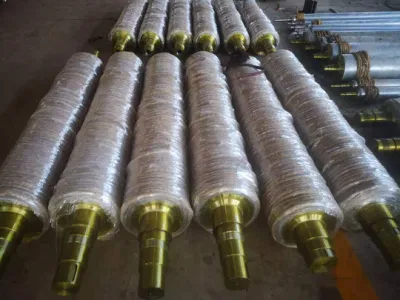

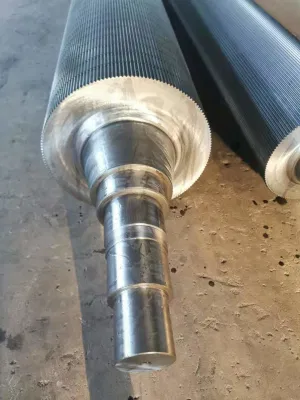

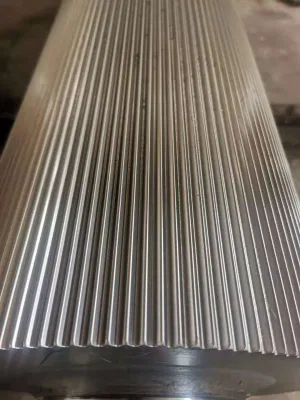

Single Facer Tungsten Carbide Coating Corrugated Roll for Corrugated Cardboard Line
| Type of corrugafion | A | C | BC | BC2 | B | D | DE | E | F |
| Shape of corrugafion | UV | UV | UV | UV | UV | UV | UV | UV | UV |
| Quantity of corrugafion | 34±2 | 38±2 40±2 | 44±2 | 48±2 | 50±2 | 66±6 | 75±3 | 96±4 | 124±10 |
| Hight of corrugafion | 4.6-4.9 | 3.6-3.9 | 3.0-3.4 | 2.8-3.2 | 2.6-2.9 | 1.9-2.1 | 1.5-1.9 | 1.1-1.8 | 0.7-0.8 |
| Rate of corrugafion | 1.51-1.59 | 1.44-1.51 | 1.42-1.49 | 1.40-1.45 | 1.36-1.42 | 1.40-1.41 | 1.35-1.4 | 1.29-1.39 | 1.22-1.26 |
2.Adopt high precision computer control professional grinding machine.
3.It is treated by special corrugated roll surface treated technology. The hardness is very high.
4. High-speed corrugated roll with big diameter. The maximum working speed is 300m/min.
5. Gear type: UV,V. Flute type: A, B, C, BC, D, E, F optional.
6. Fingerless suction and inner suction are optional.
7. We are engaging in design ,repair, manufacture all kinds of corrugating roll.
DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD. is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
1. Q: Are you a manufacturer, trading company or a third party?
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
