Product Description
Drill rod is very important tool for core drilling. In order to obtain the core sample in an efficient way, high quality drill rod plays a very important role.E.G provide high quality wireline drill rods to satisfy the requirements of various working condition. All the wireline drill rods provided by our company are manufactured by using the best quality heat-treated seamless steel tubes and strictly following the corresponding standard.
Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.

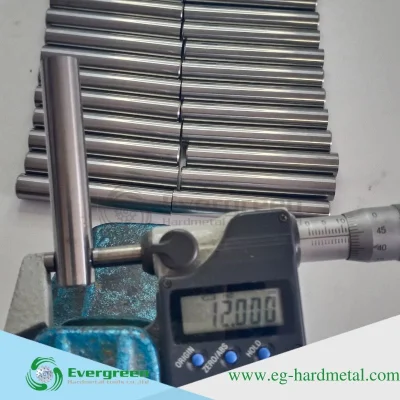

Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most popular.
We provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4. Standard length is 100mm and 330mm,also can be supplied according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.
| EG GRADE | ISO CODE | GRAIN SIZE(μm) | DENSITY(G/cm³) | HARDNESS | TRS(N/MM) |
| EG06 | K05 | 0.5 | 14.8 | 94.3 | 3800 |
| EG08 | K10 | 0.6 | 14.75 | 92.2 | 3900 |
| YL10.2 | K20 | 0.6 | 14.5 | 91.8 | 4000 |
| EG12 | K30 | 0.5 | 14.1 | 92.5 | 4000 |
| YG15X | K40 | 0.6 | 14.0 | 89.5 | 4000 |
Dimension and Tolerance
| Dimension(mm) | Tolerance of diameter(mm) | Tolerance of length(mm) |
| Min BL-Φ3.0×330 | +0.20/+0.45 | -0/+5.0 |
Max BL-Φ50.0×330 | +0.20/+0.45 | -0/+5.0 |
