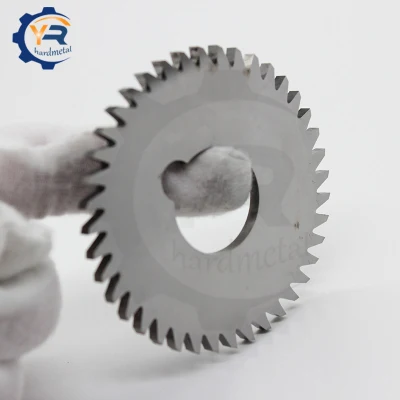

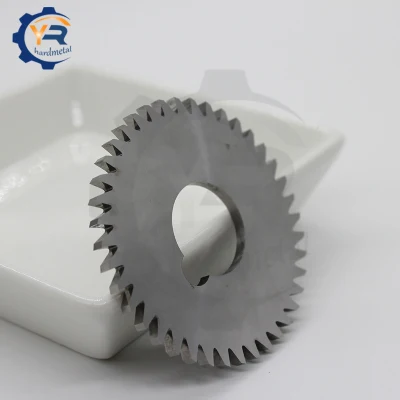

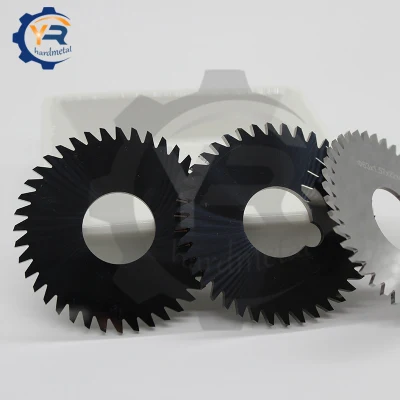

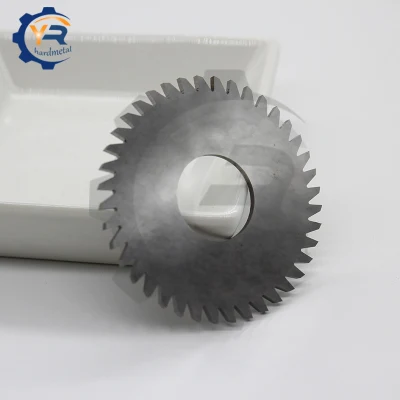

Special Alloy Cemented Carbide Saw Blade for Aluminum

74x1.57x38x60T zhuzhou Manufacturer solid Cutting tungsten Carbide Tip Circular Saw Blade

Our circular saw blades have the following advantages:

1. It is made of high-quality tungsten steel with high hardness, low cutting noise, long service life and hard to wear;

2. Blade Serration, expansion groove design, high cutting accuracy;

3. Direct supply from the factory, fast delivery and guaranteed delivery time;

4. The model is complete, the technical innovation ability is good, and we accept the processing of drawings and samples.

Dimensions:

Outer diameter: φ 20-400mm, aperture: φ 5-40mm, thickness: 0.2-7.0mm, tooth type: toothless, coarse tooth, middle tooth, fine tooth opening mode: milling, grinding, non grinding, full grinding tooth shape: sharp tooth, circular arc tooth, staggered tooth (left and right teeth, high and low teeth), R-shaped tooth, angle tooth, opposite tooth surface coating: natural color, various coatings. Material: hard alloy (tungsten steel K10, K15) forged high-performance high-speed steel M42, W18Cr4V (w18), 6542 (M2), W9Mo3Cr4V (w9), etc

Product use:

It is mainly used for milling, trenching, sawing, cutting and blanking of ordinary steel, stainless steel, brass, aluminum alloy, plastic, titanium alloy, super hard cast iron, high nickel white copper, heat-resistant alloy, structural steel, alloy steel, cast steel, high manganese steel and other materials.

Special attention: receive non-standard customization, special customization. The picture is for reference only. According to the needs of customers, we can customize the different treatment of the required outer diameter, inner hole, thickness and number of teeth.

Precautions for use of carbide circular saw blade

1. In order to ensure the long service life of the newly installed saw blade during the trial operation, it is better to have a full running in process between the circular saw and the new saw blade (replaced or reground saw blade). It is necessary to reduce the feeding speed 10 minutes before the cutting of the saw blade. After 10 minutes, the normal feeding speed can be restored.

2. The feeding speed and cutting speed depend on the section and toughness of the material to be cut. For the materials with high toughness and difficult cutting, the corresponding reduction of feeding is very conducive to improving the service life of the saw blade. When the material section is small, the machine speed can be appropriately increased.

3. If the feed speed is increased when cutting the same material, the corresponding saw blade with coarse teeth shall be selected.

4. Because effective cutting angle and effective pitch are needed at any time when cutting materials, it is helpful to regrind the saw blade correctly and timely, so as to maximize the efficiency of the saw blade.

5. By observing the sawdust produced by the saw blade, you can judge whether the current saw blade cutting is light and fast, and whether the cutting is smooth.

1, Are you a trade company or a manufacturer?
Has been a professional manufacturer for over 15 years to undertake design and processing of all types of tungsten carbide productions service and technical support for customers.

2,Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base tungsten carbide products.

3,If I need a sample for pretest, do you sale sample for this inquiry?
Yes,we can sale sample for pretest. If you need this service,please contact us.

4,Can you produce the products according to my own drawing?
Yes, we can do OEM according to your requirement.

5,Are the products high quality?
Yes. All order will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

6,How long will it take to execute my order?
For the stock items, we can arrange the shipment within 3-5 days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.

7,How can I know how my order is being done?
We will inspect and test all merchandise in case of damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.

8,Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you a re not pleased with TDOER 's quality or service. For the overseas orders, if there is quality problem, please k ind to provide the pictures to show the problems by e-mail . We will provide the replacements to you at our cost according to actual conditions.
