Basic Info.
Model NO.
L5.0*T3.0*W2.5mm
PCD
100mm
ET
15mm
Hole
5
Grade
Yg6X
Density
14.9g/cm3
Hardenss
92.5hra
T.R.S
2800MPa
Length
5.0mm
Thickness
3.0mm
Width
2.5mm
Transport Package
Bottled and Carton
Specification
L5.0*T3.0*W2.5mm
Trademark
ZZUP
Origin
Zhuzhou Hunan
HS Code
8209002900
Production Capacity
10000000PCS/Month
Product Description

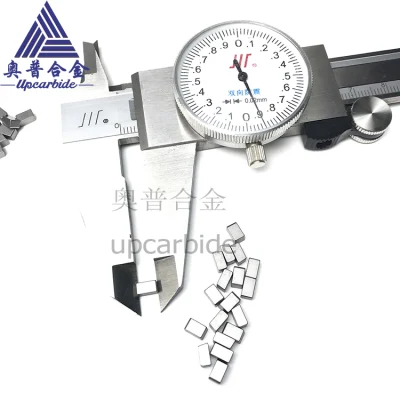

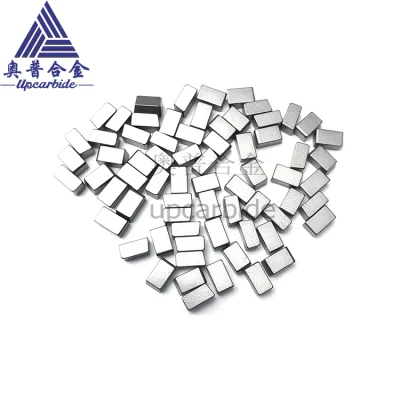

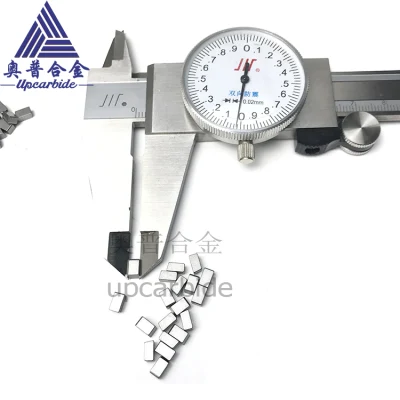

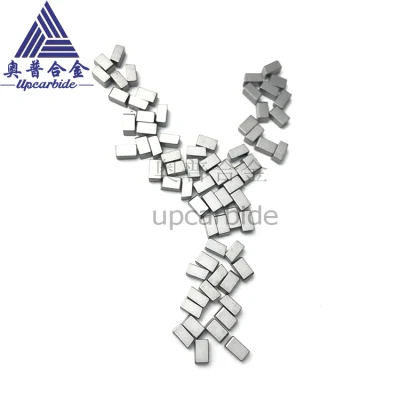

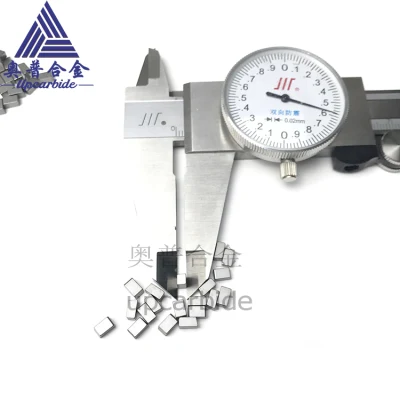

super fine L5.0*T3.0*W2.5mm 92.5HRa tungsten carbide saw tips
super fine L5.0*T3.0*W2.5mm 92.5HRa tungsten carbide saw tips
Products description
1. Grades: YG6X,YG6,YG8,YG8X,JX10,JX15,JX35,JX40 etc
2. the saw tips include F series, US Standard and European Standard.
3. All saw tips are HIP-Sintered, to make sure high quality, with automatic pressing to make sure accurate size, tumble and nickel covered to make sure good brazing performance.
4. Our brand has gain reputation from clients in Europe, USA, Asia, etc.
5. Our grades cover all ISO range, suitable to cut grass, hard wood, recycle wood, metal, plastic, PVC, MDF,
Melamine board, plywood, etc.
Products Show
Grade specification
Drawing and sizes
Packing details
Shipping ways
Production process
super fine L5.0*T3.0*W2.5mm 92.5HRa tungsten carbide saw tips
Products description
1. Grades: YG6X,YG6,YG8,YG8X,JX10,JX15,JX35,JX40 etc
2. the saw tips include F series, US Standard and European Standard.
3. All saw tips are HIP-Sintered, to make sure high quality, with automatic pressing to make sure accurate size, tumble and nickel covered to make sure good brazing performance.
4. Our brand has gain reputation from clients in Europe, USA, Asia, etc.
5. Our grades cover all ISO range, suitable to cut grass, hard wood, recycle wood, metal, plastic, PVC, MDF,
Melamine board, plywood, etc.
Products Show
Grade specification
| Grade | Density (g/cm³) | Hardnes (HRA) | T.R.S(Mpa) | ISO Code | Application recommended | Proposal for welding | |
| YG6 | 14.6~15.0 | ≥90.0 | ≥1800 | K20 | Applying to the cutting of ordinary wood | For resistance welding, and the temperature should not be too high | |
| YG8 | 14.6~14.9 | ≥89.5 | ≥1900 | K30 | For the cutting of ordinary wood & aluminum material | For resistance welding, and the temperature should not be too high | |
| JX5 | 14.6~15.0 | ≥90.5 | ≥1900 | K10 | Applies to the cutting of hard wood,recyling wood and aluminum alloy material | For resistance welding,and the temperature should not be too high | |
| JX9 | 14.5~14.9 | ≥90.5 | ≥2000 | K10 | Applying to the cutting of aluminum copper and lead,non-ferrous alloy material | Recommend the high-frequency welding | |
| YG6X | 14.7~15.0 | ≥91.5 | ≥1800 | K10 | Applying to the cutting of the timber | Recommend the high-frequency welding | |
| JX10 | 14.8~15.1 | ≥93.3 | ≥2500 | K05 | Applying to the cutting of hard wood ,also soft metal | Recommend the high-frequency welding | |
| JX15 | 14.6~15.0 | ≥92.5 | ≥2400 | K05 | Applying to the cutting of hardwood and aluminum alloy | Recommend the high-frequency welding | |
| JX35 | 14.9~15.2 | ≥93.5 | 2000 | K10 | Applying to the cutting of plywood mdf board and sandwich board | Recommend the high-frequency welding | |
| JX40 | 12.8~13.2 | ≥90.5 | ≥2000 | P40 | Applying to the cutting of seel | Recommend the high-frequency welding | |
Drawing and sizes
| TYPE | Dimension(mm) | |||||
| L | T | W | α° | β° | R | |
| JX4125 | 4.2 | 1.5 | 2.7 | 30 | 20 | 0.5 |
| JX4514 | 4.5 | 1.4 | 3.0 | 28 | 15 | 0.6 |
| JX4515 | 4.5 | 1.5 | 3.5 | 30 | 27 | 0.5 |
| JX4615 | 4.6 | 1.5 | 3.6 | 30 | 26.6 | 0.5 |
| JX4713 | 4.7 | 1.3 | 3.4 | 33 | - | 0.5 |
| JX4715 | 4.7 | 1.5 | 3.7 | 30 | 30 | 0.5 |
| JX4816 | 4.8 | 1.6 | 3.5 | 30 | 17 | 0.5 |
| JX5014 | 5.0 | 1.4 | 3.5 | 30 | 15 | 0.5 |
| JX5014A | 5.0 | 1.4 | 3.5 | 20 | 25 | 0.5 |
| JX5015 | 5.0 | 1.5 | 3.5 | 20 | 20 | 0.5 |
| JX5015A | 5.0 | 1.5 | 4.0 | 30 | 26.5 | 0.5 |
| JX5015B | 5.0 | 1.5 | 4.5 | 20 | 45 | 0.5 |
| JX5015C | 5.0 | 1.5 | 3.6 | 30 | 0.5×45° | - |
| JX5016 | 5.0 | 1.6 | 4.0 | 30 | 22 | 0.5×45° |
| JX5016A | 5.03 | 1.63 | 4.5 | 25 | 0.7×45° | 0.5 |
| JX5016B | 5.0 | 1.6 | 3.6 | 20 | 20 | 0.6 |
| JX5017 | 5.0 | 1.7 | 4.0 | 20 | 17.1 | 0.5 |
| JX5022 | 5.0 | 2.2 | 4.3 | 30 | 15 | 0.5 |
| JX5025 | 5.0 | 2.5 | 3.4 | 25 | 45 | 0.5 |
| JX5115 | 5.1 | 1.5 | 3.7 | 28 | 0.5×45° | 0.2 |
| JX5116 | 5.1 | 1.6 | 2.5 | 30 | 22 | 0.2 |
| JX5216 | 5.2 | 1.6 | 3.8 | 25 | 20 | 0.5 |
| JX5218 | 5.2 | 1.8 | 4.0 | 18 | 40 | 0.5 |
| JX5220 | 5.2 | 2.0 | 3.5 | 30 | 15 | 0.5 |
| JX5315 | 5.3 | 1.5 | 3.8 | 20 | 20 | 0.5 |
| JX53155 | 5.3 | 1.55 | 4.3 | 28 | 15 | 0.5 |
| JX5315A | 5.3 | 1.5 | 4.0 | 30 | 20 | 0.5 |
| ... | … | … | … | … | … | … |
