Basic Info.
Model NO.
TDP0/TDP1.5/TDP5/TDP6/ZP mold
Driving Motor Type
Hybrid
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
Customization of Processing
Yes
Type of Process Combination
Progressive Die/Continuous Die
Range of Application
Food, Medical Care
QS(Quality System)
ISO9001
Object of Action
Metal
Main Processing Equipment
Tabletting
Art.No.(Article Number)
Tdp0/Tdp1.5/Tdp5/Tdp6/Zp
Number of Processing Equipment
50
Material of Mold
Ball Bearing Steels
Whether The Pattern Can Be Customized
Yes
Whether The Size Can Be Customized
Yes
Cross Boundary Parcel Weight
Kg
Transport Package
Box-Packed
Specification
10*8*10
Trademark
xushengjixie
Origin
Hunan, China
HS Code
7326191000
Production Capacity
100000/Year
Product Description

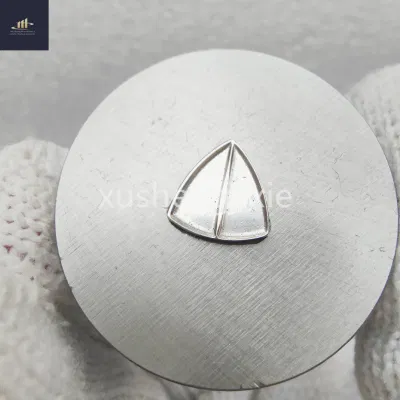

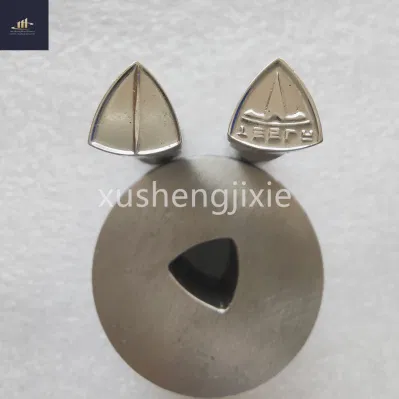

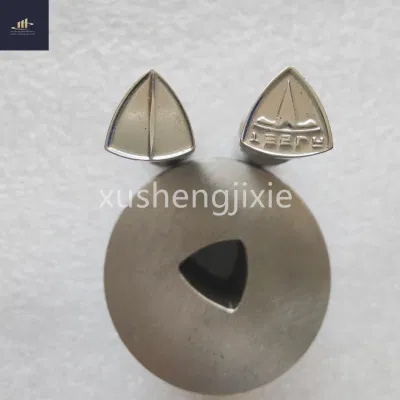

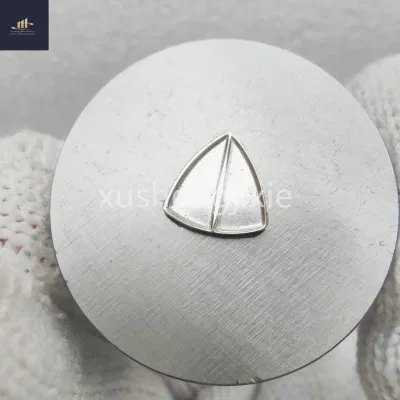

Tablet press die engraving die | | can lettering punch is an important part of tablet press, in the industry, also known as tablet press die. The die of a tablet pressing machine is divided into three parts: upper punching die, middle punching die and lower punching die. We manufacture round, special type, rotary type, single type, etc., in the material, heat treatment, grinding, polishing and other processes contain many years of technical experience. Especially the selection of material, especially the selection of imported steel to improve the quality of the mold. In the technical specification, always adhere to the manufacturing standards. The mould assembly in the tablet pressing machine is suitable for pressing Chinese and Western medicine tablets, nutrient tablets, lozenges, spirulina tablets, milk tablets, vitamin C effervescent tablets, effervescent tablets, flavoring blocks, mothballs (sanitary balls), aromatic balls, disinfection tablets, fertilizer tablets, bath salt balls, button batteries, electronic components, metallurgical powder ceramic granules.
Tablet press die engraving die | | can lettering punch specifications:
Ø 5mm and above deep arc surface
Ø 5mm or above shallow arc surface
Ø 5mm or higher hypotenuse plane
circular
Special shape (triangle, oval, etc.)
Tablet press die engraving die | | can lettering punch features:
Made of carbon steel, bearing steel, chromium 12 material
Digital machining center finishing manufacturing, in line with IPT standards
Corrosion resistance, impact resistance, wear resistance, high temperature resistance, long life
100% interchangeability (no matter round or special mold)
Accuracy: Up to level 2
The surface roughness of the die surface is up to Ra 0.1, and the remaining mating surface is up to Ra 0.4
Hardness: die HRC58+2, middle die HRC60+2
Tablet press die engraving die | | can lettering punch is widely used in:
ZP series tablet press
THP series tablet press
ZPW series tablet press
TDP series tablet press
DP series tablet press
Frequently Asked Questions
1. What about the quality of your tablet press?
Our factory has more than 10 years of machining experience; All our machines have obtained ISO9001, SGS and CE certificates. Has been exported to many countries and regions; We have gained a good reputation from our customers.
2. What about the price of your tablet press?
We always regard quality as the life of the factory, no matter the price is good or bad for us. Quality first, on the basis of first-class quality, to ensure that you get a reasonable price!
3. How can we guarantee the quality of the machine after we place the order?
Before delivery, we will send you the pictures and video of the machine, or you can come to us for quality inspection, or you can have the quality inspection conducted by the third party testing agency you contact.
4. Are your machines delivered safely? Our machines and molds are exported to countries all over the world, especially to European and American countries, most of our old customers. Our delivery experience is rich, all customers can safely receive our products. 5. Learn more about our company
